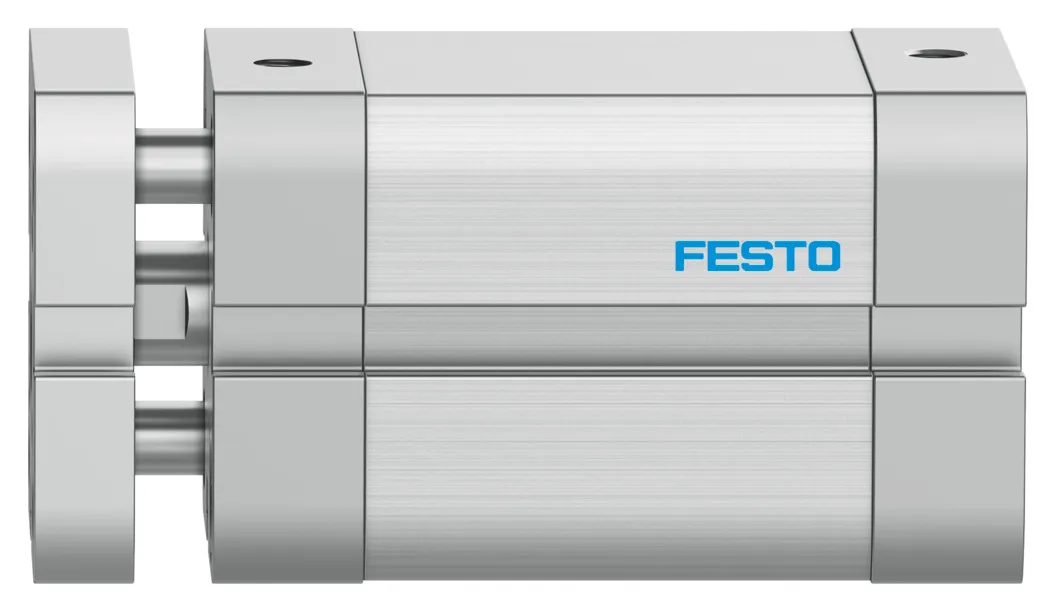

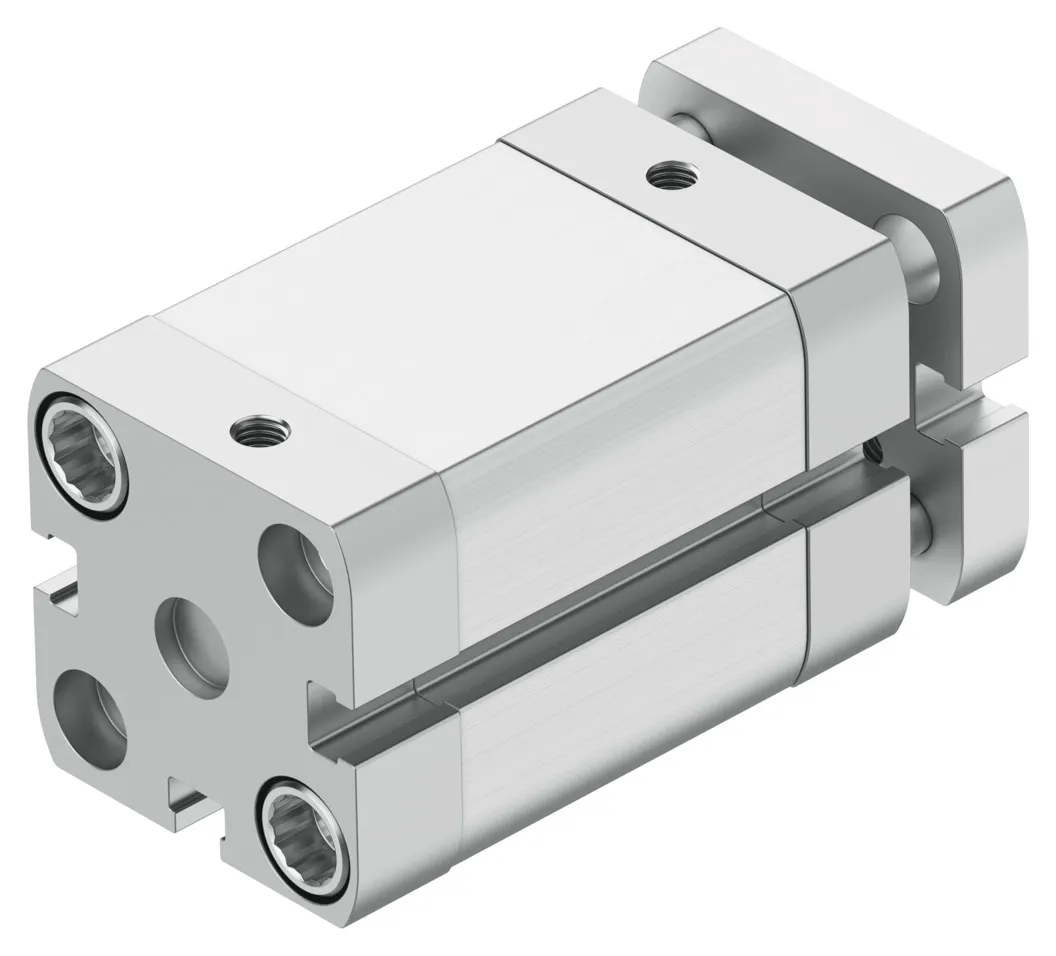

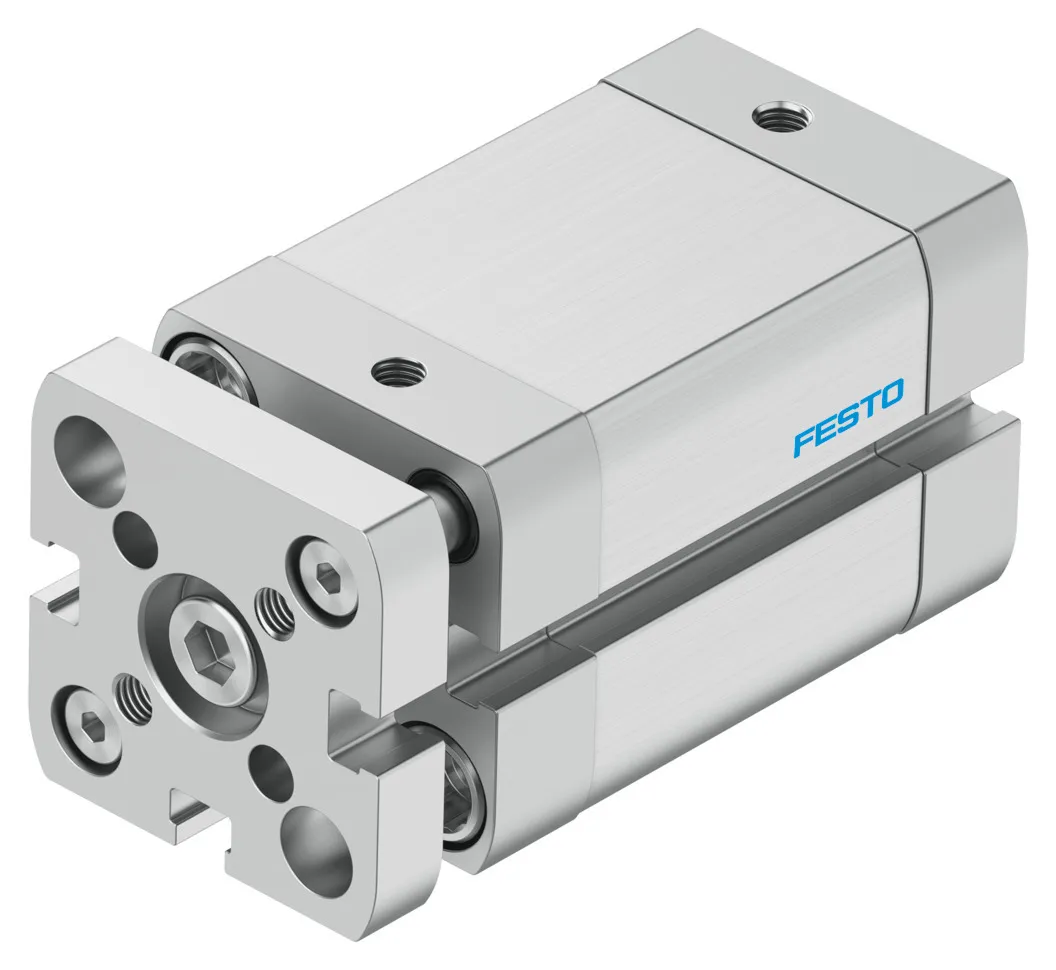

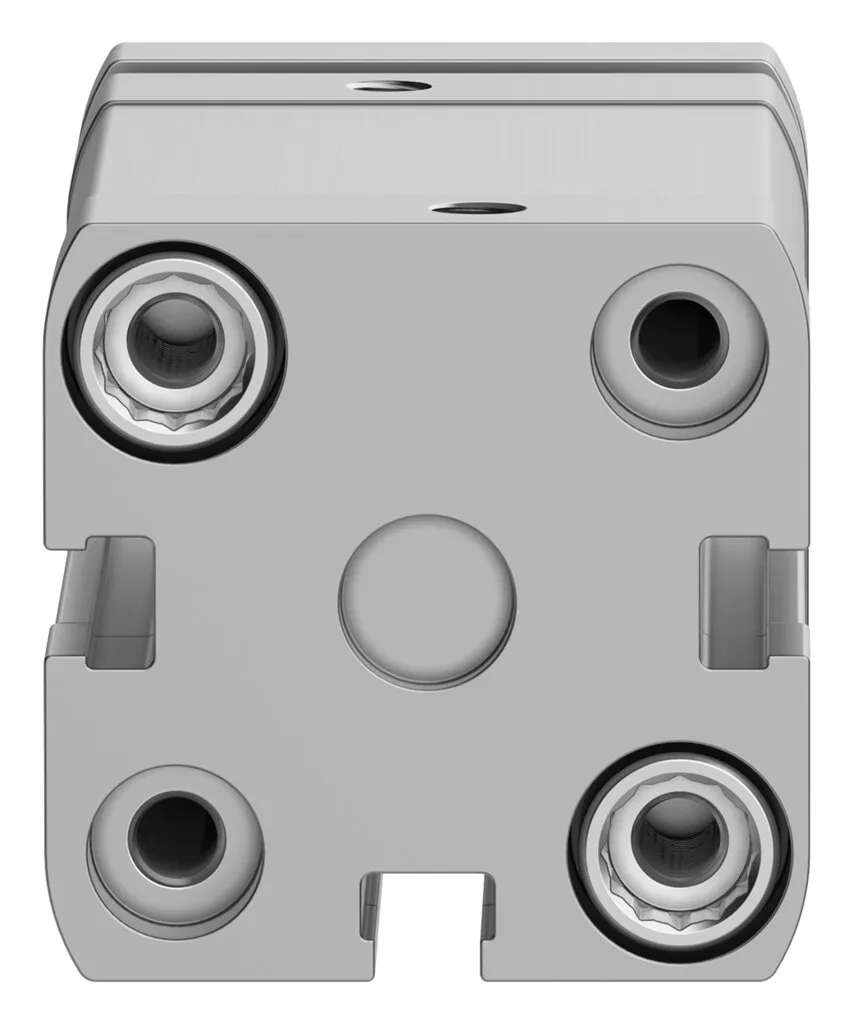

Festo ADNGF-25-25-PPS-A
ISO 21287 , Piston rod secured against rotation by a guide rod and yoke plate , Plain bearing , Optionally with through piston rod , Higher load capacity thanks to guide rod and yoke plate , For posit…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
ISO 21287 , Piston rod secured against rotation by a guide rod and yoke plate , Plain bearing , Optionally with through piston rod , Higher load capacity thanks to guide rod and yoke plate , For position sensing
Specification
| Stroke |
25 mm |
|---|---|
| Piston diameter |
25 mm |
| Based on standard |
ISO 21287 |
| Cushioning |
Self-adjusting pneumatic end-position cushioning |
| Mounting position |
optional |
| Design |
Piston, Piston rod, Profile barrel |
| Position detection |
Via proximity switch |
| Protection against torque/guide |
Guide rod with yoke |
| Operating pressure |
1.9, 10 bar |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 – Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Ambient temperature |
-20, 80 °C |
| Impact energy in end positions |
0.3 J |
| Cushioning length |
3.5 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
247 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
295 N |
| Moving mass |
122 g |
| Product weight |
294 g |
| Pneumatic connection |
M5 |
| Note on materials |
RoHS-compliant |
| Material collar screws |
Steel |
| Material cover |
Anodised wrought aluminium alloy |
| Material seals |
TPE-U(PUR) |
| Material end plate |
Anodised wrought aluminium alloy |
| Material piston rod |
High-alloy steel |
| Material cylinder barrel |
Smooth-anodised wrought aluminium alloy |
