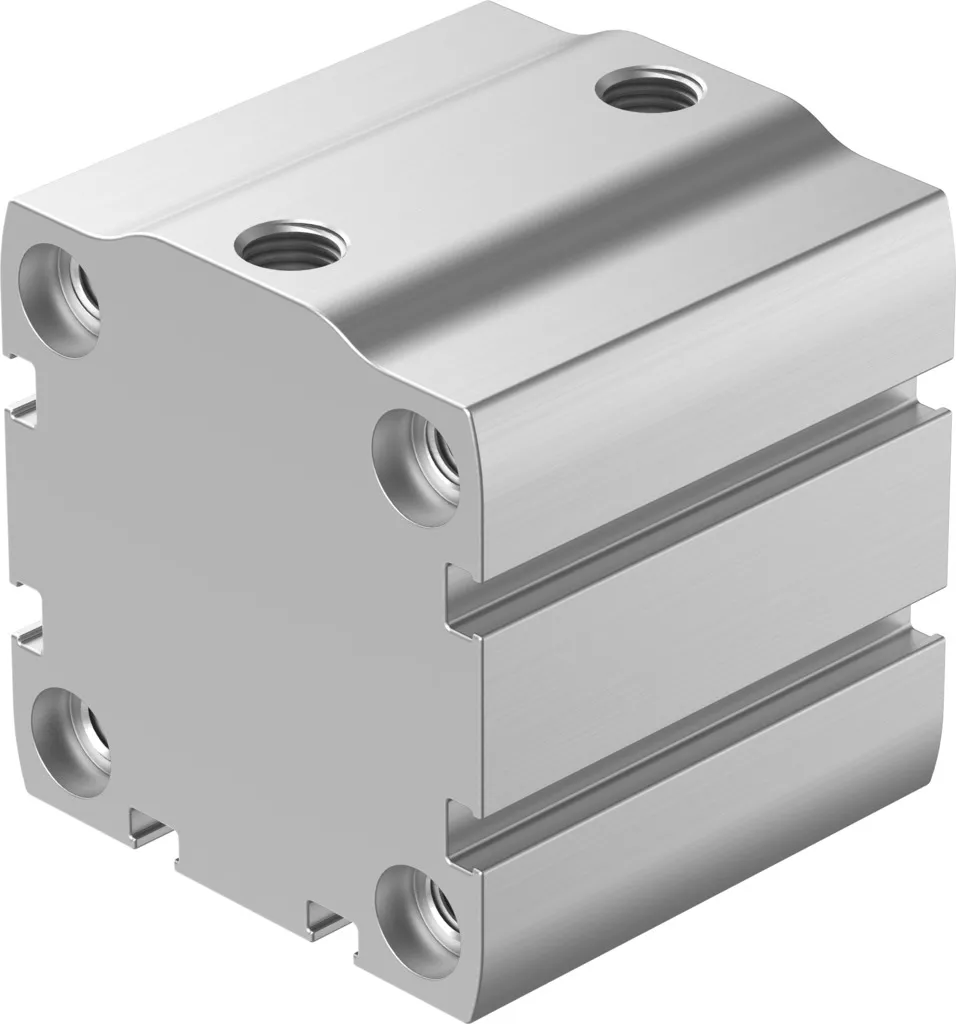

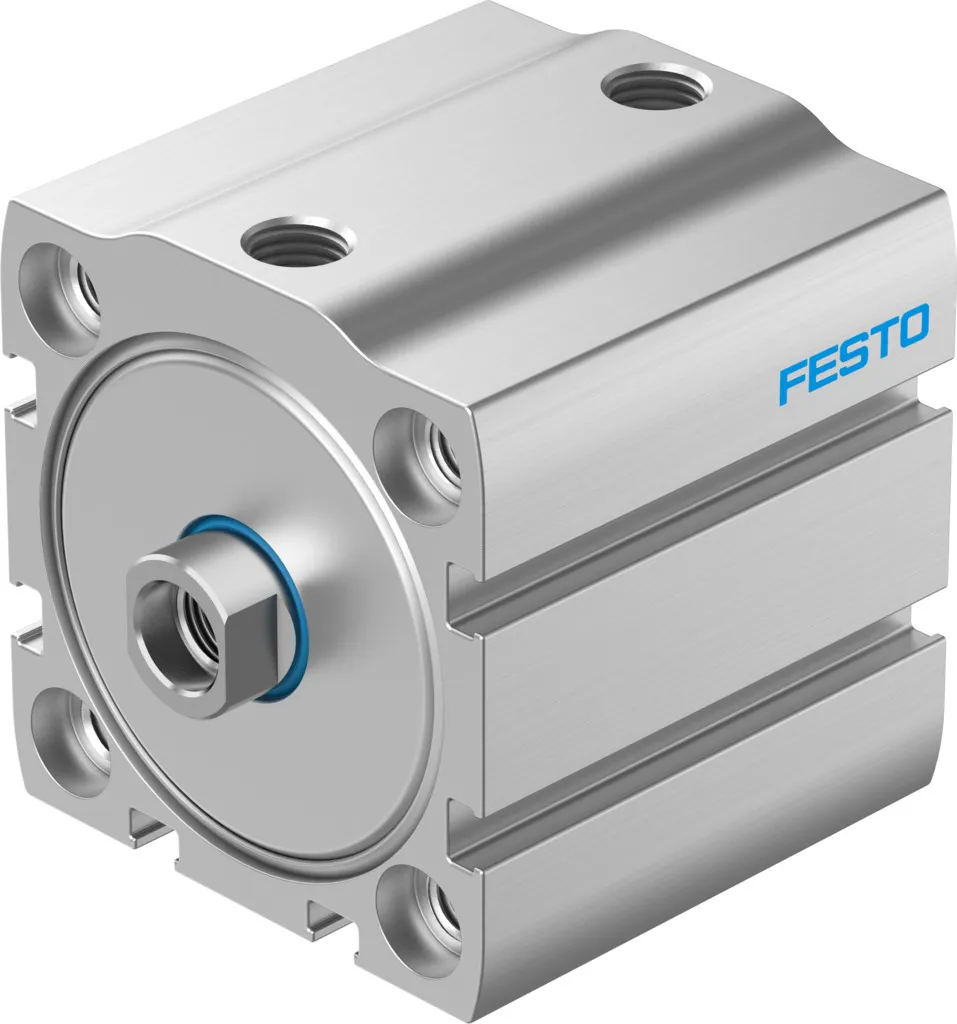

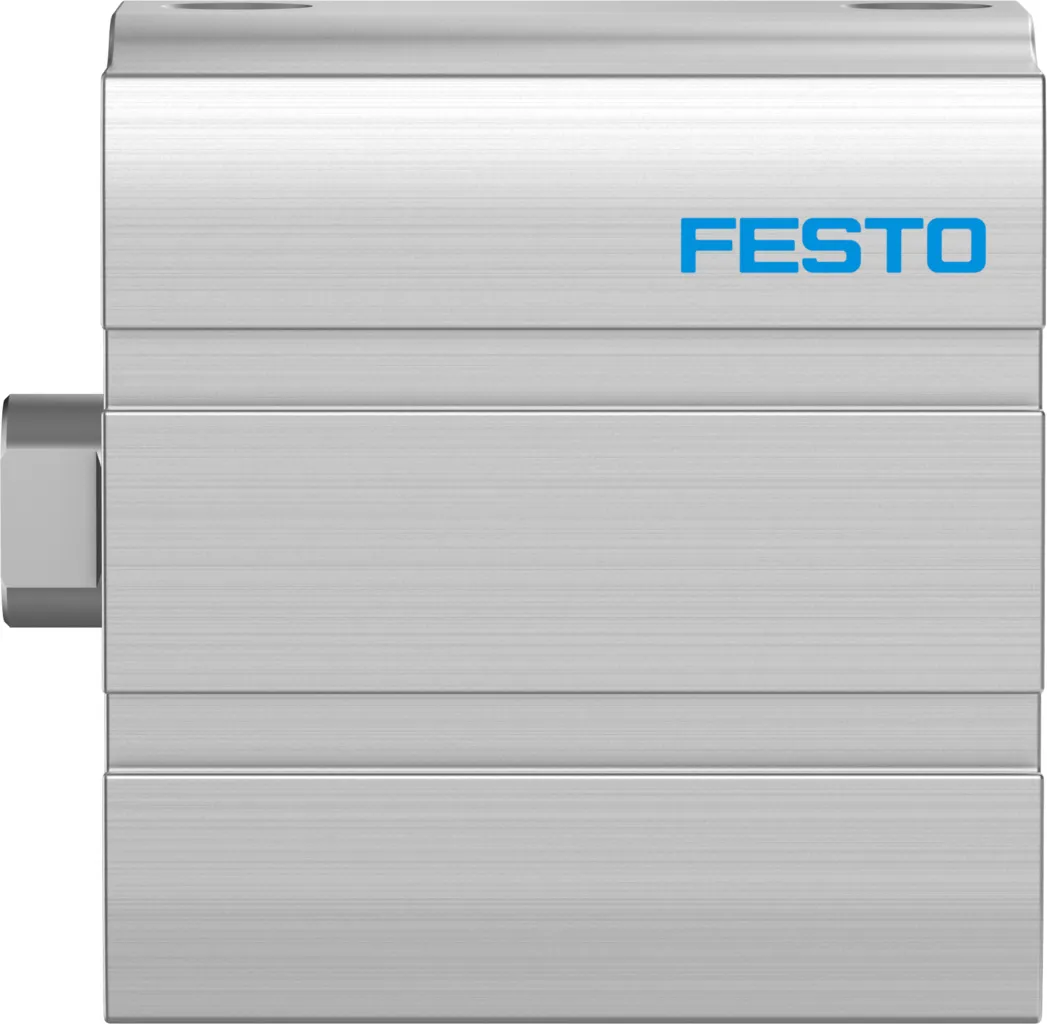

Festo ADN-S-50-35-I-P-A-F1A
Minimal installation space , Very lightweight , Ideal for small movements , Piston rod with female or male thread , For position sensing , Variants recommended for production systems for manufacturing…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Minimal installation space , Very lightweight , Ideal for small movements , Piston rod with female or male thread , For position sensing , Variants recommended for production systems for manufacturing lithium-ion batteries , Sustainable in production thanks to reduced use of materials
Specification
| Stroke |
35 mm |
|---|---|
| Piston diameter |
50 mm |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Mounting position |
optional |
| Mode of operation |
Double-acting |
| Piston-rod end |
Female thread |
| Design |
Piston, Piston rod |
| Position detection |
Via proximity switch |
| Symbol |
00991217 |
| Variants |
Piston rod at one end |
| Operating pressure |
5.8, 145 psi |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 – Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries |
Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom class |
Class 5 according to ISO 14644-1 |
| Ambient temperature |
80 °C |
| Impact energy in end positions |
1 J |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
1057 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
1178 N |
| Moving mass for 0 mm stroke |
104 g |
| Additional moving mass per 10 mm stroke |
16 g |
| Basic weight for 0 mm stroke |
324 g |
| Additional weight per 10 mm stroke |
63 g |
| Type of mounting |
With through-hole, Via female thread |
| Pneumatic connection |
G1/8 |
| Note on materials |
RoHS-compliant |
| Material cover |
Anodised wrought aluminium alloy |
| Material dynamic seals |
TPE-U(PU) |
| Material housing |
Anodised wrought aluminium alloy |
| Material piston rod |
High-alloy stainless steel |
