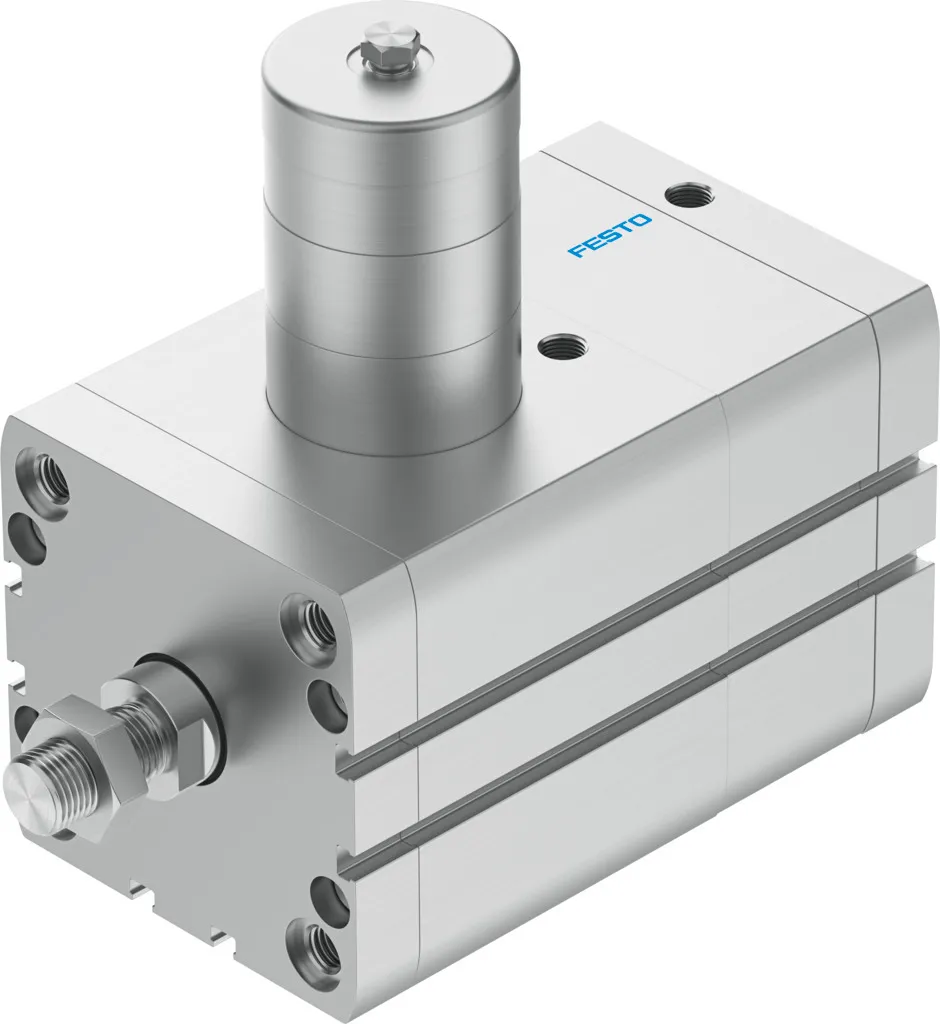

Festo ADN-80- -KP-
The piston rod can be held in any position , The piston rod can also be held for long periods with alternating loads, fluctuating operation pressure or loss of pressure , Mounting hole pattern to ISO…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The piston rod can be held in any position , The piston rod can also be held for long periods with alternating loads, fluctuating operation pressure or loss of pressure , Mounting hole pattern to ISO 21287 , Piston rod with female or male thread , For position sensing
Specification
| Stroke |
10, 500 mm |
|---|---|
| Piston diameter |
80 mm |
| Piston rod thread |
M16x1.5 |
| Based on standard |
ISO 21287 |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Mounting position |
optional |
| Type of clamping with direction of action |
on both sides |
| Piston-rod end |
Female thread |
| Design |
Piston, Piston rod, Cylinder barrel |
| Position detection |
Via proximity switch |

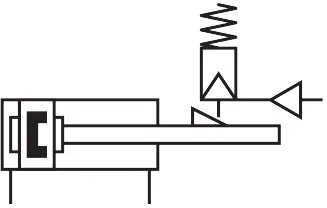

| Symbol |
00991260 |
| Variants |
Extended male piston rod thread, Custom thread on the piston rod, Extended piston rod, Laser etched rating plate |
| Operating pressure |
1.5, 10 bar |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 – Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Ambient temperature |
-10, 80 °C |
| Impact energy in end positions |
1.8 J |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
2721 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
3016 N |
| Moving mass for 0 mm stroke |
755 g |
| Additional moving mass per 10 mm stroke |
39 g |
| Basic weight for 0 mm stroke |
3973 g |
| Additional weight per 10 mm stroke |
93 g |
| Type of mounting |
Via female thread, With accessories |
| Pneumatic connection |
G1/8 |
| Note on materials |
RoHS-compliant |
| Material cover |
Wrought aluminium alloy, Anodised |
| Material piston rod |
High-alloy steel |
| Material cylinder barrel |
Wrought aluminium alloy, Smooth anodised |
