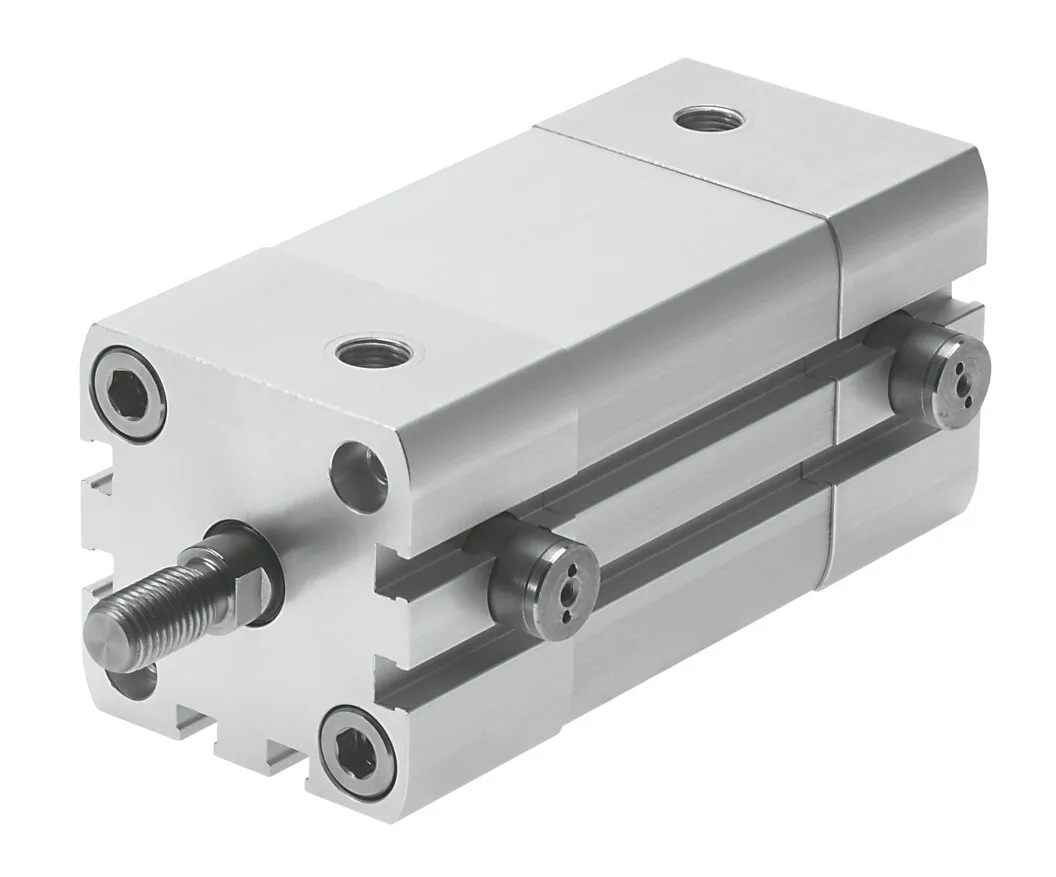

Festo ADN-50- -EL-
ISO 21287 , With end-position locking at both ends, front or rear , Piston rod with female or male thread , For position sensing
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
ISO 21287 , With end-position locking at both ends, front or rear , Piston rod with female or male thread , For position sensing
Specification
| Stroke | 10, 400 mm |
|---|---|
| Piston diameter | 50 mm |
| Piston rod thread | M12x1.25 |
| Based on standard | ISO 21287 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Piston-rod end | Female thread |
| Design | Piston, Piston rod, Cylinder barrel |
| Position detection | Via proximity switch |
| Variants | Extended male piston rod thread, Custom thread on the piston rod, Extended piston rod, Laser etched rating plate |
| Operating pressure | 1.5, 10 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20, 80 °C |
| Impact energy in end positions | 1 J |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 1057 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 1178 N |
| Additional moving mass per 10 mm stroke | 16 g |
| Type of mounting | Via female thread, With accessories |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy, Anodised |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | Wrought aluminium alloy, Smooth anodised |
