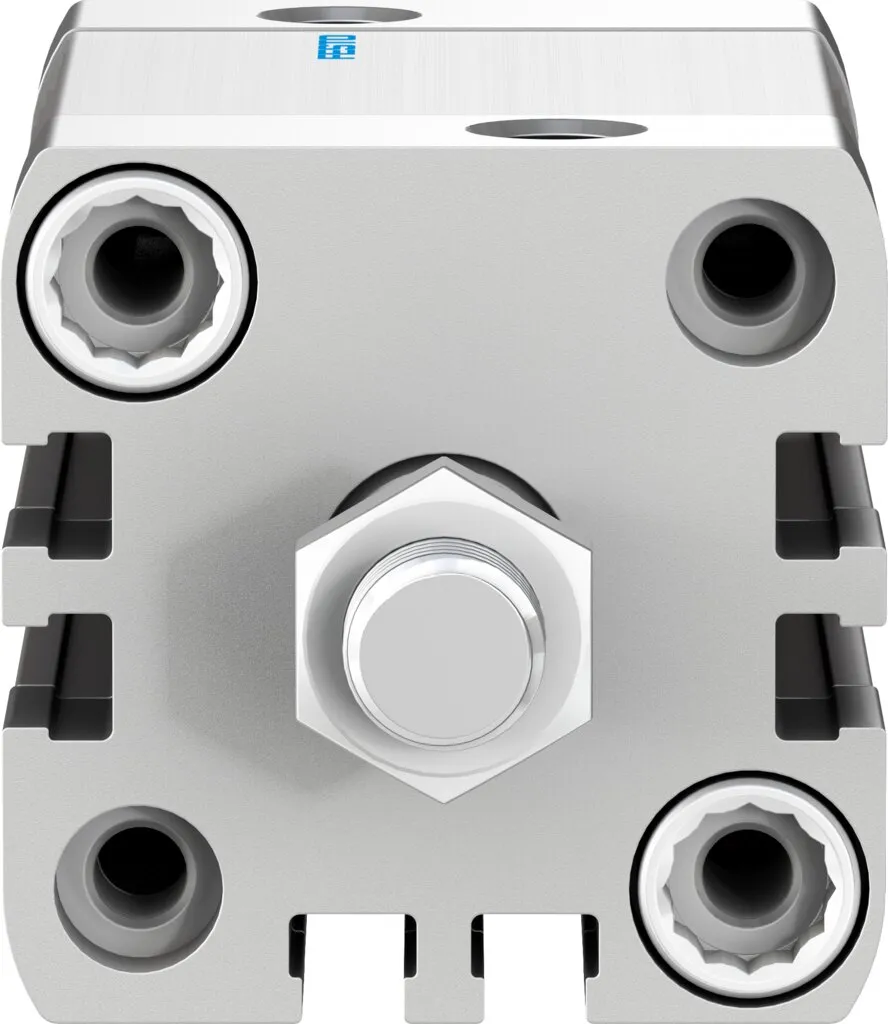

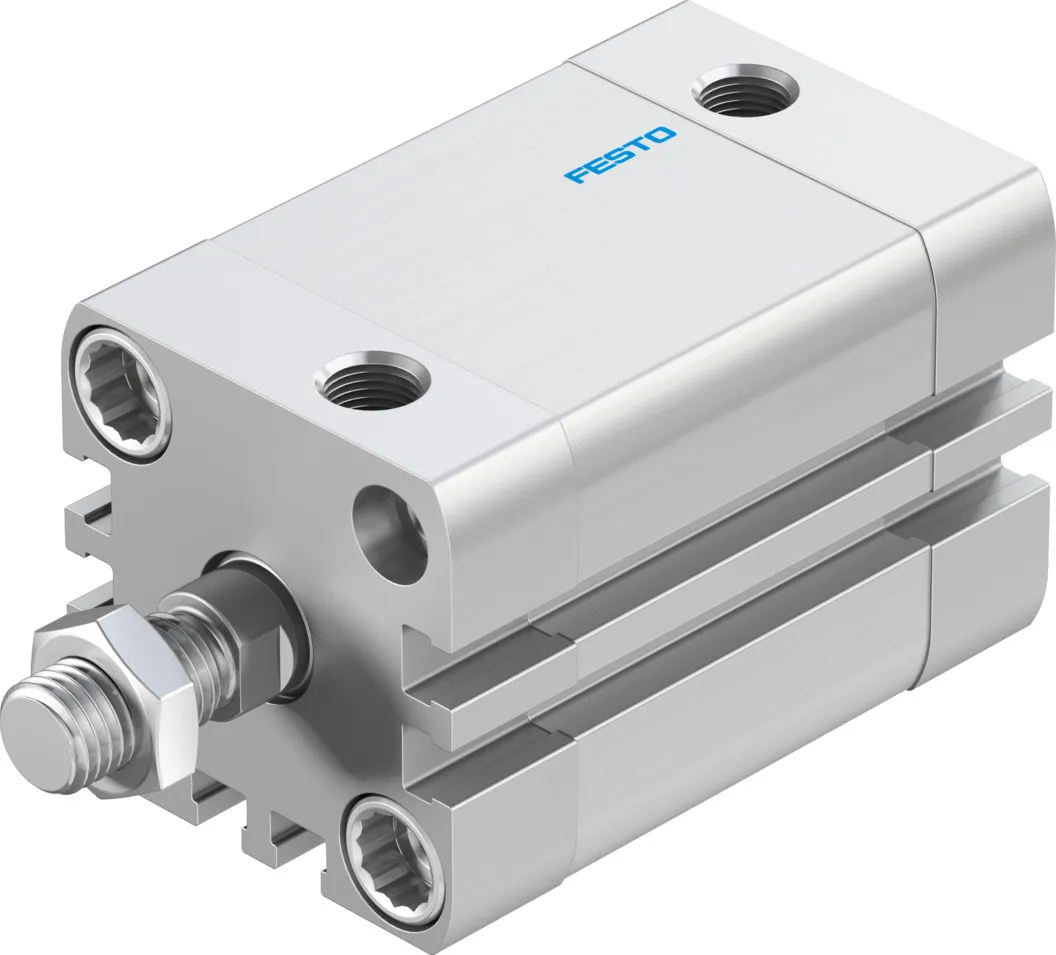

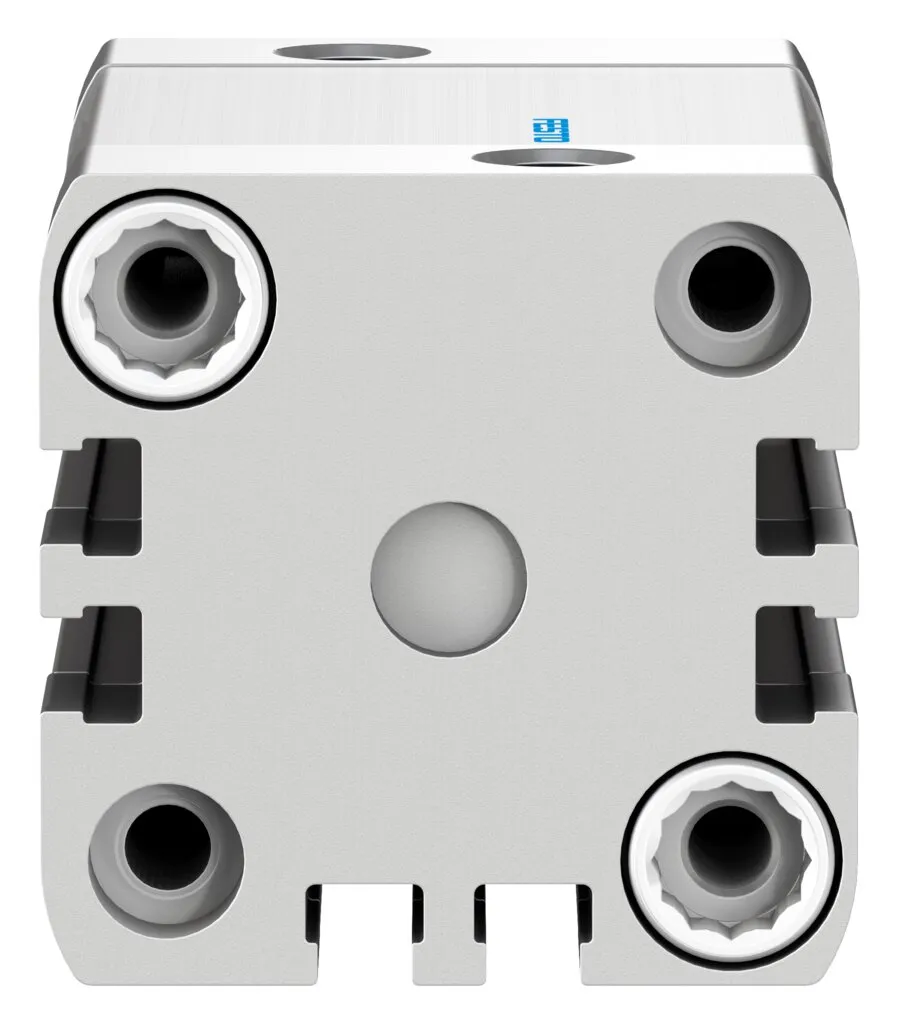

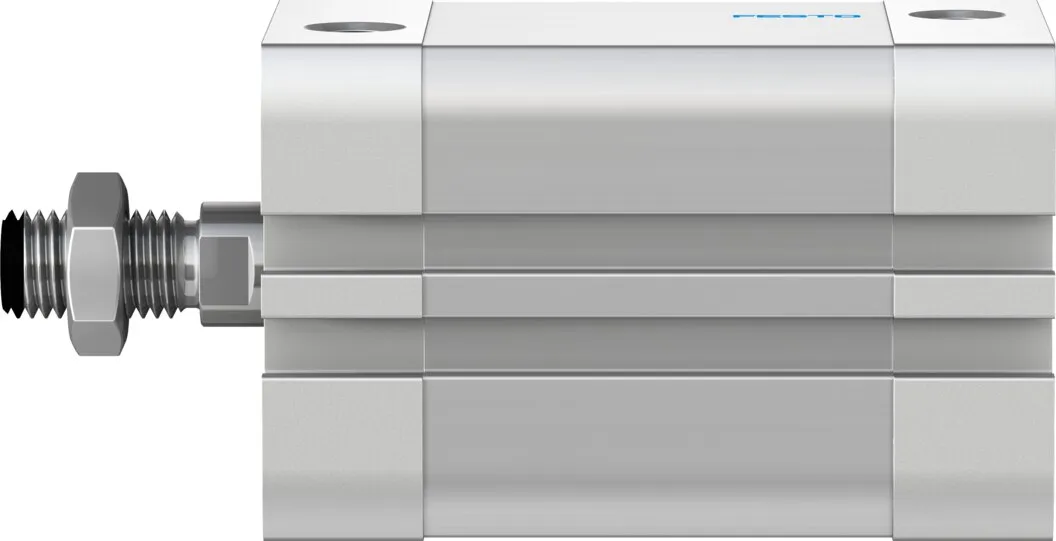

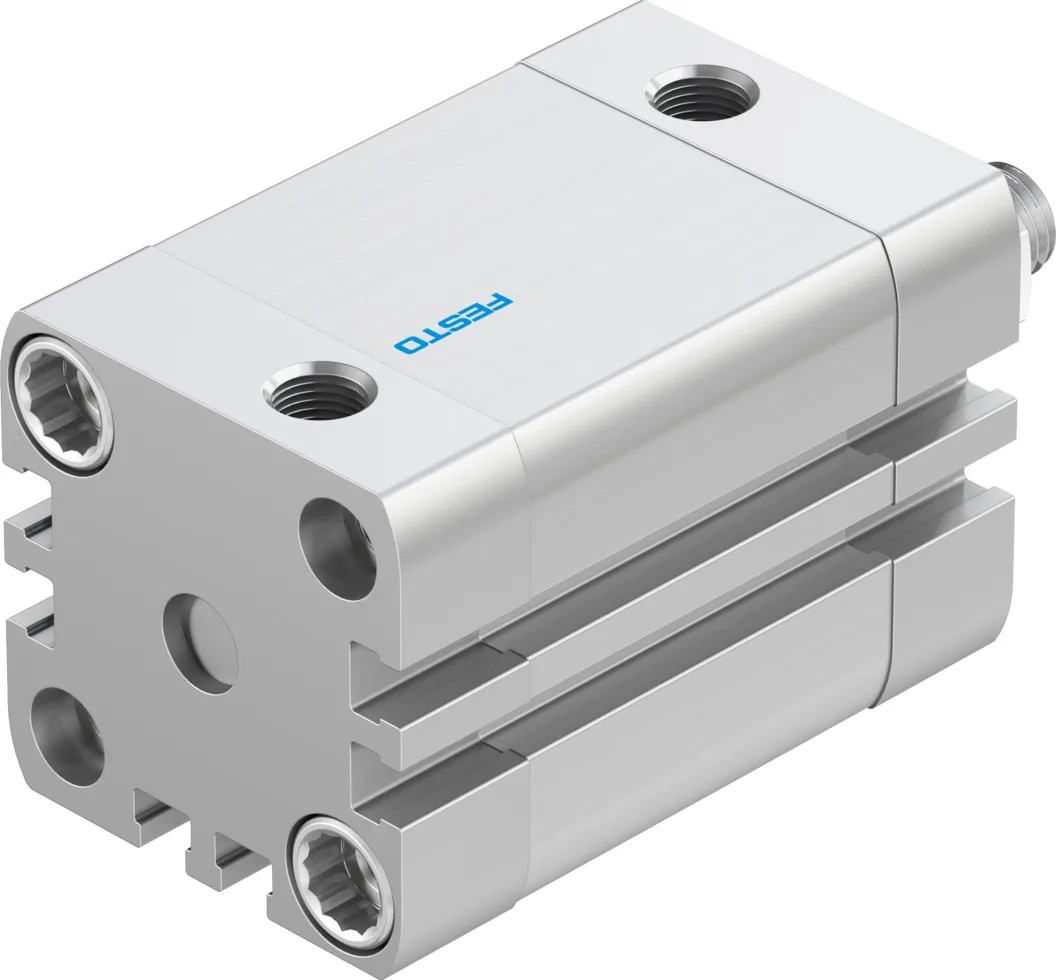

Festo ADN-32-35-A-P-A
ISO 21287 , Up to 50% less installation space than comparable standards-based cylinders to ISO 15552 , Good running performance and long service life , Wide range of variants for customised applicatio…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
ISO 21287 , Up to 50% less installation space than comparable standards-based cylinders to ISO 15552 , Good running performance and long service life , Wide range of variants for customised applications , For position sensing , Variants recommended for production systems for manufacturing lithium-ion batteries , Sustainable thanks to extended life cycle and easier repairs
Specification
| Stroke |
35 mm |
|---|---|
| Piston diameter |
32 mm |
| Piston rod thread |
M10x1.25 |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Mounting position |
optional |
| Conforms to standard |
ISO 21287 |
| Piston-rod end |
Male thread |
| Position detection |
Via proximity switch |
| Symbol |
00991217 |
| Variants |
Piston rod at one end |
| Operating pressure |
0.6, 10 bar |
| Mode of operation |
Double-acting |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 – Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Cleanroom class |
Class 5 according to ISO 14644-1 |
| Ambient temperature |
-20, 80 °C |
| Impact energy in end positions |
0.4 J |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke |
415 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke |
483 N |
| Moving mass |
108 g |
| Product weight |
368 g |
| Type of mounting |
With through-hole, Via female thread, With accessories |
| Pneumatic connection |
G1/8 |
| Note on materials |
RoHS-compliant |
| Material collar screws |
Steel |
| Material cover |
Anodised wrought aluminium alloy |
| Material seals |
TPE-U(PUR) |
| Material piston rod |
High-alloy steel |
| Material cylinder barrel |
Smooth-anodised wrought aluminium alloy |
