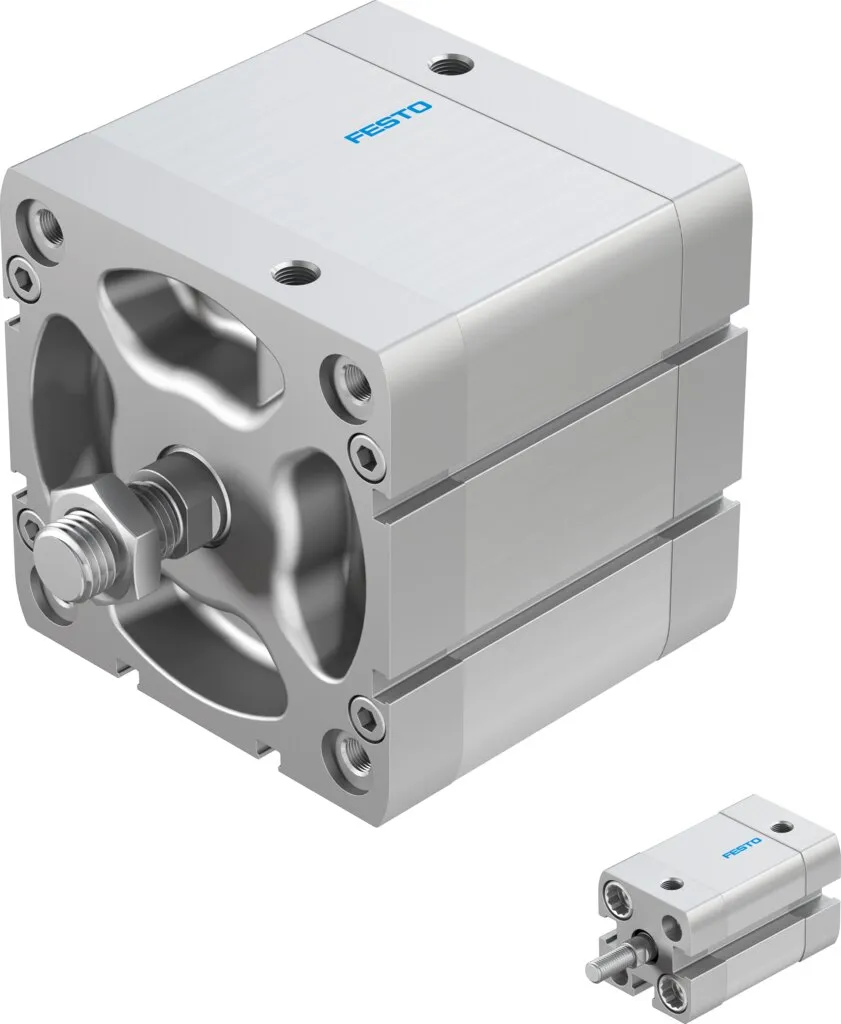

Festo ADN-12- –
ISO 21287 , Up to 50% less installation space than comparable standards-based cylinders to ISO 15552 , Good running performance and long service life , Wide range of variants for customised applicatio…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
ISO 21287 , Up to 50% less installation space than comparable standards-based cylinders to ISO 15552 , Good running performance and long service life , Wide range of variants for customised applications , For position sensing , Variants recommended for production systems for manufacturing lithium-ion batteries , Sustainable thanks to extended life cycle and easier repairs
Specification
| Stroke | 1, 300 mm |
|---|---|
| Piston diameter | 12 mm |
| Based on standard | ISO 21287 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Mode of operation | Double-acting |
| Design | Piston, Piston rod, Profile barrel |
| Position detection | Via proximity switch |
| Variants | Extended male piston rod thread, Custom thread on the piston rod, Extended piston rod, With protection against rotation, High corrosion protection, Uniform, slow movement, Low friction, Through piston rod, Heat-resistant seals max. 120°C |
| Operating pressure | 14.5, 145 psi |
| CE mark (see declaration of conformity) | To EU Explosion Protection Directive (ATEX) |
| UKCA marking (see declaration of conformity) | To UK EX instructions |
| Explosion protection certification outside the EU | EPL Db (GB), EPL Gb (GB) |
| Explosion protection | Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX) |
| ATEX category gas | II 2G |
| ATEX category dust | II 2D |
| Explosion ignition protection type for gas | Ex h IIC T4 Gb |
| Explosion ignition protection type for dust | Ex h IIIC T120°C Db |
| Explosion ambient temperature | -20°C <= Ta <= +60°C |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 0 – No corrosion stress, 2 – Moderate corrosion stress, 3 – high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L, VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Ambient temperature | -20, 120 °C |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 51 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 51, 68 N |
| Additional weight per piston rod extension of 10 mm | 2 g |
| Additional weight per piston rod thread extension of 10 mm | 2 g |
| Type of mounting | With through-hole, Via female thread, With accessories |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material collar screws | Steel |
| Material cover | Anodised wrought aluminium alloy |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
