Danfoss (Drives) HA0CEH

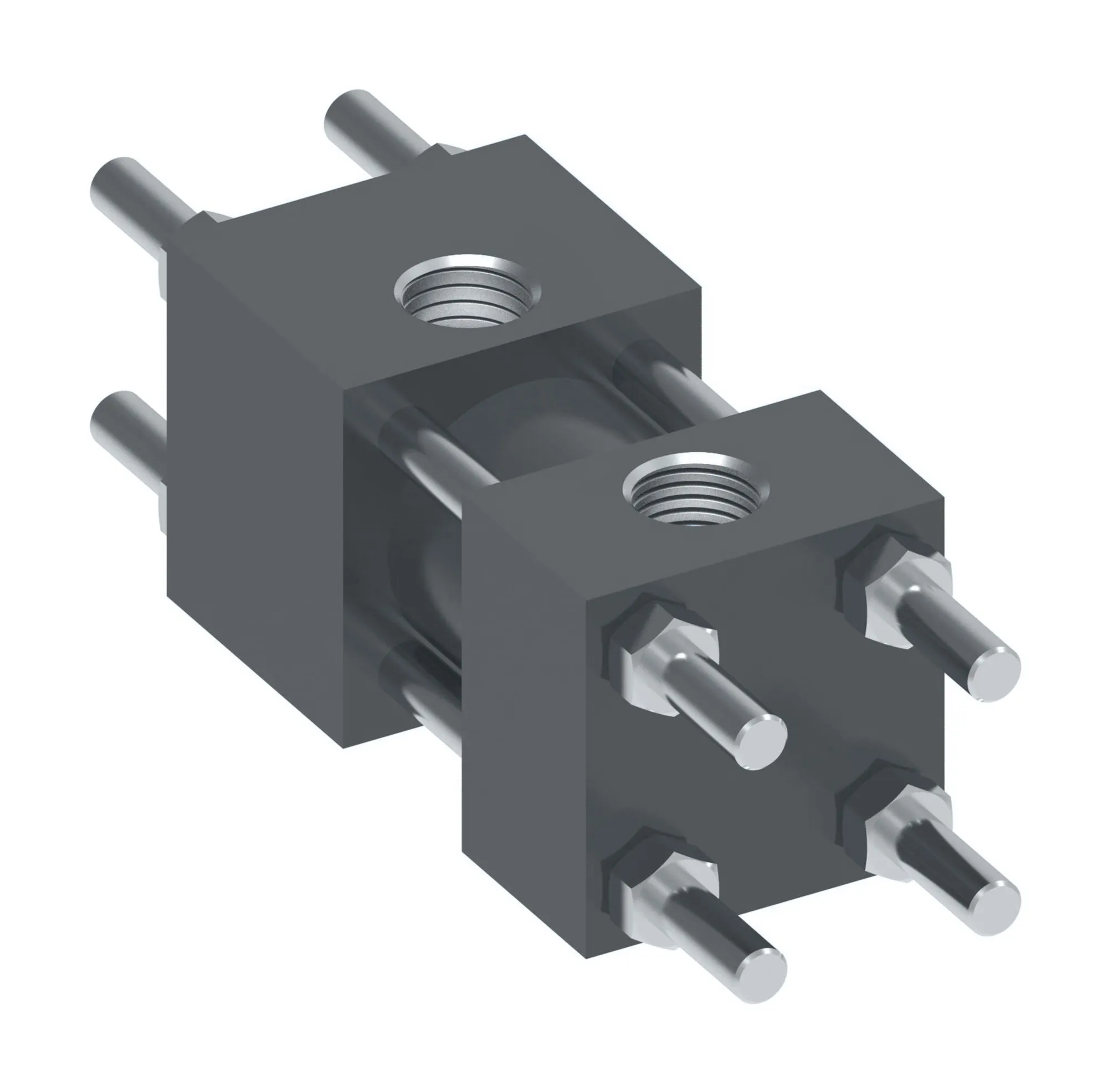

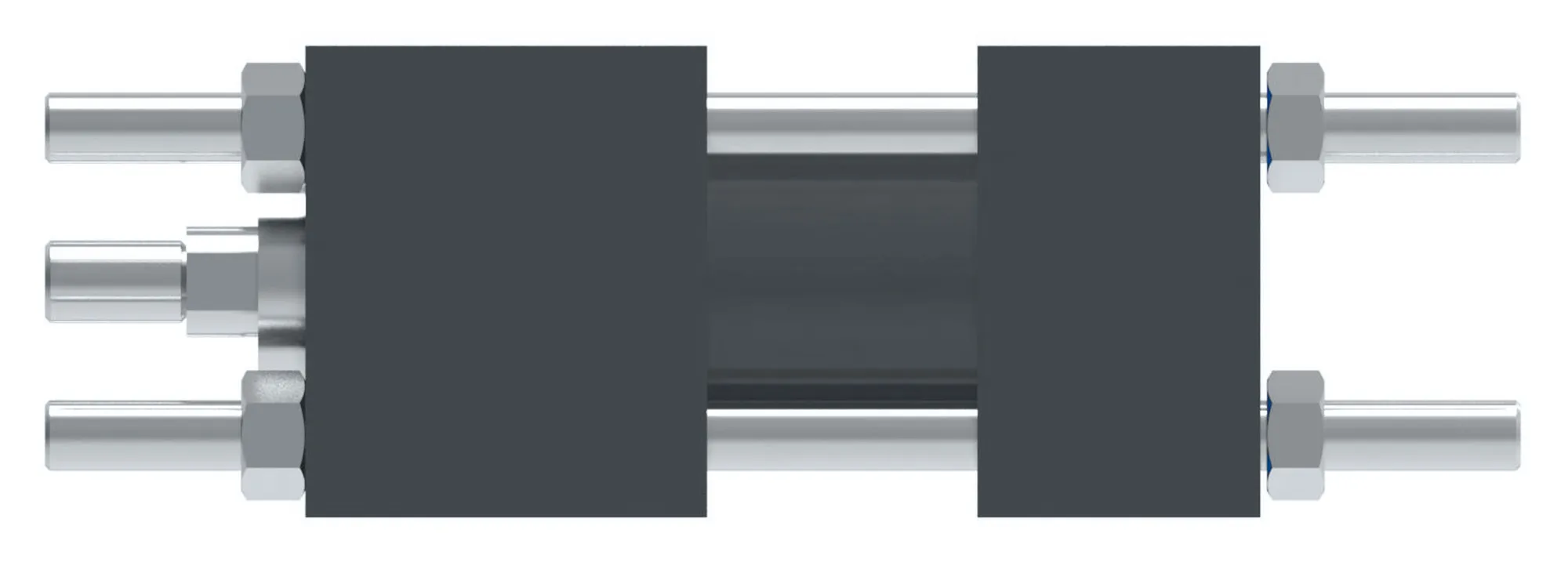

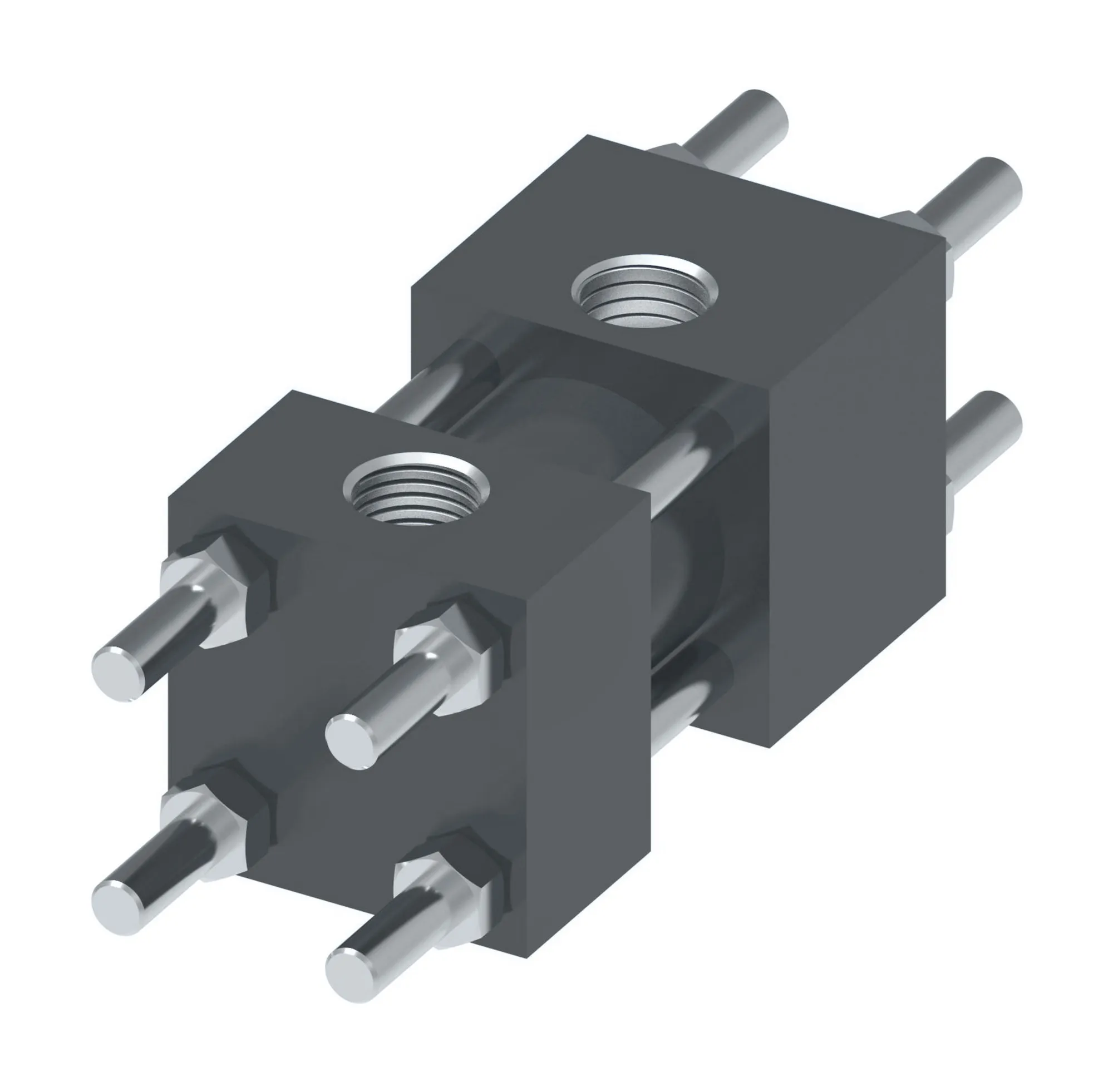

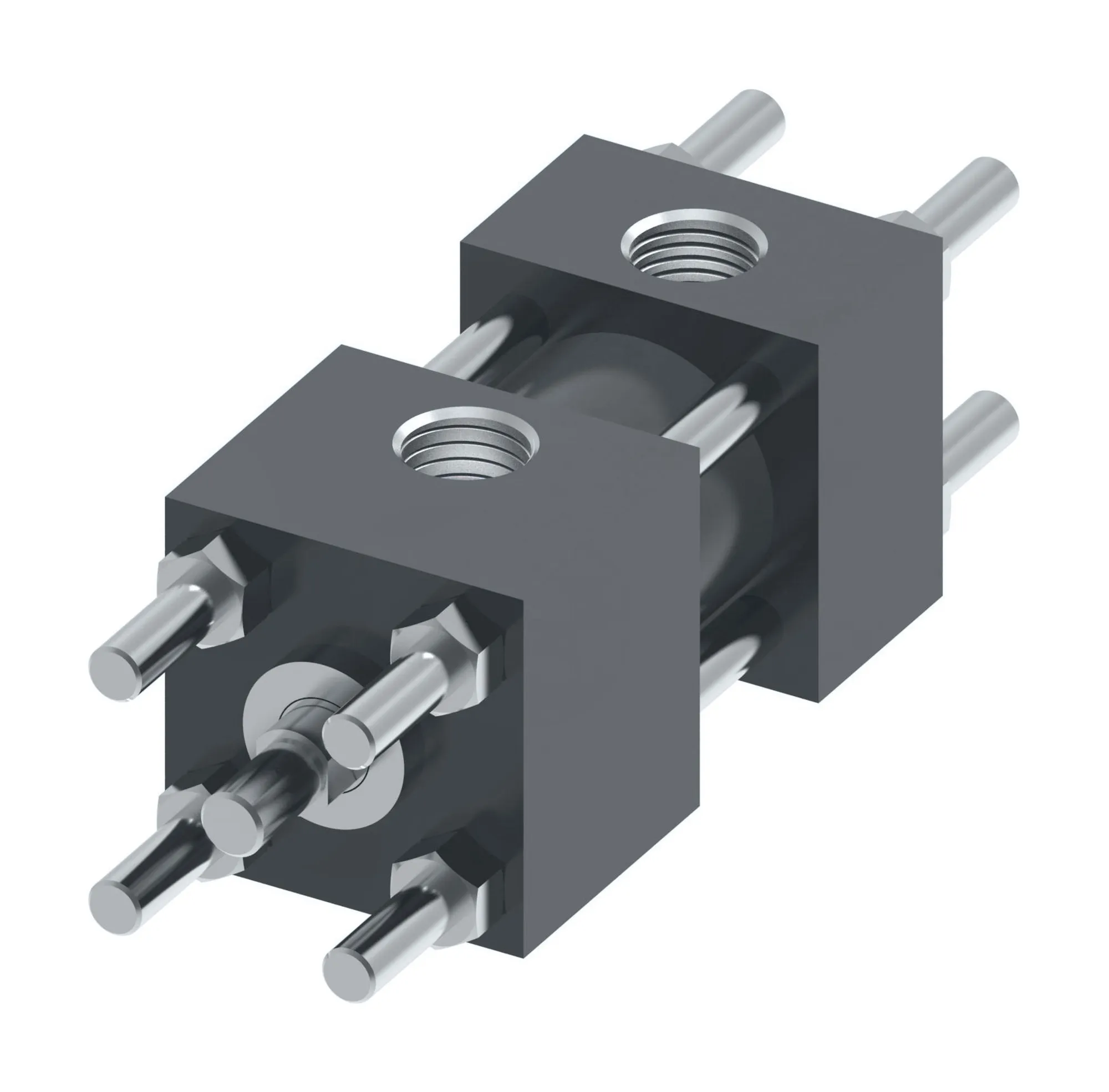

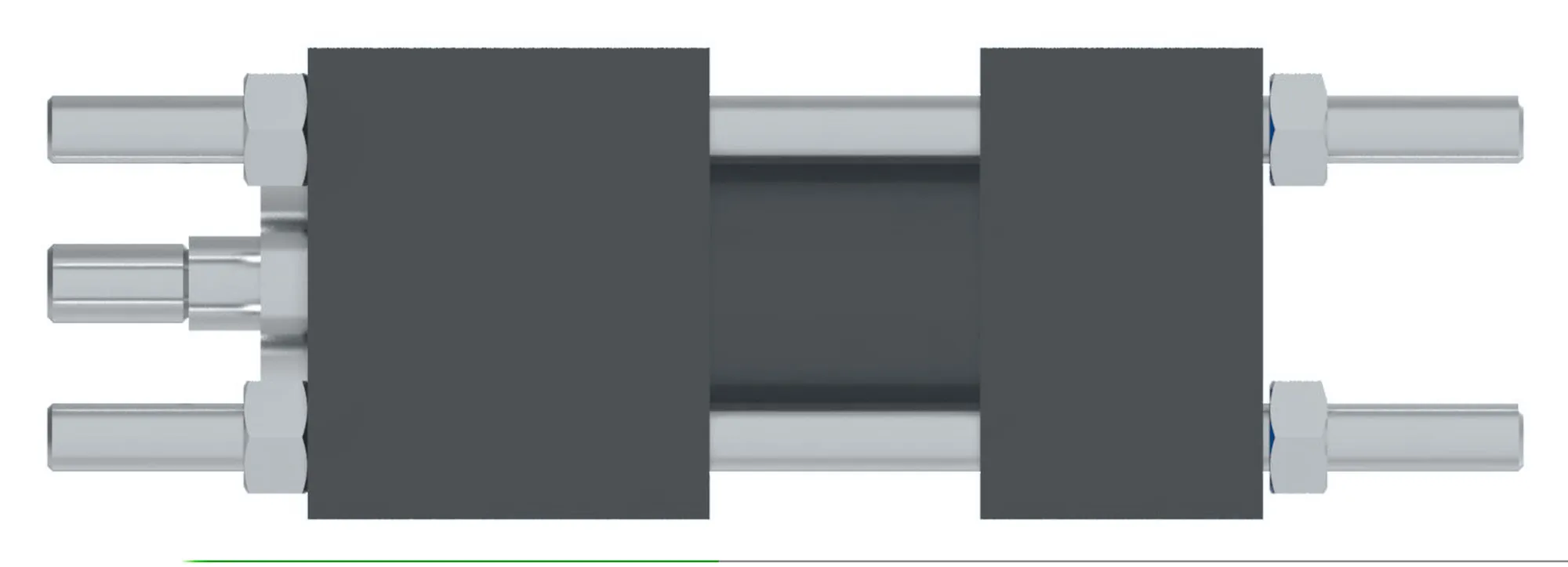

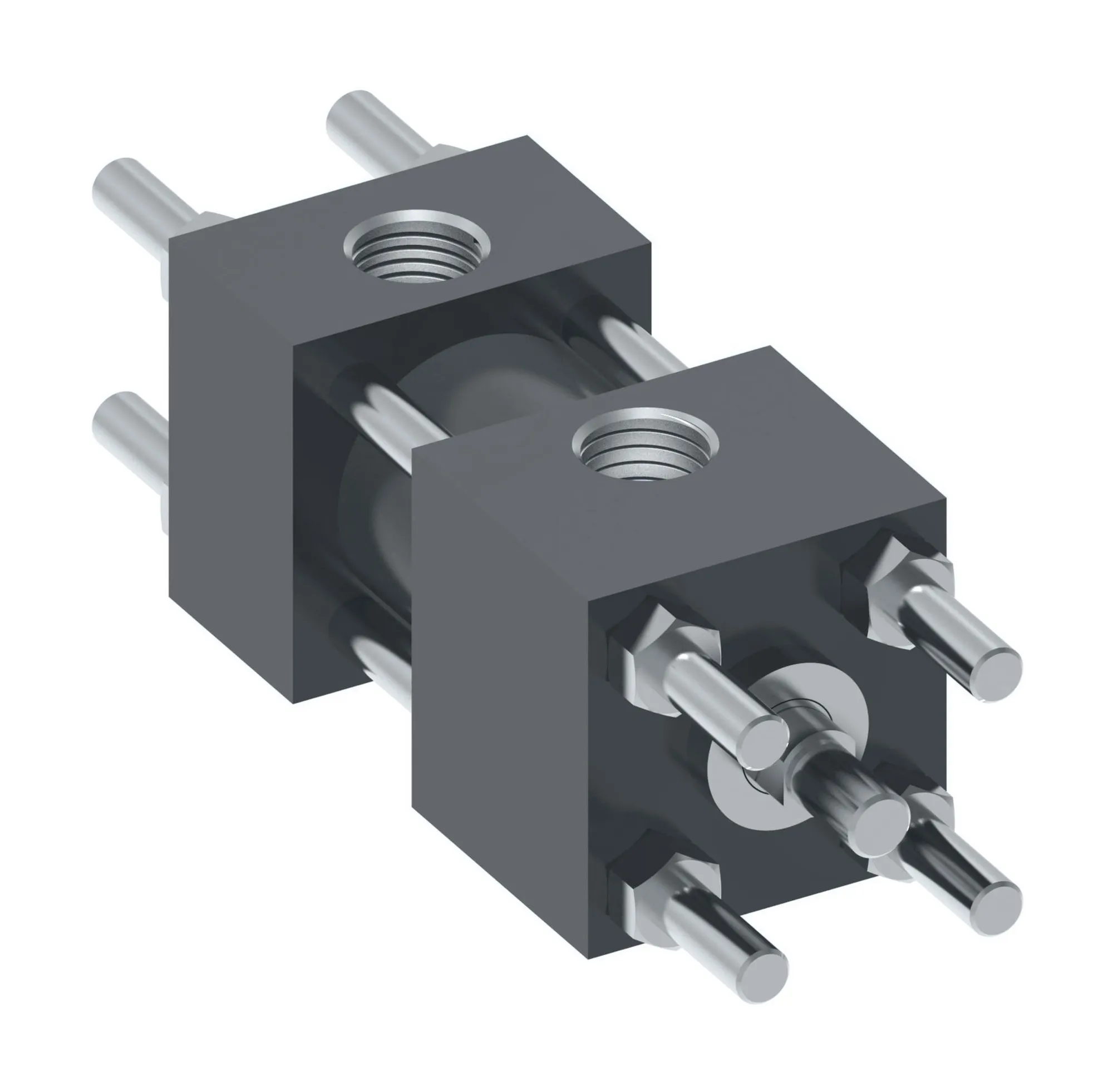

CYLINDER R5 B2.00 R0.63 S1.56 IN M23, R5L-2.00X1.56-B-0.63-2M-N-N-N-1-1-HA0CEH – HA0CEH
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
CYLINDER R5 B2.00 R0.63 S1.56 IN M23, R5L-2.00X1.56-B-0.63-2M-N-N-N-1-1-HA0CEH – HA0CEH
Specification
| Brand | Vickers by Danfoss |
|---|---|
| Bore Diameter | 2.00 inch |
| Mounting style | Both ends extended tie rod |
| Rod seal | Nitrile lip type |
| Piston seal | Carboxylated lip type |
| Port Type | NPTF port |
| Port Size | NPTF-0.375 |
| Head Port Location | Head port location1 |
| Cap Port Location | Cap port location 1 |
| Cushion location | Cushioned both ends |
| Customer end thread length | 0.75 |
| Customer end thread size | M10X1.5 |
| First rod end type | Male modified |
| Head air bleeds | Head bleeder location1 |
| Model Code 1 | R5L-2.00X1.56-B-0.63-2M-N-N-N- |
| Model Code 2 | 1-1-HA0CEH |
| Net stroke length | 1.56 inch |
| Paint specification | Black flat enamel |
| Rod flats | 2 flats |
| Serial Number | 191081168-1 |
| Series | R5 Series- pneumatic |
| Stop tube | 0.00 |
| Sub brand | Hydro-Line |
| Test pressure | 100 |
| Working pressure | 250 |
