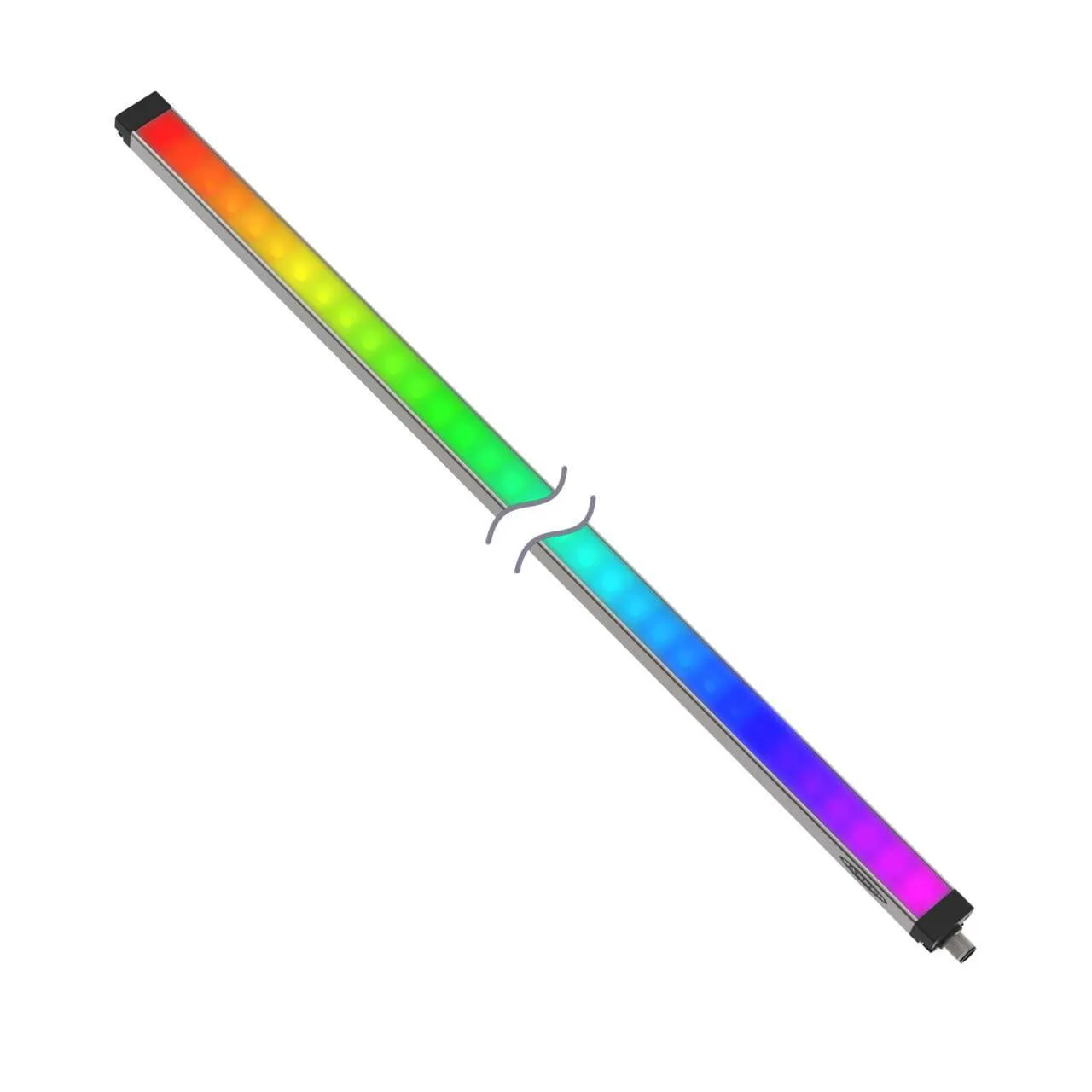

Banner Engineering WLS28PXRGBW430DXKQ

WLS28 Pro Light Strip with IO-Link; Diffuse Window; Length: 430 mm Voltage: 18-30 V dc; Environmental Rating: IP50 Color: RGBW; Non-Cascadable 4-pin M12 Integral QD. Part number: 811003. Power: DC. PFM Input: No. Non-Illuminated: No. IP Rating: IP50. IO-Link Device: Yes. Display: No. Supply Voltage: 18-30 V dc. Item Status: RELEASED. Housing Style: Linear Strip. Primary Housing Material: Aluminum. Indication: Yes. Illumination: Yes. Mounting Thread: No Thread. Color Input Control: Communication Protocol. Number of Colors: Programmable. Product Size (mm): 28. Color Technology: RGB IO-Link. Color Option 1: RGBW. Animation Option 1: IO-Link Controlled. Connection: Integral QD. Quick Disconnect Type: M12. Max Current Color (mA): 825. Dimming Option: IO-Link Controlled. Wire Selectable Function: Programmable. Number of Input Pins/Conductors: 4. I/O Block Compatible: No. Illuminated Length (LxWxH mm): 430. Physical Dimensions (LxWxH or DxH mm): 468.0 x 28.0 x 20.9. Environmental Rating: IP50. Eye Shield: No. High Temperature (up to 100 C): 50. Min Op. Temperature (C): -40. Storage Temp (C): -40 to 70. Primary Window Material: Polycarbonate Diffused. Feature: Washdown Rated: No. Feature: Audible: No. Feature: Cascade: No. Feature: Chemical Resistant: No. Indication Intensity: High Brightness & Daylight Visible. Multi-Color Device: Simultaneous Colors On. Application: Traffic Light: No. Feature: Quick Disconnect: Yes. IO Link: Yes. Wireless: No. USB: No. Pro-Editor Compatible (Discrete): No. EPLAN Status: Published. EPLAN Original Sent Date: 06/03/2024
