Banner Engineering WLS27XWGRYB5-0285DS24Q

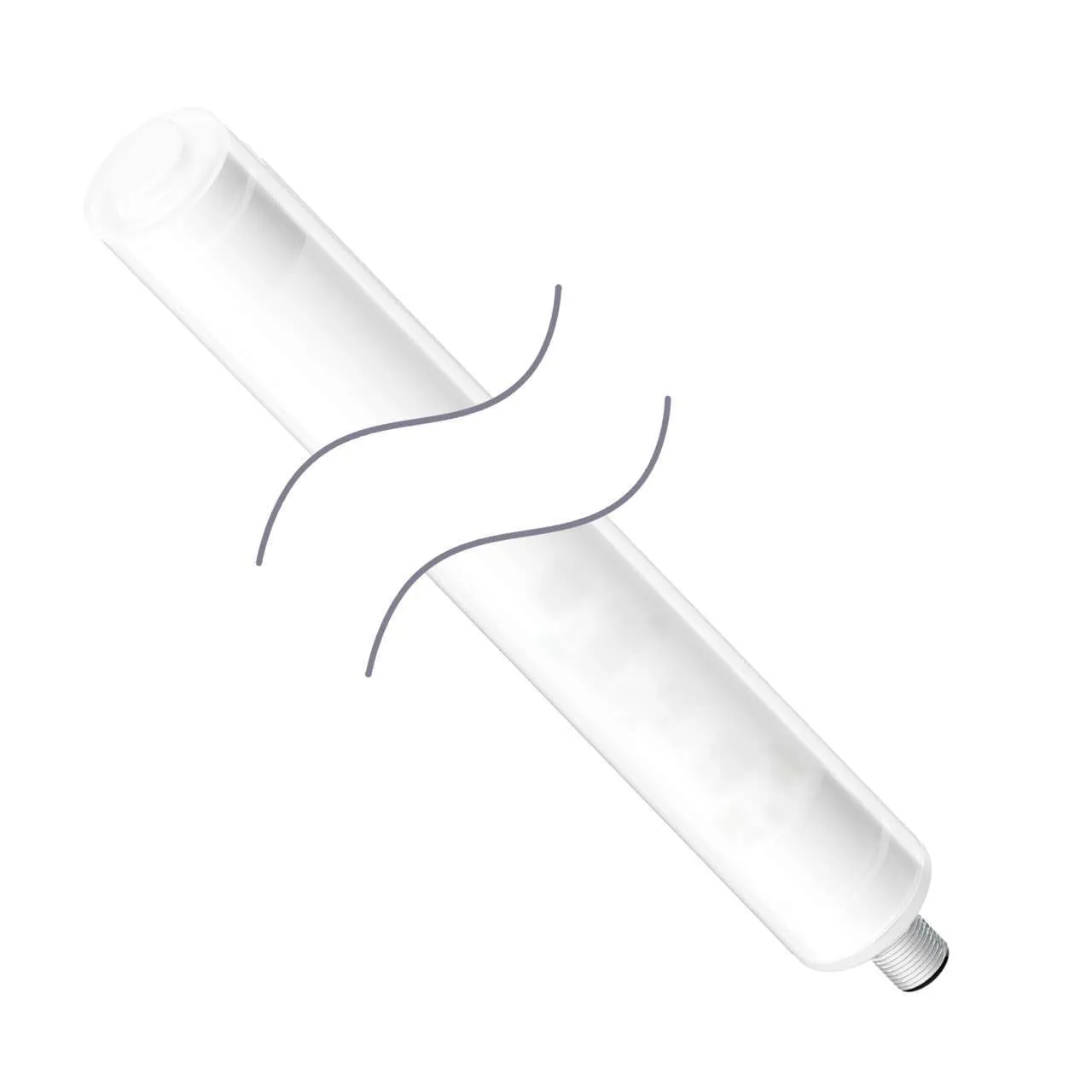

WLS27 Multicolor Light Strip; Length: 285 mm. Part number: 802071. model: WLS27XWGRYB5-0285DS24Q. part_number: 802071. list_price: 323 USD. is_new: 0. is_in_stock: 1. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/201896.pdf. BAN_NumberOfColors: 5. BAN_LI_IlluminatedDimension: 285.0. BAN_Cascade: No. Custom_Group_1995_1995: Colors: Daylight WhiteColors: GreenColors: RedColors: YellowColors: Blue. BAN_Indication: Yes. BAN_LI_Lens_Material: Copolyester Diffused. BAN_LI_Dimming_Option: —. BAN_Supply_Voltage: 24 V dc. Power: DC. PFM Input: No. Non-Illuminated: No. IP Rating: IP66, IP67, IP69K. Display: No. Supply Voltage: 24 V dc. Item Status: RELEASED. Housing Style: Linear Strip. Primary Housing Material: FDA Copolyester. Indication: Yes. Illumination: Yes. Mounting Thread: No Thread. Color Input Control: Multiple (One or more wires/color, enables more colors than input wires). Number of Colors: 5. Product Size (mm): 27. Color Technology: Standard LED. Color Option 1: Daylight White. Animation Option 1: Solid On. Connection: Integral QD. Lumens Color 1: 650. Quick Disconnect Type: M12. Color 1 – Wavelength/Color Temp/Coordinates: 5000K (Daylight). Color Option 2: Green. Animation Option 2: Solid On. Lumens Color 2: 400. Color 2 – Wavelength/Color Temp/Coordinates: 525 nm. Color Option 3: Red. Animation Option 3: Solid On. Lumens Color 3: 185. Color 3 – Wavelength/Color Temp/Coordinates: 625 nm. Color Option 4: Yellow. Animation Option 4: Solid On. Lumens Color 4: 570. Color 4 – Wavelength/Color Temp/Coordinates: 580 nm. Color Option 5: Blue. Animation Option 5: Solid On. Lumens Color 5: 125. Color 5 – Wavelength/Color Temp/Coordinates: 470 nm. Max Current Color (mA): 400. Number of Input Pins/Conductors: 4. I/O Block Compatible: No. Illuminated Length (LxWxH mm): 285.0. Physical Dimensions (LxWxH or DxH mm): 27.0 x 351.5. Environmental Rating: IP66; IP67; IP69K. Eye Shield: No. High Temperature (up to 100 C): 50. Min Op. Temperature (C): -40. Storage Temp (C): -40 to 70. Primary Window Material: Copolyester Diffused. Feature: Washdown Rated: Yes. Feature: Audible: No. Feature: Cascade: No. Feature: Chemical Resistant: Yes. Feature: Illuminated: No. Multi-Color Device: Single Color On. Application: Traffic Light: No. Feature: Quick Disconnect: Yes. Wireless: No. USB: No. EPLAN Status: Published. EPLAN Original Sent Date: 06/20/2022
