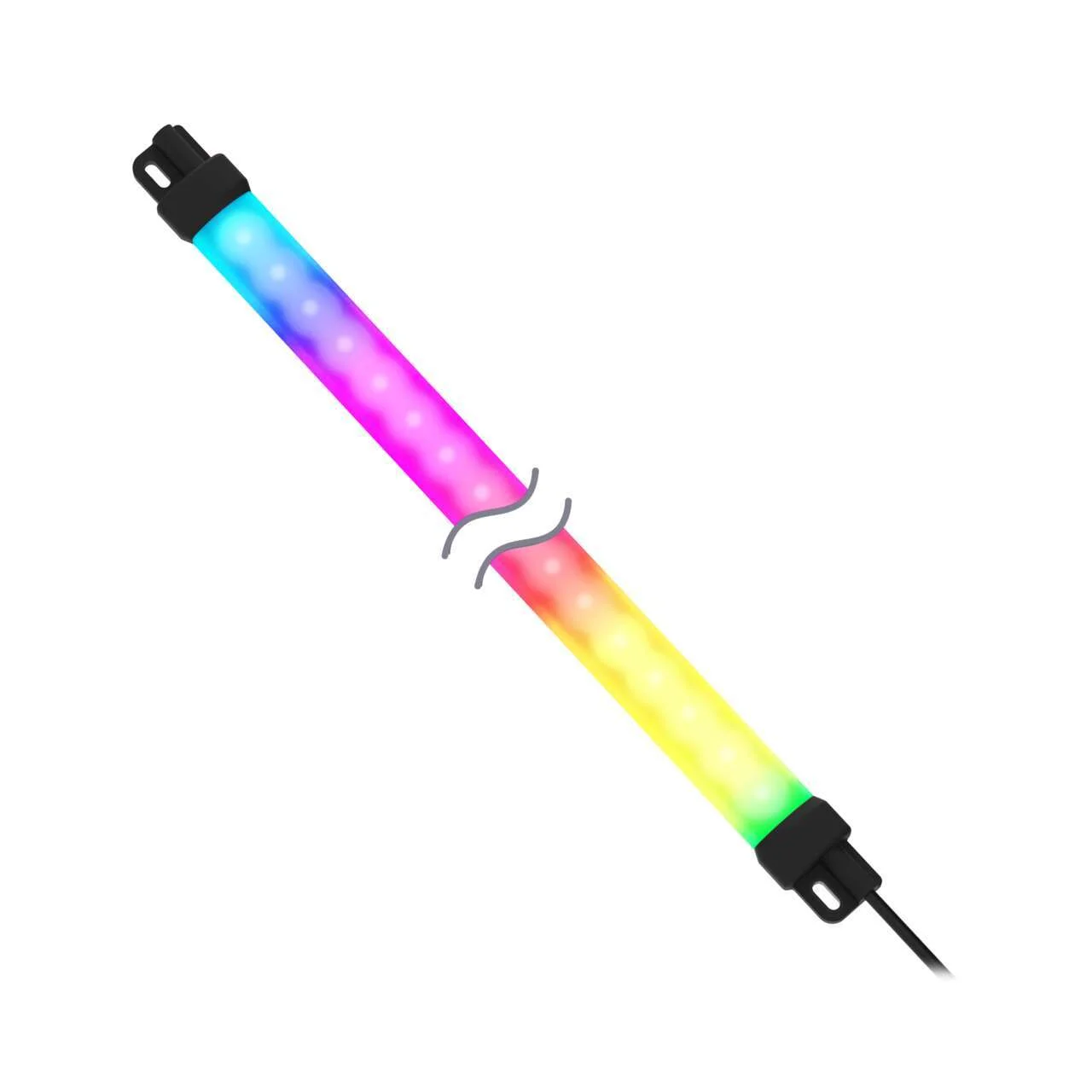

Banner Engineering WLS15PXRGB0360DSSQP
WLS15 Pro Light Strip with PICK-IQ Series; Diffuse Window; Length: 360 mm
Voltage: 12-30 V dc; Environmental Rating: IP66; IP67
Color: RGB; Non-Cascadable
150 m…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
WLS15 Pro Light Strip with PICK-IQ Series; Diffuse Window; Length: 360 mm
Voltage: 12-30 V dc; Environmental Rating: IP66; IP67
Color: RGB; Non-Cascadable
150 mm (6 in) 4-pin M12 PVC Pigtail QD
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Cable Length (M) | 0.15 |
| Ip Rating | IP66, IP67 |
| Display | No |
| Supply Voltage | 12-30 V dc |
| Item Status | RELEASED |
| Housing Style | Linear Strip |
| Primary Housing Material | Polycarbonate |
| Indication | No |
| Illumination | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Communication Protocol |
| Number Of Colors | Programmable |
| Product Size (Mm) | 15 |
| Color Technology | RGB Configurable |
| Color Option 1 | RGB |
| Animation Option 1 | Modbus Controlled |
| Connection | Pigtail QD |
| Quick Disconnect Type | M12 |
| Max Current Color (Ma) | 250 |
| Dimming Option | Modbus Controlled |
| Wire Selectable Function | Programmable |
| Number Of Input Pins/Conductors | 4 |
| Input Type | Communication Protocol |
| I/O Block Compatible | No |
| Illuminated Length (Lxwxh Mm) | 286.4 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 360.0 x 30.6 x 15.5 |
| Environmental Rating | IP66; IP67 |
| Eye Shield | No |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Primary Window Material | Polycarbonate Diffused |
| Secondary Material | Polyamide |
| Pick Iq (Modbus Rtu) | Yes |
| Feature: Washdown Rated | No |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Multi Color Device | Simultaneous Colors On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Io Link | No |
| Modbus Rtu | Yes |
| Wireless | No |
| U S B | No |
| Pro Editor Compatible (Discrete) | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 03/29/2023 |
