Banner Engineering WLS15HCDW1200LS24QP

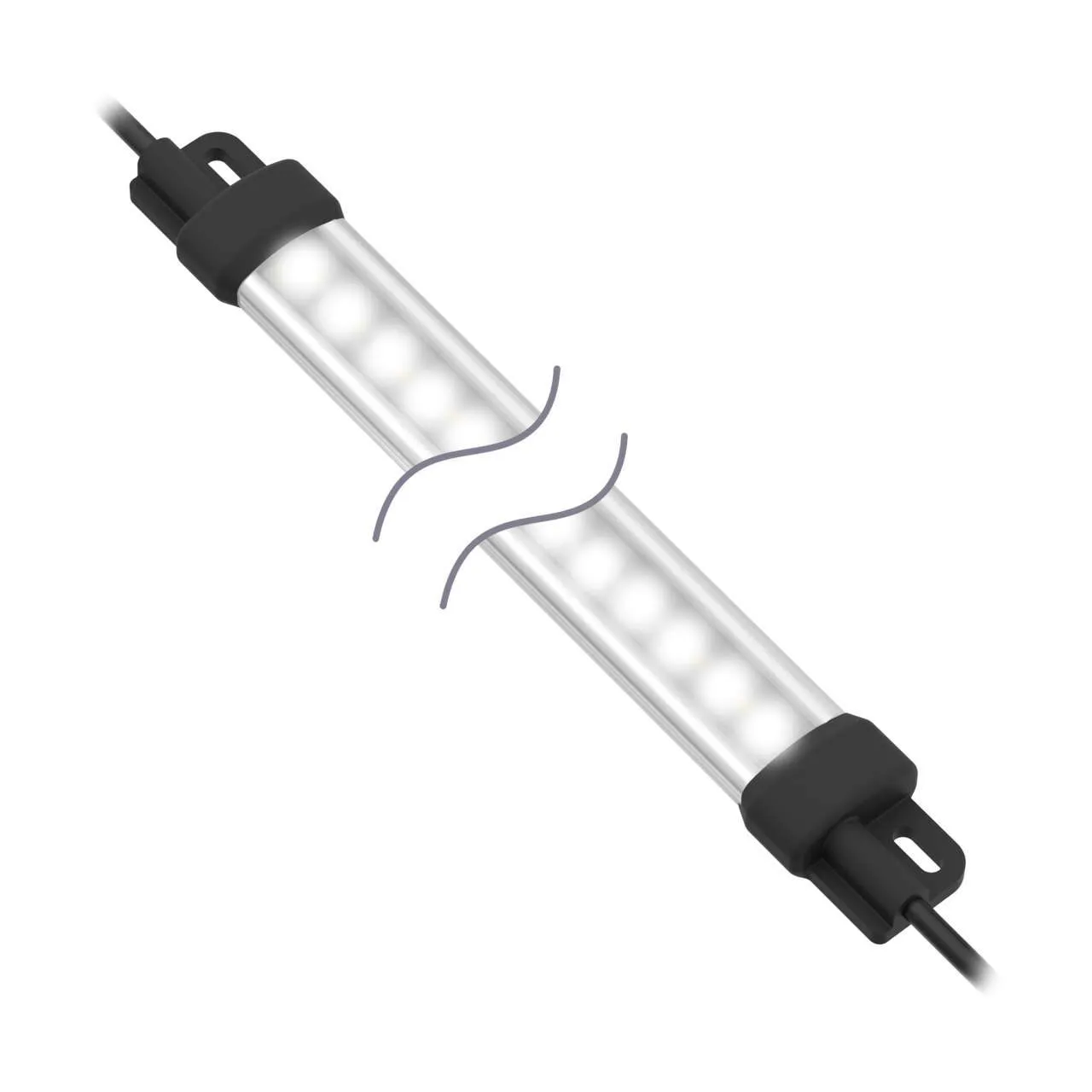

WLS15 High Intensity Light Strip; Light Diffuse Window; Length: 1200 mm. Part number: 809909. model: WLS15HCDW1200LS24QP. part_number: 809909. list_price: 387 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/218326.pdf. BAN_NumberOfColors: 1. Custom_Group_1910_1910: Colors: Daylight White. BAN_LI_IlluminatedDimension: 1126.4. BAN_LI_LumensColor_1: 3000. BAN_Connection: Pigtail QD. BAN_Cascade: Yes. BAN_CableLength: 0.15. BAN_Supply_Voltage: 24 V dc. Power: DC. PFM Input: No. Non-Illuminated: No. Cable Length (m): 0.15. IP Rating: IP66, IP67. Display: No. Supply Voltage: 24 V dc. Item Status: RELEASED. Housing Style: Linear Strip. Primary Housing Material: Polycarbonate. Indication: No. Illumination: Yes. Mounting Thread: No Thread. Color Input Control: Individual (One wire/color, same number of colors as input wires). Number of Colors: 1. Product Size (mm): 15. Color Technology: Standard LED. Color Option 1: Daylight White. Connection: Pigtail QD. Lumens Color 1: 3000. Quick Disconnect Type: M12. Color 1 – Wavelength/Color Temp/Coordinates: 5000K (Daylight). Max Current Color (mA): 1440. Dimming Option: High-Low-Off. Number of Input Pins/Conductors: 4. I/O Block Compatible: No. Illuminated Length (LxWxH mm): 1126.4. Physical Dimensions (LxWxH or DxH mm): 1200.0 x 30.6 x 15.5. Environmental Rating: IP66; IP67. Eye Shield: No. High Temperature (up to 100 C): 50. Min Op. Temperature (C): -40. Storage Temp (C): -40 to 70. Primary Window Material: Polycarbonate Diffused. Secondary Material: Polyamide. Feature: Washdown Rated: No. Feature: Audible: No. Feature: Cascade: Yes. Feature: Chemical Resistant: No. Application: Traffic Light: No. Feature: Quick Disconnect: Yes. Wireless: No. USB: No. EPLAN Status: Pending Publish. EPLAN Original Sent Date: 12/18/2025
