Banner Engineering WLS15CWR1200DSQP

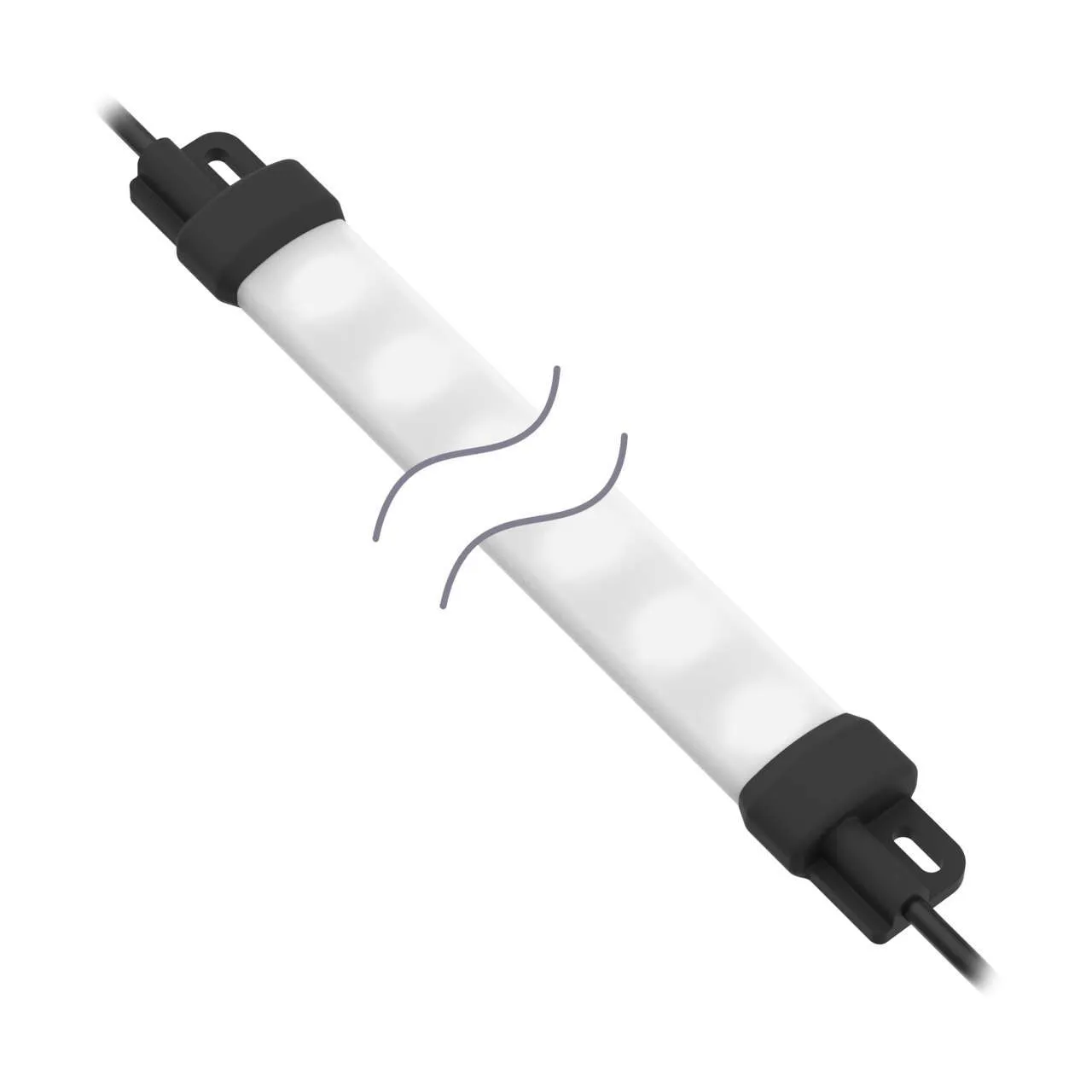

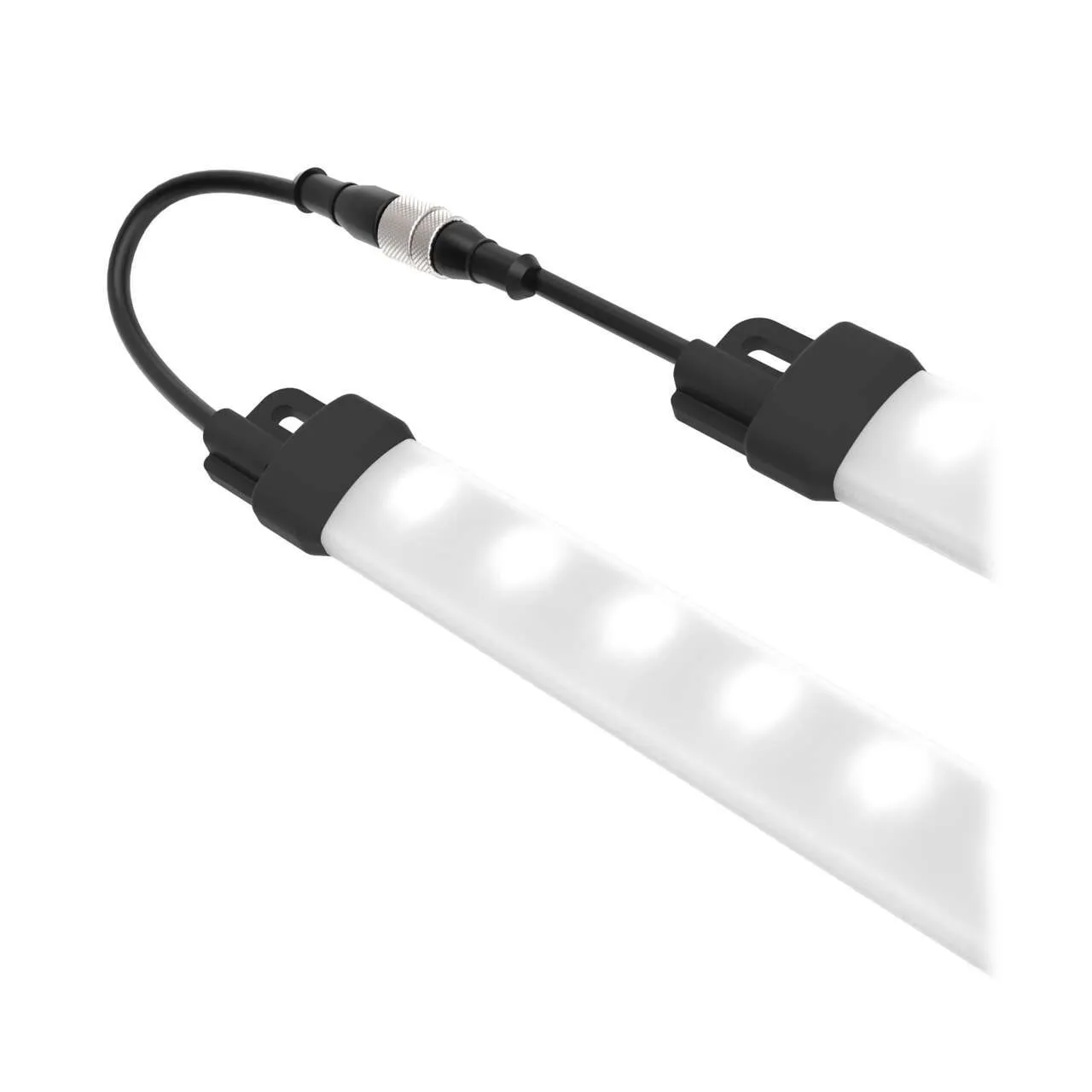

WLS15 Dual Color Light Strip; Length: 1200 mm. Part number: 806973. model: WLS15CWR1200DSQP. part_number: 806973. list_price: 444 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/197493.pdf. BAN_NumberOfColors: 2. Custom_Group_1910_1910: Colors: Daylight WhiteColors: Red. BAN_LI_IlluminatedDimension: 1126.4. BAN_LI_LumensColor_1: 1400. BAN_Connection: Pigtail QD. BAN_Cascade: Yes. BAN_CableLength: 0.15. BAN_Supply_Voltage: 12/24 V dc. Power: DC. PFM Input: No. Non-Illuminated: No. Cable Length (m): 0.15. IP Rating: IP66, IP67. Display: No. Supply Voltage: 12/24 V dc. Item Status: RELEASED. Housing Style: Linear Strip. Primary Housing Material: Polycarbonate. Indication: Yes. Illumination: Yes. Mounting Thread: No Thread. Color Input Control: Individual (One wire/color, same number of colors as input wires). Number of Colors: 2. Product Size (mm): 15. Color Technology: Standard LED. Color Option 1: Daylight White. Connection: Pigtail QD. Lumens Color 1: 1400. Quick Disconnect Type: M12. Color 1 – Wavelength/Color Temp/Coordinates: 5000K (Daylight). Color Option 2: Red. Lumens Color 2: 440. Color 2 – Wavelength/Color Temp/Coordinates: 625 nm. Max Current Color (mA): 1920. Number of Input Pins/Conductors: 4. I/O Block Compatible: No. Illuminated Length (LxWxH mm): 1126.4. Physical Dimensions (LxWxH or DxH mm): 1200.0 x 30.6 x 15.5. Environmental Rating: IP66; IP67. Eye Shield: No. High Temperature (up to 100 C): 60. Min Op. Temperature (C): -40. Storage Temp (C): -40 to 70. Primary Window Material: Polycarbonate Diffused. Secondary Material: Polyamide. Feature: Washdown Rated: No. Feature: Audible: No. Feature: Cascade: Yes. Feature: Chemical Resistant: No. Feature: Illuminated: No. Multi-Color Device: Single Color On. Application: Traffic Light: No. Feature: Quick Disconnect: Yes. Wireless: No. USB: No. EPLAN Status: Pending Publish. EPLAN Original Sent Date: 12/18/2025
