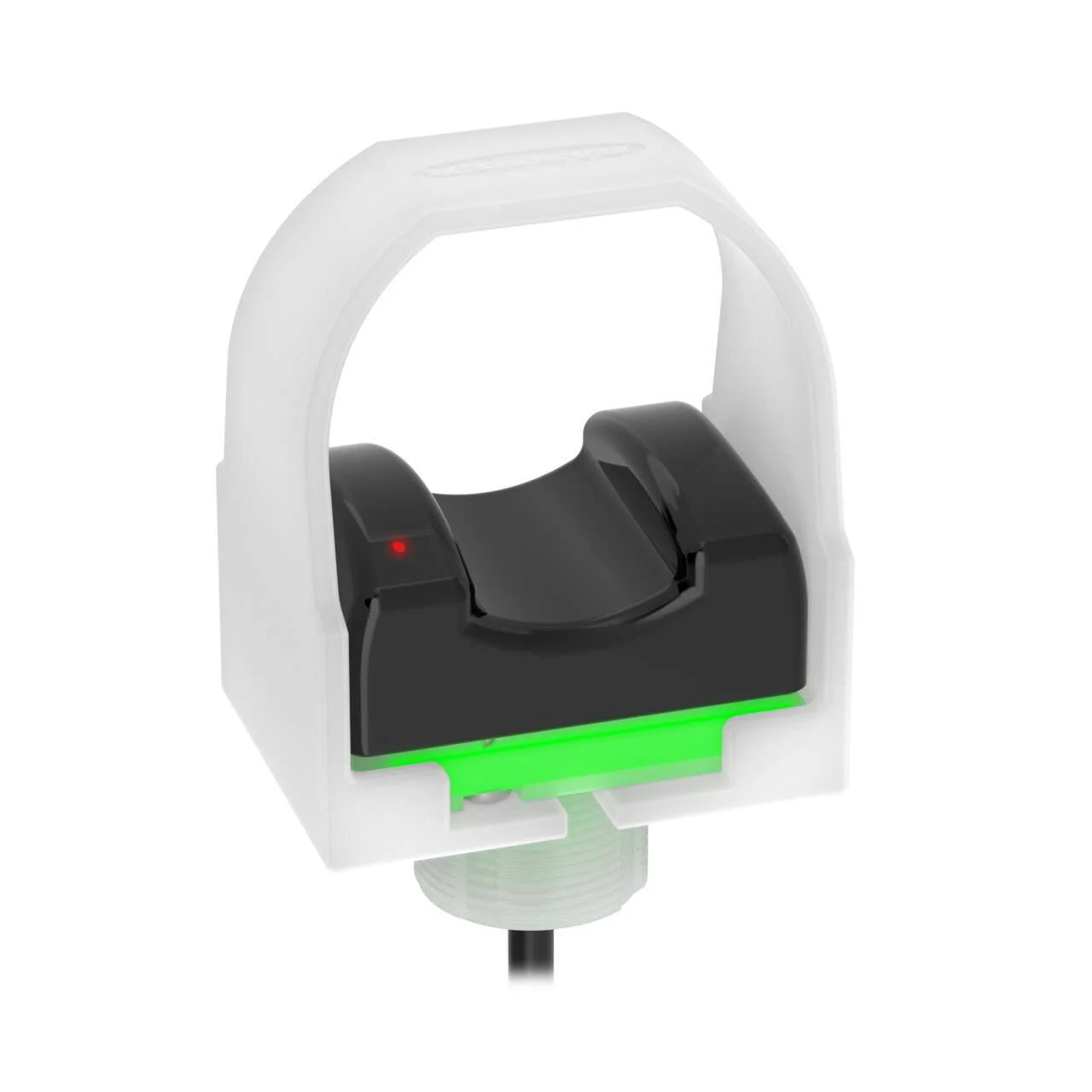

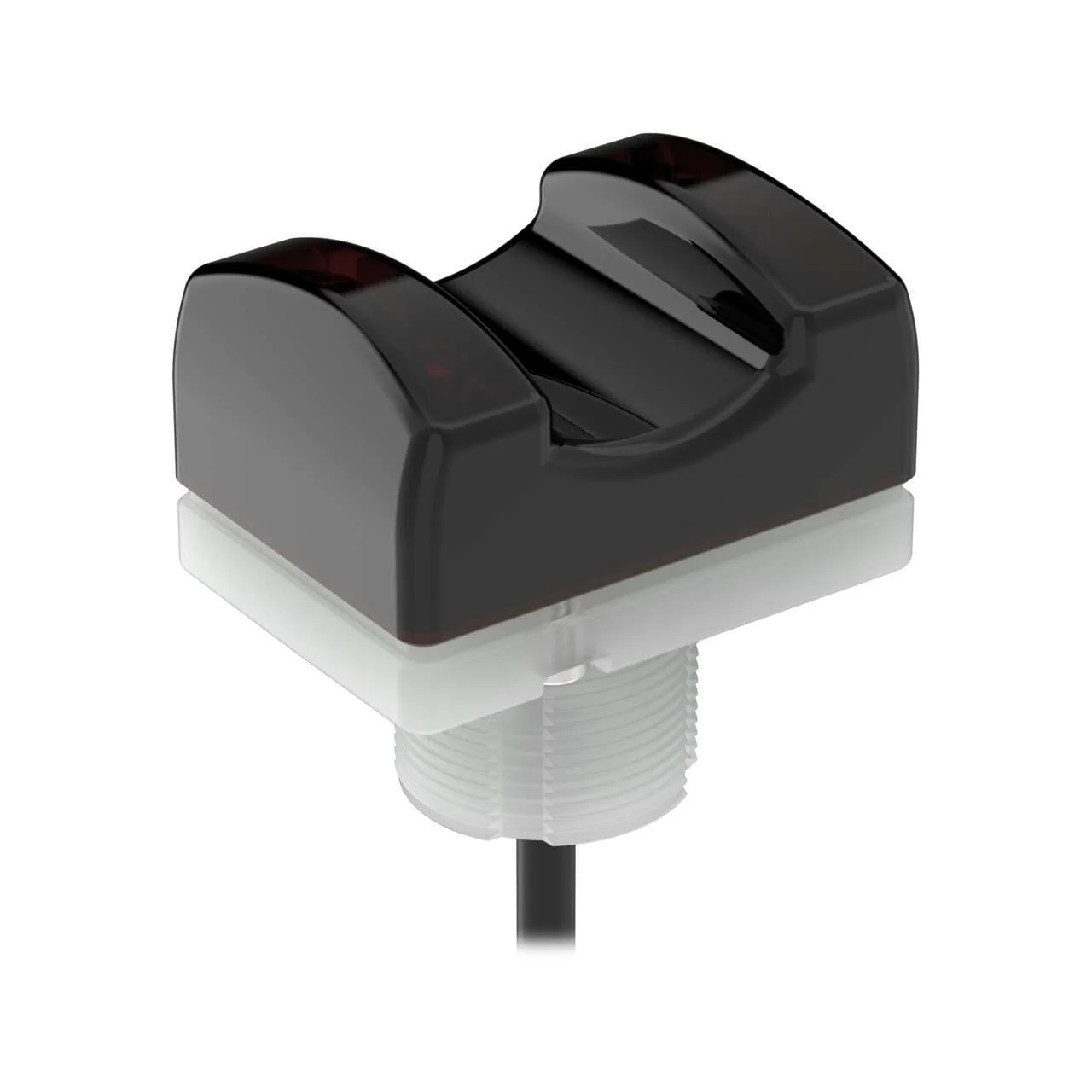

Banner Engineering VTBP6RL
VTB Series: Verification Touch Button 1-Color
Input: 12-30 V dc; Upper Housing: Polycarbonate
Output: PNP; Job Light Input: +10-30 V dc; Color: Red
2 m (6.5 ft)…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
VTB Series: Verification Touch Button 1-Color
Input: 12-30 V dc; Upper Housing: Polycarbonate
Output: PNP; Job Light Input: +10-30 V dc; Color: Red
2 m (6.5 ft) Integral Cable
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Cable Length (M) | 2 |
| Ip Rating | IP66 |
| Display | No |
| Nema / Ul Type Rating | NEMA 1, 3, 4, 4X, 12, 13 |
| Supply Voltage | 12-30 V dc |
| Item Status | RELEASED |
| Sensing Mode (General) | Single Point Optical |
| Housing Style | Base Mount – Saddle |
| Primary Housing Material | Polycarbonate |
| Indication | No |
| Illumination | No |
| Actuation | Yes |
| Activation Function | Optical |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number Of Colors | 1 |
| Product Size (Mm) | Other |
| Color Technology | Standard LED |
| Color Option 1 | Red |
| Animation Option 1 | Multiple |
| Connection | Cable |
| Max Current Color (Ma) | 120 |
| Acknowledge (Sense) Light | Red |
| Number Of Input Pins/Conductors | 4 |
| Operation | Normally Open |
| Output Type | PNP |
| Input Type | Bimodal (PNP/NPN) |
| I/O Block Compatible | No |
| Max Output Response Time (Ms) | 100 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 59.9 x 43.2 x 48.0 |
| Number Of Beams | 1 |
| Environmental Rating | IP66 |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 90% @ 55°C |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -20 |
| Storage Temp (C) | -40 to 70 |
| Field Cover Color | Black |
| Primary Housing Color | Red |
| Button Operation | Momentary |
| Primary Window Material | Polycarbonate Diffused |
| Feature: Washdown Rated | No |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Feature: Illuminated | No |
| Multi Color Device | Single Color On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | No |
| Wireless | No |
| U S B | No |
