Banner Engineering TTR229APSA3D-0.5Q5-CTR

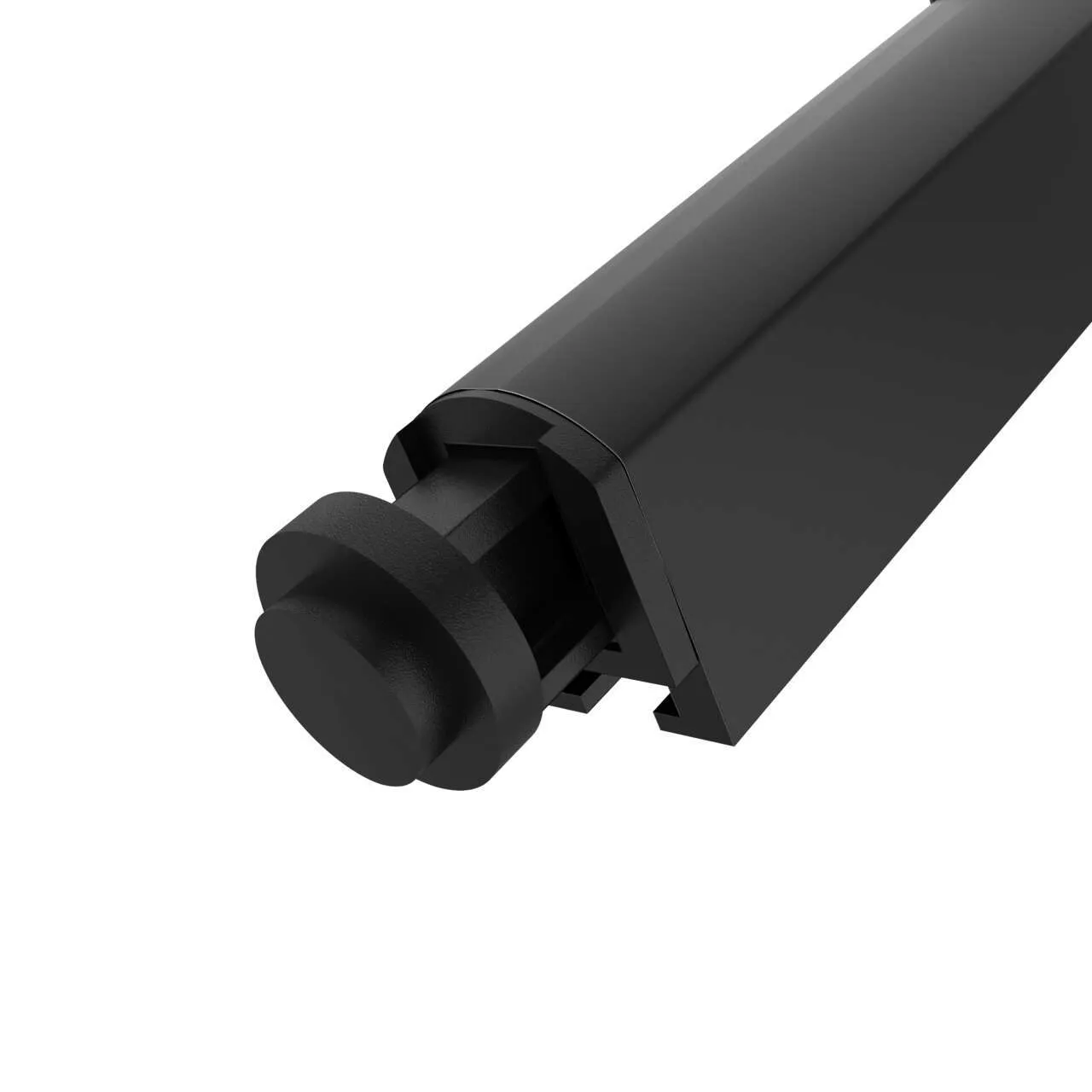

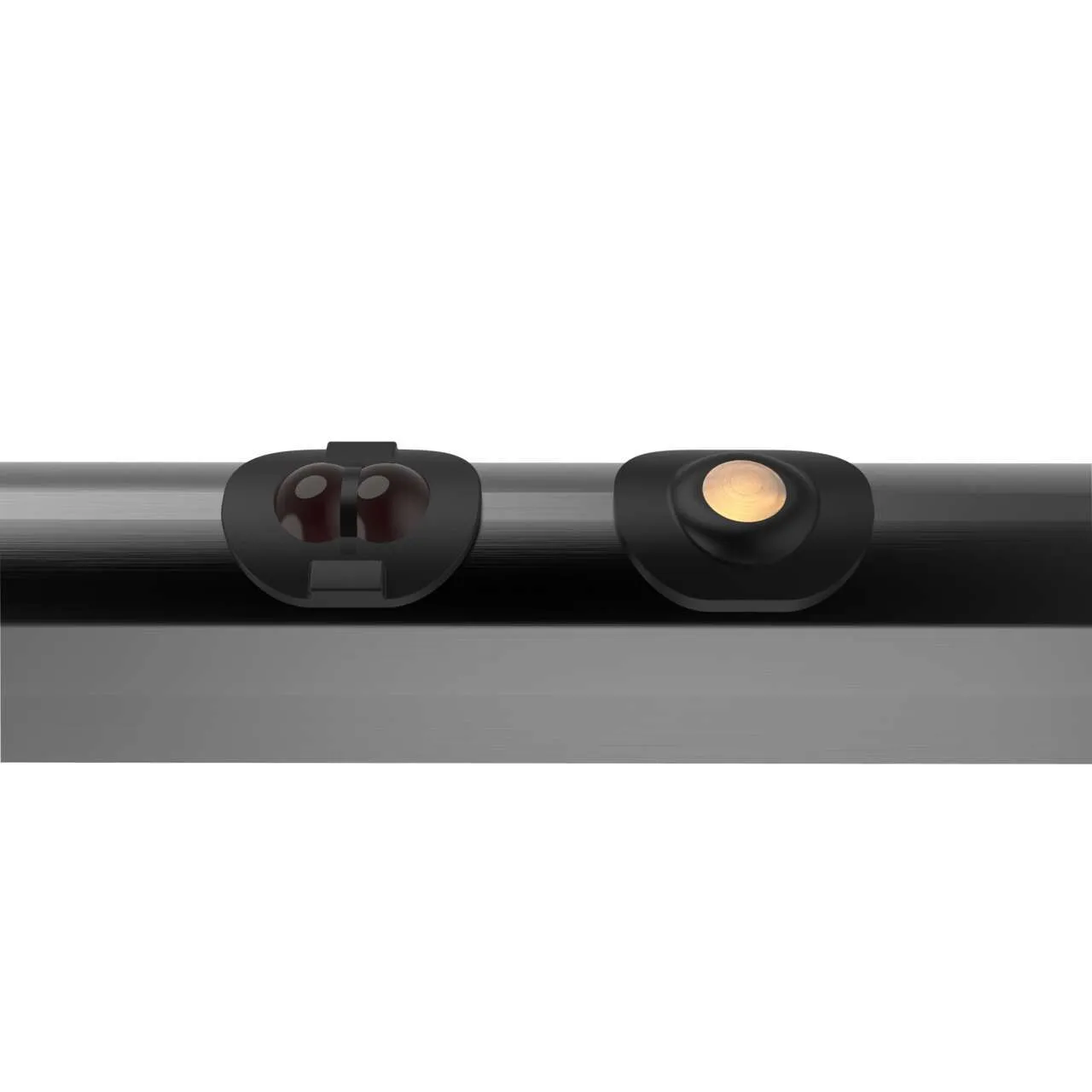

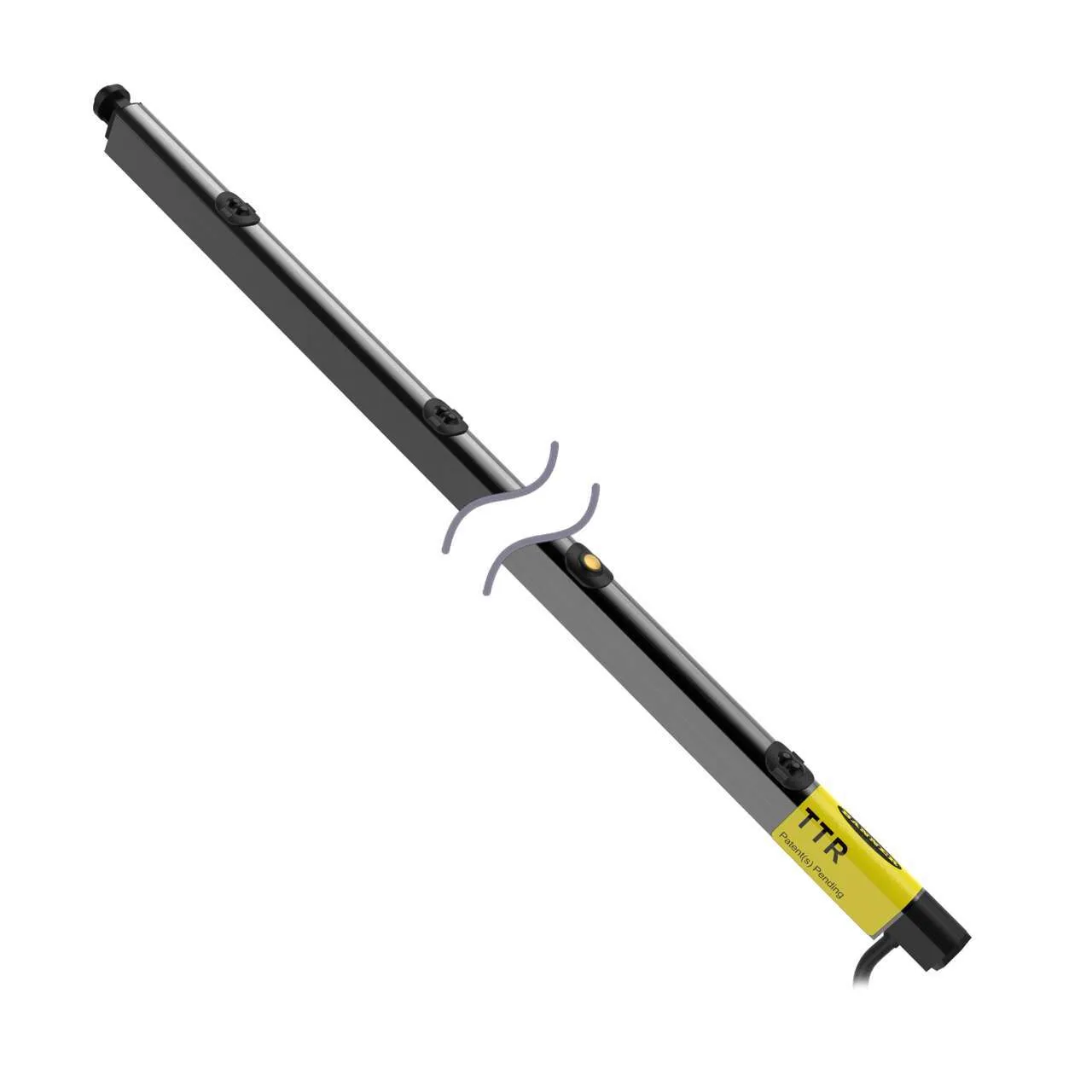

TTR Series 3 Beam Sensor Array 9.0 in Between Frame Beam Spacing: 54 mm; Range: 120 mm Diffuse Output: LO PNP; Input: 18-30 V dc 0.5 m (1.5 ft) M12 Conn. Endcap D: Flat Up / Round. Part number: 810206. Last Beam Distance (to End of Housing)(mm): 60.50. Cable Length (m): 0.5. IP Rating: IP50. Item Status: RELEASED. Sensing Mode (Detailed): Diffuse. Housing Style: Roller Conveyor. End Cap Type: D: Hex Flat Up / Spring 8 mm Round. Primary Housing Material: Black Anodized Aluminum. Max Sensing Range (mm): 120. Slot Depth/Array Length (mm): 229. Connection: Pigtail QD. Quick Disconnect Type: M12. Outputs: PNP. Slot Overall Depth (mm): 12. Number of Pins: 4. Power Supply/Supply Voltage: 18-30 V dc. Output response time (ms): 1. Lens Material: Polycarbonate. Delay at Power-up (ms): 1500. Operation: Light Operate. Indicator: Indicator LEDs. Max Op. Temperature (C): 55. Min Op. Temperature (C): -10. Max Op. Relative Humidity (%): 95% @ 55°C. Feature: Quick Disconnect: Yes. Number of Beams: 3. Beam to Beam Spacing [mm]: 54. Distance to First Beam [mm]: 60.5
