Banner Engineering TLF100P3AQP

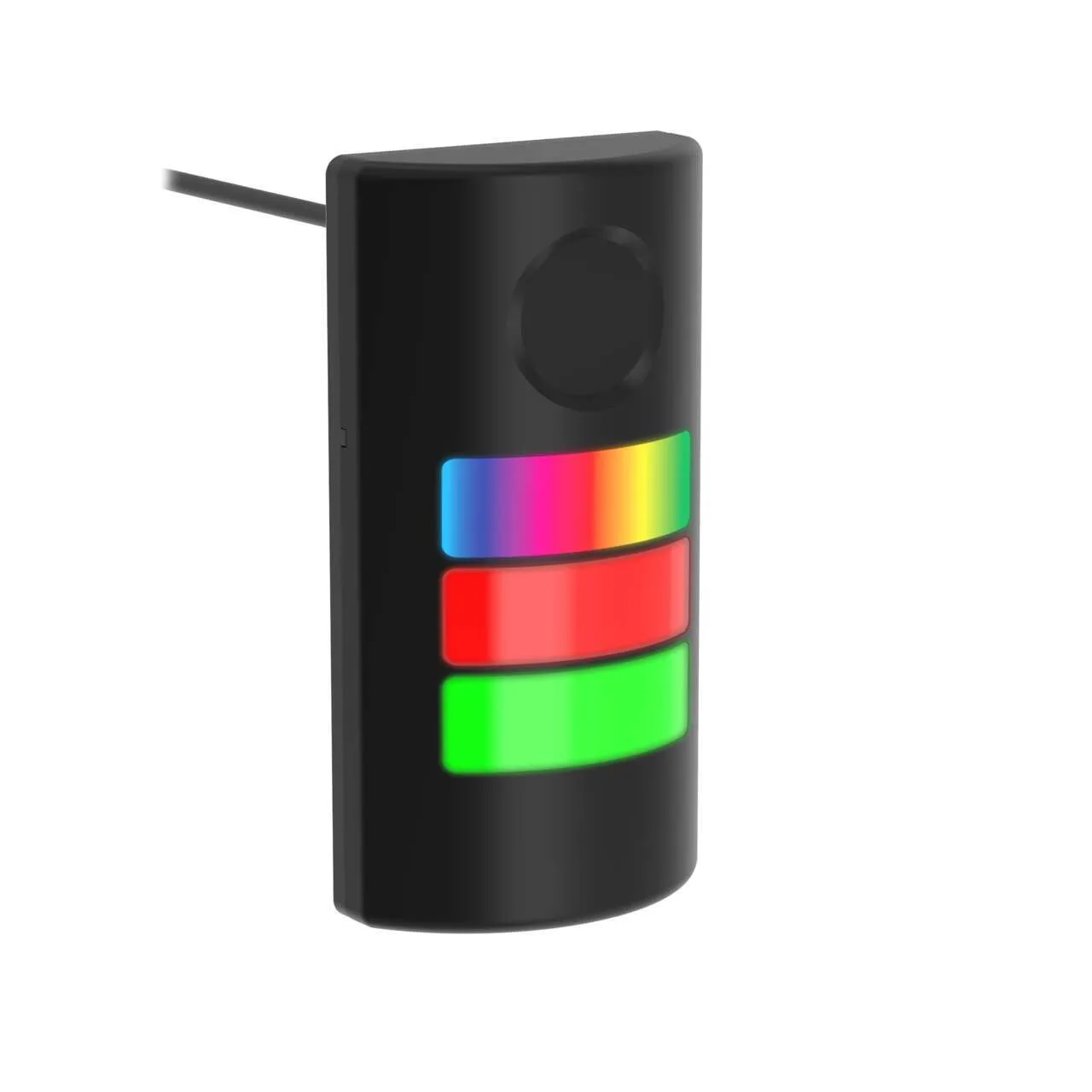

TLF100 Pro with Pro Editor 3 Lighted Segments with Audible; Black Housing; 12-30 V dc Environ. Rating: IP65; IP69K; Colors: Multicolor 150 mm (6 in) 5-pin M12 PVC Pigtail QD. Part number: 812287. Power: DC. PFM Input: Yes. Non-Illuminated: No. Cable Length (m): 0.15. IP Rating: IP65, IP69K. Display: No. NEMA / UL Type Rating: UL 4X. Supply Voltage: 12-30 V dc. Item Status: RELEASED. Housing Style: Flat – Tower. Primary Housing Material: Polycarbonate. Indication: Yes. Illumination: No. Mounting Thread: No Thread. Color Input Control: Individual (One wire/color, same number of colors as input wires). Number of Colors: 3. Product Size (mm): 100. Color Technology: RGB Configurable. Number of Tower Light Segments: 4. Color Option 1: Green. Connection: Pigtail QD. Lumens Color 1: 7.5. Quick Disconnect Type: M12. Color 1 – Wavelength/Color Temp/Coordinates: 532 nm. Color Option 2: Yellow. Lumens Color 2: 9.8. Color 2 – Wavelength/Color Temp/Coordinates: 578 nm. Color Option 3: Red. Lumens Color 3: 3.7. Color 3 – Wavelength/Color Temp/Coordinates: 621 nm. Max Current Color (mA): 150. Dimming Option: Programmable. Number of Input Pins/Conductors: 5. Audible Alarm Type: Programmable. Input Type: Bimodal (PNP/NPN). Max Audible Intensity (db at 1m): 94. Min Audible Intensity (db at 1m): 84. I/O Block Compatible: No. Audible Operating Frequency (kHz): 3.0. Max Input Response Time (ms): 250. Max Current – Audible Alarm (mA): 56. Physical Dimensions (LxWxH or DxH mm): 100.0 x 190.0 x 42.2. Environmental Rating: IP65; IP69K. Eye Shield: No. Max Op. Relative Humidity Non-Condensing (%): 95% @ 50°C. High Temperature (up to 100 C): 50. Min Op. Temperature (C): -40. Primary Housing Color: Black. Primary Window Material: Polycarbonate Diffused. Feature: Washdown Rated: No. Feature: Audible: Yes. Feature: Cascade: No. Feature: Chemical Resistant: No. Multi-Color Device: Simultaneous Colors On. Application: Traffic Light: No. Feature: Quick Disconnect: Yes. IO Link: No. Wireless: No. USB: No. Pro-Editor Compatible (Discrete): Yes
