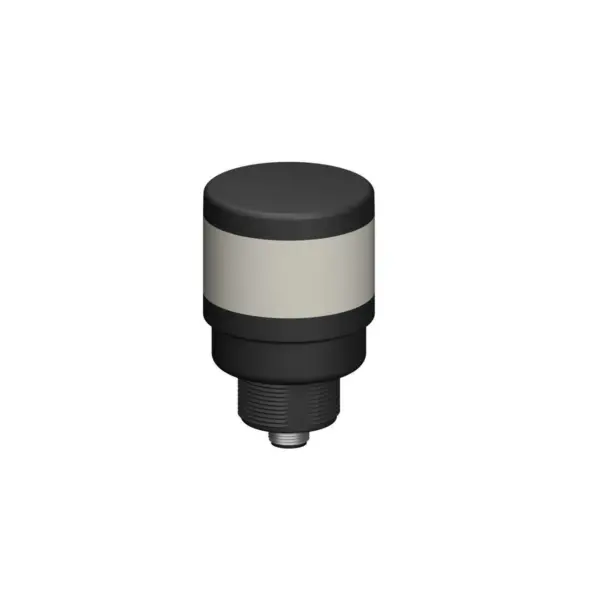

Banner Engineering TL50GQ

TL50 Tower Light: 1-Color Indicator. Part number: 10267. model: TL50GQ. part_number: 10267. list_price: 97 USD. is_new: 0. is_in_stock: 1. product_manual: —. BAN_NumberOfColors: 1. BAN_Audible: No. BAN_Connection: Integral QD. BAN_Supply_Voltage: 18-30 V dc / 24 V ac. BAN_LI_Color_Option_1: Green. BAN_LI_Color_Option_2: —. BAN_LI_Color_Option_3: —. BAN_LI_Color_Option_4: —. BAN_LI_Color_Option_5: —. BAN_LI_Color_Option_6: —. BAN_LI_Housing_color: Black. Power: DC or AC. PFM Input: No. Non-Illuminated: No. IP Rating: IP67. Display: No. NEMA / UL Type Rating: NEMA and UL 13. Supply Voltage: 18-30 V dc / 24 V ac. Item Status: RELEASED. Housing Style: Base Mount – Tower. Primary Housing Material: ABS. Indication: Yes. Illumination: No. Mounting Thread: M30 x 1.5. Color Input Control: Individual (One wire/color, same number of colors as input wires). Number of Colors: 1. Product Size (mm): 50. Color Technology: Standard LED. Number of Tower Light Segments: 1. Color Option 1: Green. Animation Option 1: Solid On. Connection: Integral QD. Lumens Color 1: 23.0. Quick Disconnect Type: M12. Color 1 – Wavelength/Color Temp/Coordinates: 528 nm. Max Current Color (mA): 45. Number of Input Pins/Conductors: 4. Input Type: Bimodal (PNP/NPN). I/O Block Compatible: No. Max Input Response Time (ms): 10. Physical Dimensions (LxWxH or DxH mm): 50.0 x 88.5. Environmental Rating: IP67. Eye Shield: No. Max Op. Relative Humidity Non-Condensing (%): 95% @ 50°C. High Temperature (up to 100 C): 50. Min Op. Temperature (C): -40. Storage Temp (C): -40 to 70. Primary Housing Color: Black. Primary Window Material: Polycarbonate Diffused. Feature: Washdown Rated: No. Feature: Audible: No. Feature: Cascade: No. Feature: Chemical Resistant: No. Feature: Illuminated: No. Multi-Color Device: Single Color On. Application: Traffic Light: No. Feature: Quick Disconnect: Yes. IO Link: No. Modbus RTU: No. Wireless: No. USB: No. Pro-Editor Compatible (Discrete): No. EPLAN Status: Published. EPLAN Original Sent Date: 09/27/2025
