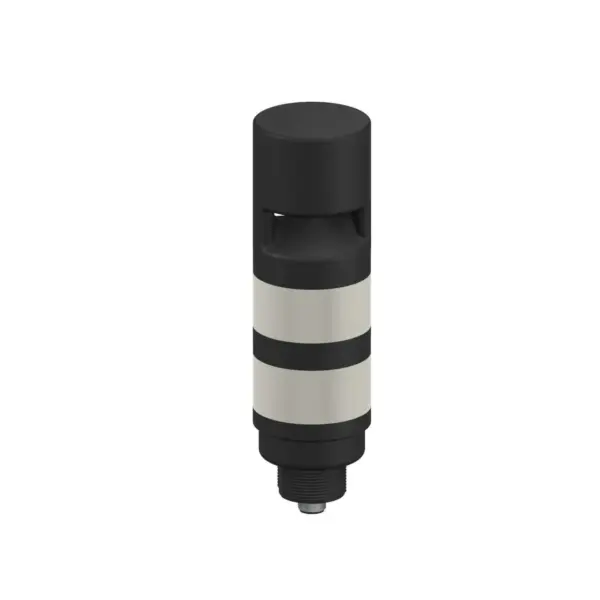

Banner Engineering TL502AOSKQ

TL50 Pro Tower Light with IO-Link Sealed Omnidirectional Audible, Standard Black Housing: 2 Lighted Segments. Part number: 804989. model: TL502AOSKQ. part_number: 804989. list_price: 359 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/205167.pdf. BAN_NumberOfColors: 2. BAN_Audible: Yes. Custom_Group_1455_1455: IO Link. BAN_Connection: Integral QD. BAN_LI_Housing_color: Black. BAN_LI_EnvironRating: IP67. BAN_PFM_Input: No. BAN_LI_Audible_Alarm_Type: Continuous. BAN_IndicationIntensity: —. BAN_CableLength: —. Power: DC. PFM Input: No. Non-Illuminated: No. IP Rating: IP67. Display: No. NEMA / UL Type Rating: NEMA and UL 13. Supply Voltage: 18-30 V dc. Item Status: RELEASED. Housing Style: Base Mount – Tower. Primary Housing Material: ABS. Indication: Yes. Illumination: No. Mounting Thread: M30 x 1.5. Color Input Control: Communication Protocol. Number of Colors: 2. Product Size (mm): 50. Color Technology: RGB IO-Link. Number of Tower Light Segments: 3. Color Option 1: RGB. Animation Option 1: Programmable. Connection: Integral QD. Quick Disconnect Type: M12. Max Current Color (mA): 100. Dimming Option: Programmable. Number of Input Pins/Conductors: 4. Audible Alarm Type: Continuous. Input Type: Communication Protocol. Max Audible Intensity (db at 1m): 99. Min Audible Intensity (db at 1m): 99. I/O Block Compatible: No. Audible Operating Frequency (kHz): 2.1. Max Input Response Time (ms): 20. Max Current – Audible Alarm (mA): 45. Physical Dimensions (LxWxH or DxH mm): 50.0 x 197.2. Environmental Rating: IP67. Eye Shield: No. Max Op. Relative Humidity Non-Condensing (%): 95% @ 50°C. High Temperature (up to 100 C): 50. Min Op. Temperature (C): -20. Primary Housing Color: Black. Primary Window Material: Polycarbonate Diffused. Feature: Washdown Rated: No. Feature: Audible: Yes. Feature: Cascade: No. Feature: Chemical Resistant: No. Feature: Illuminated: No. Multi-Color Device: Simultaneous Colors On. Application: Traffic Light: No. Feature: Quick Disconnect: Yes. IO Link: Yes. Wireless: No. USB: No. Pro-Editor Compatible (Discrete): No. EPLAN Status: Published. EPLAN Original Sent Date: 05/29/2025
