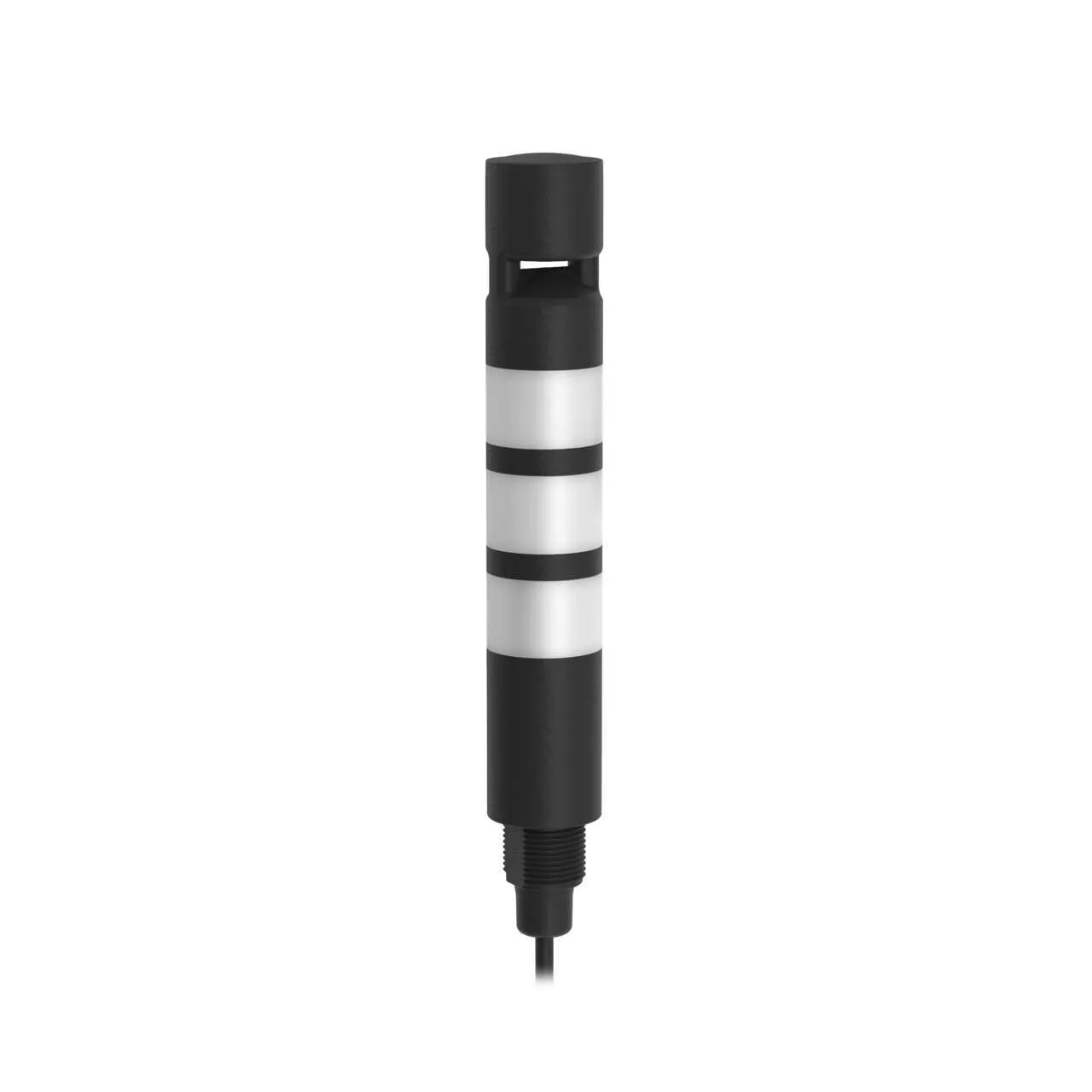

Banner Engineering TL30BYGRXXAXC1

TL30 Basic Tower Light; Black Housing: 3-Color Audible Indicator Voltage: 12-30 V dc; Environ. Rating: IP65 Input: Bimodal; Colors: Yellow Green Red 1.2 m (4 ft) Integral Cable. Part number: 811887. Power: DC. PFM Input: No. Non-Illuminated: No. Cable Length (m): 1.2. IP Rating: IP65. Display: No. NEMA / UL Type Rating: UL 4X. Supply Voltage: 12-30 V dc. Item Status: RELEASED. Housing Style: Base Mount – Tower. Primary Housing Material: Polycarbonate. Indication: Yes. Illumination: No. Mounting Thread: M22 x 1.5. Color Input Control: Individual (One wire/color, same number of colors as input wires). Number of Colors: 3. Product Size (mm): 30. Color Technology: Standard LED. Number of Tower Light Segments: 4. Color Option 1: Yellow. Animation Option 1: Solid On. Connection: Cable. Lumens Color 1: 6.5. Color 1 – Wavelength/Color Temp/Coordinates: 590 nm. Color Option 2: Green. Lumens Color 2: 7.5. Color 2 – Wavelength/Color Temp/Coordinates: 525 nm. Color Option 3: Red. Lumens Color 3: 2.5. Color 3 – Wavelength/Color Temp/Coordinates: 620 nm. Max Current Color (mA): 40. Number of Input Pins/Conductors: 5. Audible Alarm Type: Continuous. Input Type: Bimodal (PNP/NPN). Max Audible Intensity (db at 1m): 90. I/O Block Compatible: No. Audible Operating Frequency (kHz): 2.8. Max Input Response Time (ms): 1. Max Current – Audible Alarm (mA): 20. Physical Dimensions (LxWxH or DxH mm): 30.0 x 190.6. Environmental Rating: IP65. Eye Shield: No. Max Op. Relative Humidity Non-Condensing (%): 90% @ 50°C. High Temperature (up to 100 C): 50. Min Op. Temperature (C): -40. Storage Temp (C): -40 to 70. Primary Housing Color: Black. Primary Window Material: Polycarbonate Diffused. Feature: Washdown Rated: No. Feature: Audible: Yes. Feature: Cascade: No. Feature: Chemical Resistant: No. Multi-Color Device: Simultaneous Colors On. Application: Traffic Light: No. Feature: Quick Disconnect: No. Wireless: No. USB: No. EPLAN Status: Published. EPLAN Original Sent Date: 09/12/2024
