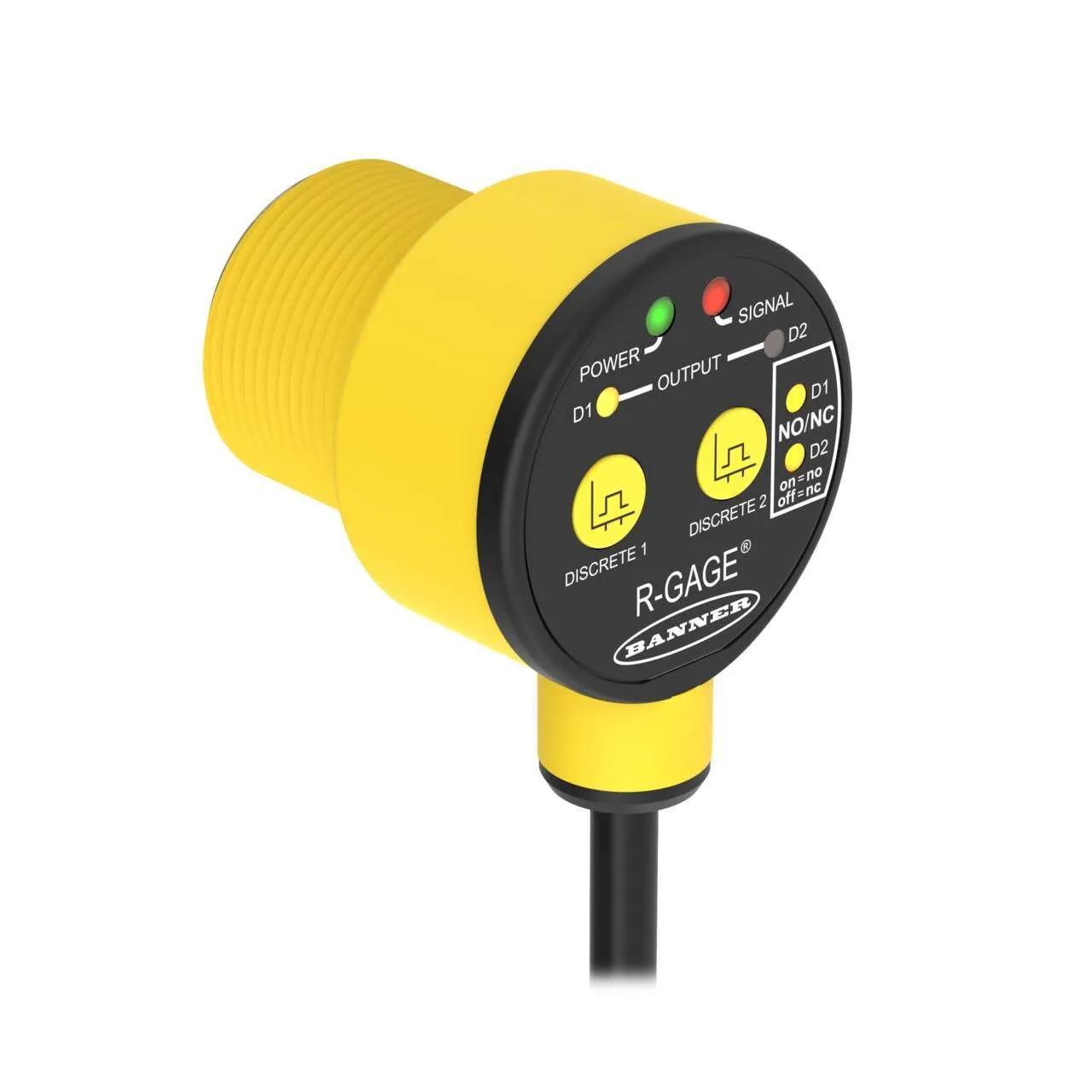

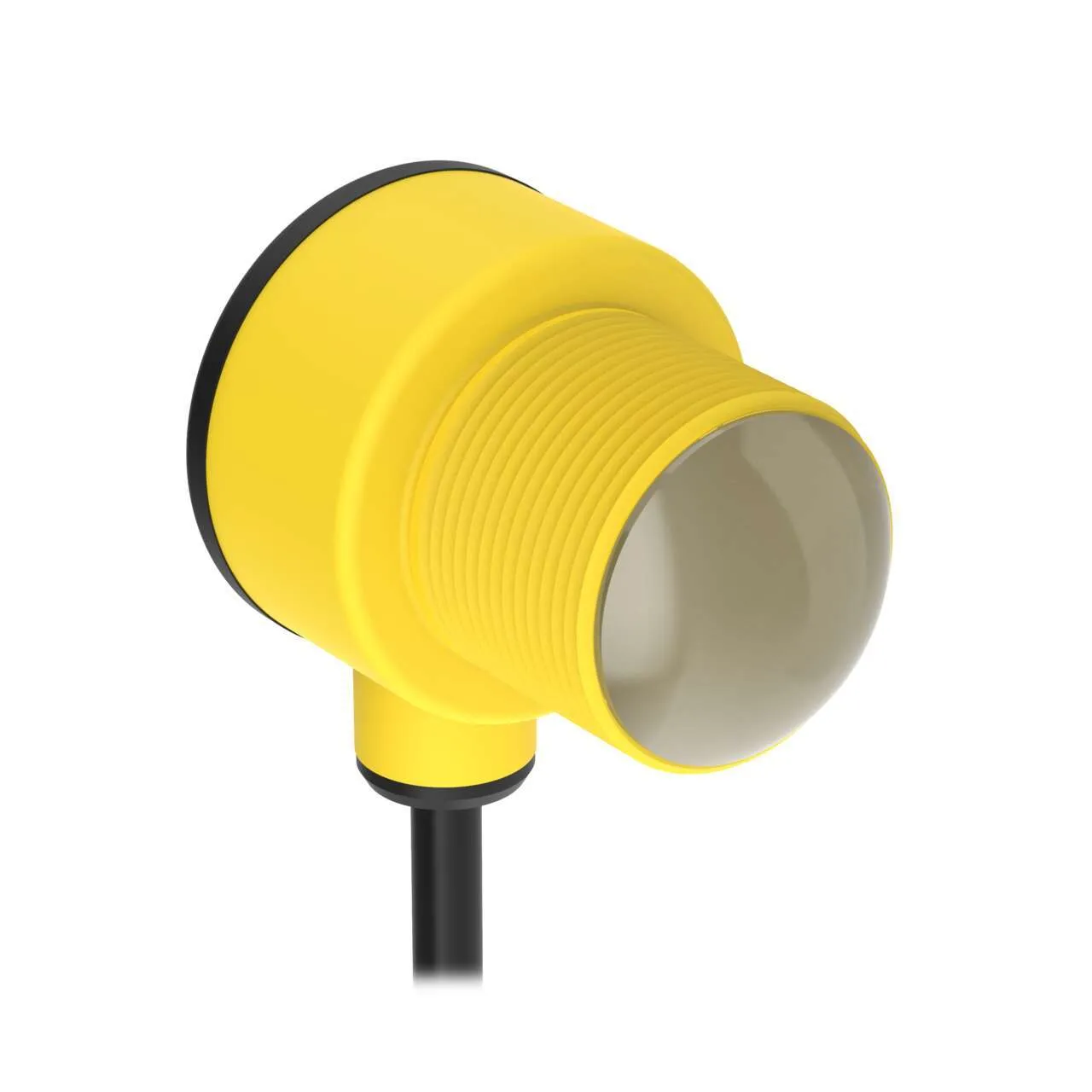

Banner Engineering T30R-1515-KDQP

T30R R-GAGE Series Radar Sensor. Part number: 808908. model: T30R-1515-KDQP. part_number: 808908. list_price: 716 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/217048.pdf. BAN_MI_MaxSensDist_LU: 15000. BAN_MI_MinSensDist_LU: 150. BAN_Radar_Beam_Pattern: 15 x 15. BAN_IO_General: Discrete. BAN_Connection: Pigtail QD. BAN_PFM_Output: Yes. BAN_Washdown_Rated: No. BAN_IPRating: IP67. Power: DC. PFM Output: Yes. Sensing Beam: Radar. Jam Detection: No. Cable Length (m): 0.15. Operating Frequency: 122 GHz. PC Configurable: Yes. IP Rating: IP67. NEMA / UL Type Rating: NEMA 4X. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Sensing Mode (General): Proximity. Sensing Mode (Detailed): Time of Flight. Housing Style: Barrel. Device Type: Sensor. Primary Housing Material: PBT. Input/Output: Discrete. Radar Beam Pattern (H x V °): 15 x 15. Connection: Pigtail QD. Quick Disconnect Type: M12. Max Sensing Distance (mm): 15000. Minimum Sensing Distance (mm): 150. Adjustments: Software; Push Button; Remote Teach. Number of Pins: 5. Discrete (Switched) Outputs: 2 NPN/PNP Configurable. Max Operating Temperature (C): 65. Min Operating Temperature (C): -40. Minimum Response Time (ms): 6. Barrel Thread: M30. Laser Control: No. Feature: Remote Teach: Yes. Feature: Washdown Rated: No. Feature: Clear Object Detection: Yes. Feature: Timing (Hold/Delay): Yes. Feature: Chemical Resistant: No. Feature: Pump-in/ Pump-out: No. Feature: Quick Disconnect: Yes. Feature: Health/Marginal Signal Output: No. Application: Ultrasonic: No. Common Ethernet Protocol: No. IO Link: Yes. RS-232: No. Wireless: No. Cert: US: Yes. Cert: Australia/New Zealand: Yes. Cert: European: Yes. Cert: Canada: Yes. Cert: Singapore: Yes. Cert: Thailand: Yes
