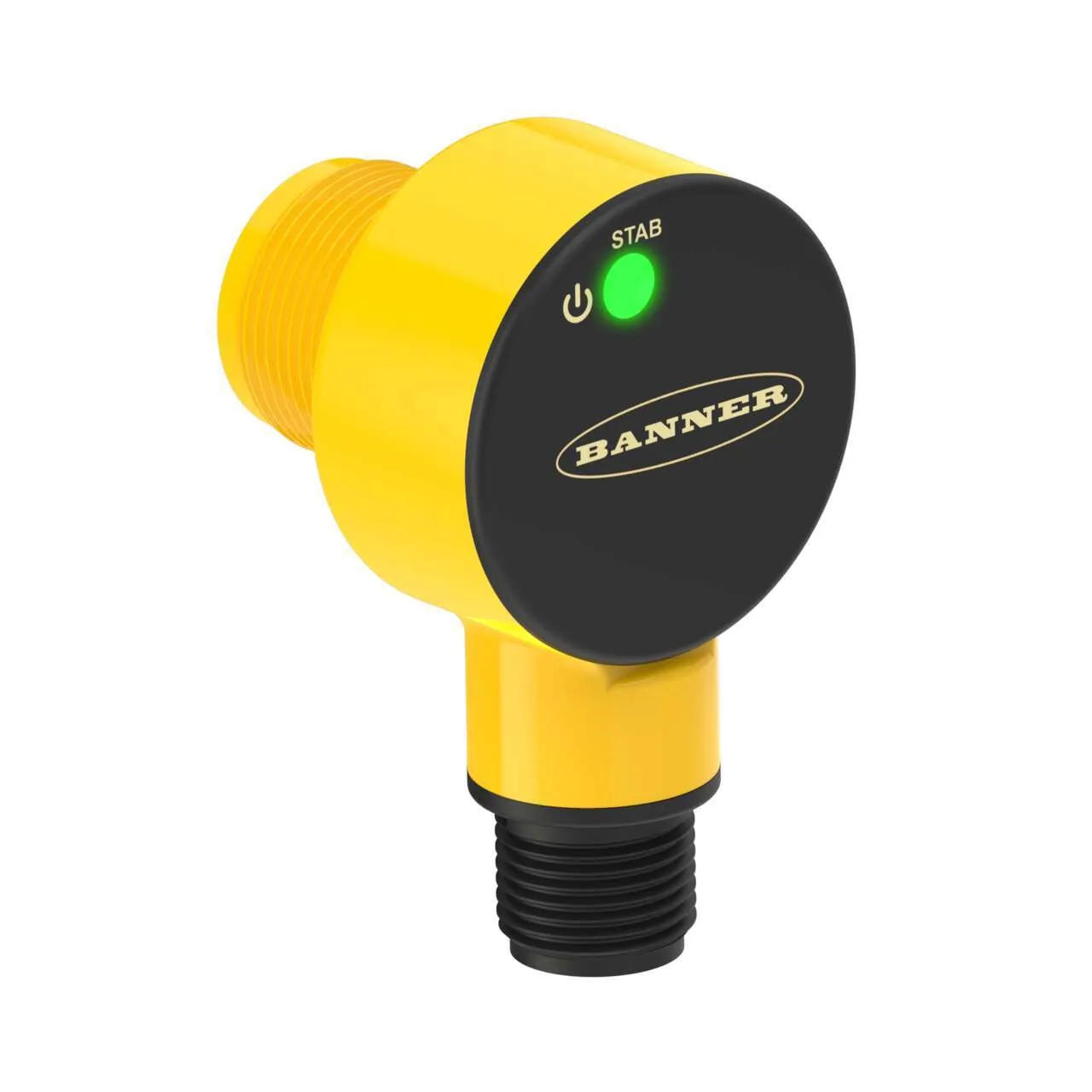

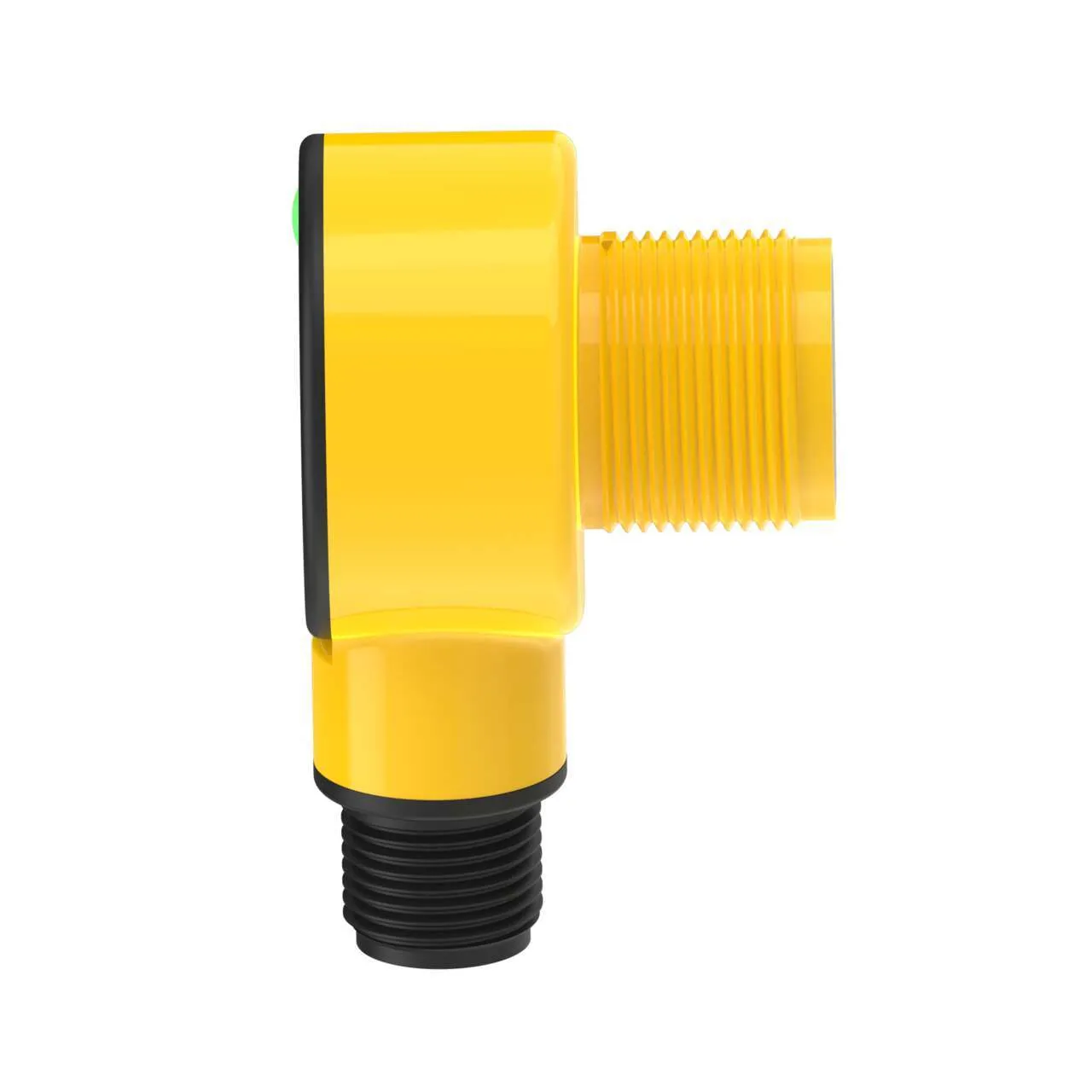

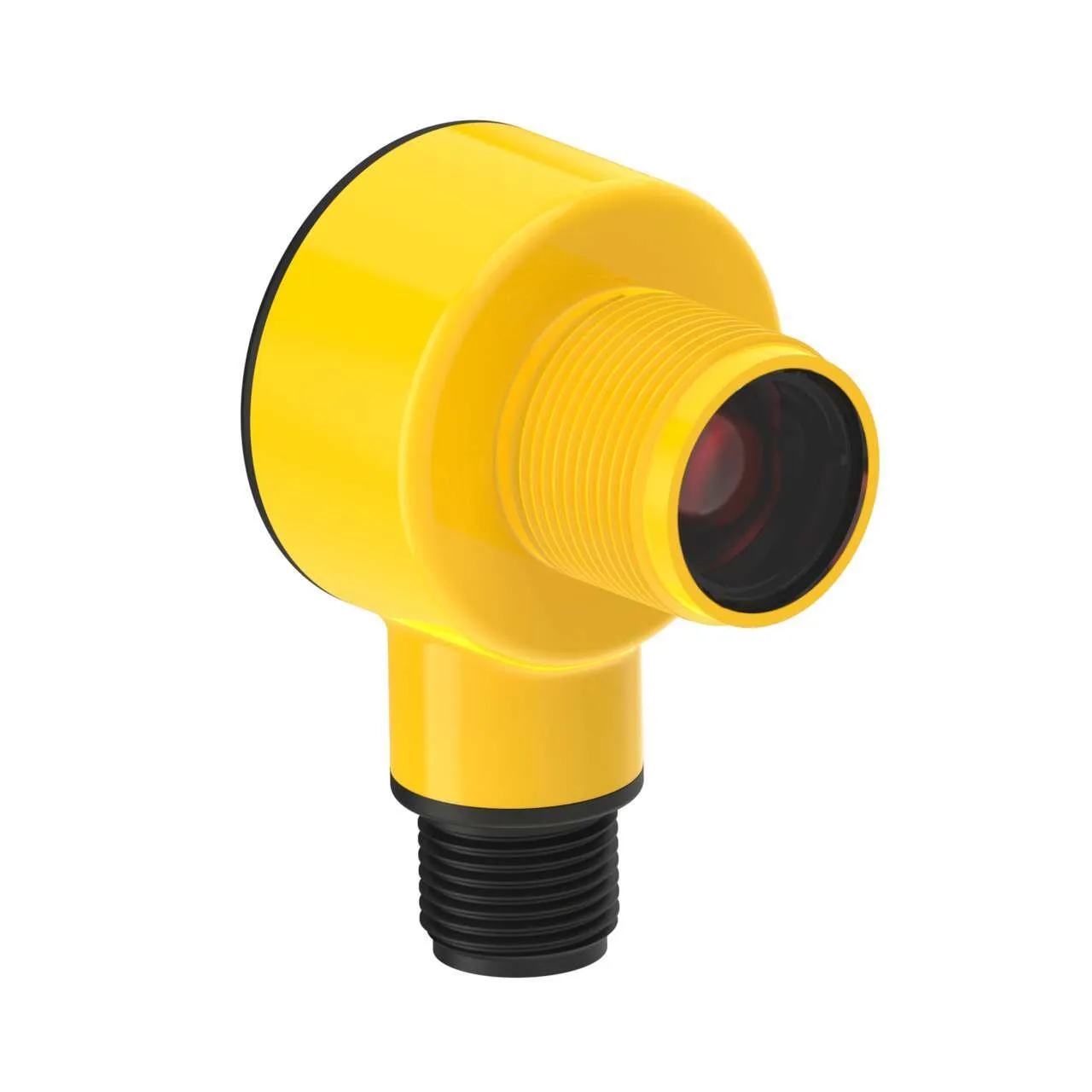

Banner Engineering T18-2NAELIR-Q8

T18-2 Series: IR Emitter; Long Range. Part number: 807637. model: T18-2NAELIR-Q8. part_number: 807637. list_price: 61 USD. is_new: 0. is_in_stock: 1. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/201875.pdf. BAN_Sensing_Mode_General: Opposed. BAN_Sensing_Mode_Detailed: Emitter. BANSensors_SensRange: 25000. BANSensors_Output: —. BAN_Connection: Integral QD. BAN_QDType: M12. BAN_CableLength: —. BAN_SensingBeam: Infrared LED. BANSensors_Adjustment: N/A. BAN_Small_Spot: —. Power: DC. Sensing Beam: Infrared LED. IP Rating: IP67, IP68, IP69K. NEMA / UL Type Rating: NEMA 4X. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Sensing Mode (General): Opposed. Sensing Mode (Detailed): Emitter. Housing Style: Barrel. Primary Housing Material: Thermoplastic. Max Sensing Distance (mm): 25000. Connection: Integral QD. Quick Disconnect Type: M12. Operation: N/A. Min Op. Temperature (C): -40. Max Op. Temp. (C): 70. Output response time (ms): N/A. Special Feature: Intrinsically Safe: No. Special Feature: Remote Teach: No. Special Feature: Water Detection: No. Sensing Beam Wavelength: 850. Delay at Power-up (ms): 500. Repeatability (µs): 170. Number of Pins: 2. Max Op. Relative Humidity [%]: 95% @ 50°C. Lens Material: Acrylic. Adjustments: N/A. Barrel Diameter (mm): 18. Indicator: Indicator LEDs. Opposed Mode Emitter/Receiver: Emitter. Feature: Washdown Rated: Yes. Feature: Clear Object Detection: No. Feature: Timing (Hold/Delay): No. Feature: Ecolab Certified: Yes. Feature: Encapsulated: Yes. Feature: Audible: No. Feature: Chemical Resistant: Yes. Feature: Quick Disconnect: Yes. Feature: Health/Marginal Signal Output: No. DeviceNet: No. EPLAN Status: Published. EPLAN Original Sent Date: 10/27/2022
