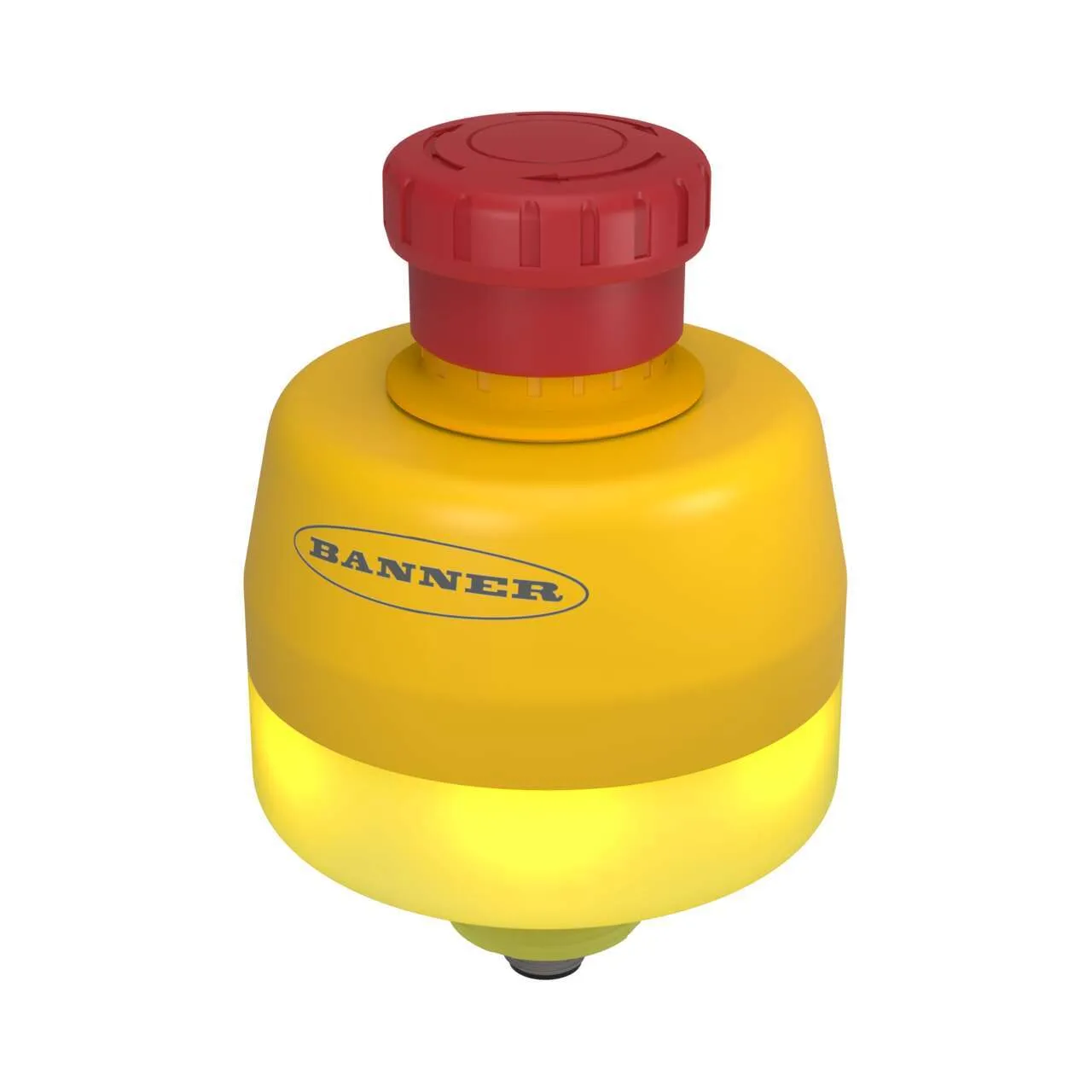

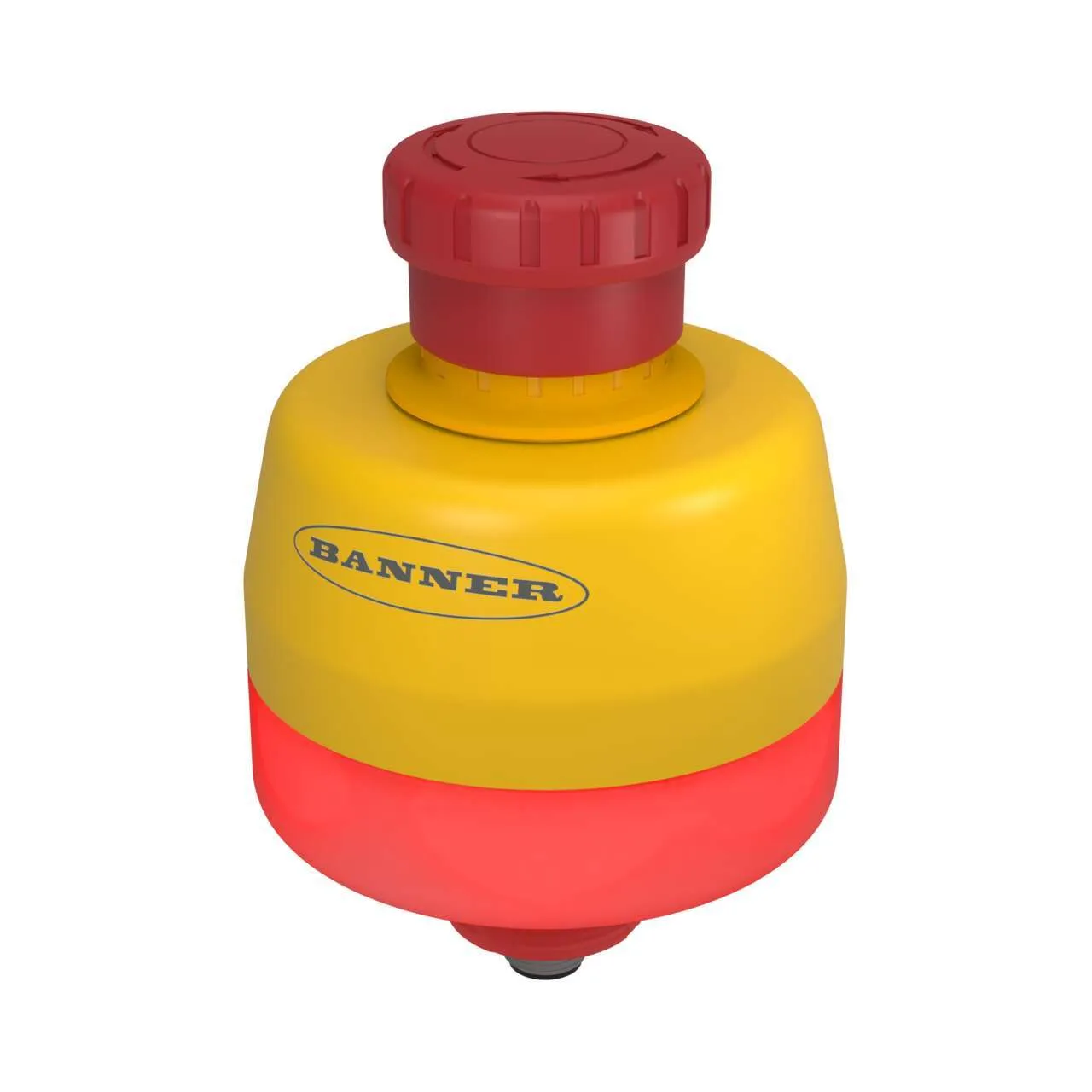

Banner Engineering SSA-EB1PLYR-0DECQ8

Emergency Stop with ISD: 30 mm Mount with 40 mm Push Button. Part number: 808876. model: SSA-EB1PLYR-0DECQ8. part_number: 808876. list_price: 269 USD. is_new: 0. is_in_stock: 1. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/215157.pdf. BAN_InSeriesDiagnostics: Yes. BAN_Illuminated: Yes. BAN_Safety_ES_RP_IlluminType: Base. BAN_Safety_ES_RP_Armed_Color: Yellow. BAN_Safety_ES_RP_Actuated_Colo: Red – Flash. BAN_Washdown_Rated: No. BAN_Actuation: Twist-to-Release. BAN_Safety_ES_RP_Button_Dia: 40. BAN_Safety_ES_RP_ButtonShroud: No. Connection Type: M12. Armed Color (Solid): Yellow. Actuated Color: Red – Flash. Min Operating Temperature (C): -25. Max Operating Temperature (C): 50. Illumination Type: Base. Button Shroud: No. ISD Connect Compatible: Yes. IP Rating: IP65. Supply Voltage: 24 V dc. Item Status: RELEASED. Housing Style: Base. Device Type: Push Button. Primary Housing Material: Polycarbonate. In-Series Diagnostics: Yes. Actuation: Twist-to-Release. Connection: Integral QD. Quick Disconnect Type: M12. Feature: Washdown Rated: No. Feature: Illuminated: Yes. Feature: Lockable: No. Feature: Quick Disconnect: Yes. Mounting Thread/Style: 30 mm. Contact Quantity: 2 NC OSSD. Contact Rating: 24 V dc @ 0.1 A each. Button Diameter (mm): 40. Actuator/Button Material: Thermoplastic. Dimensions (HxWxD mm ): 120 x 80. EPLAN Status: Published. EPLAN Original Sent Date: 10/18/2024
