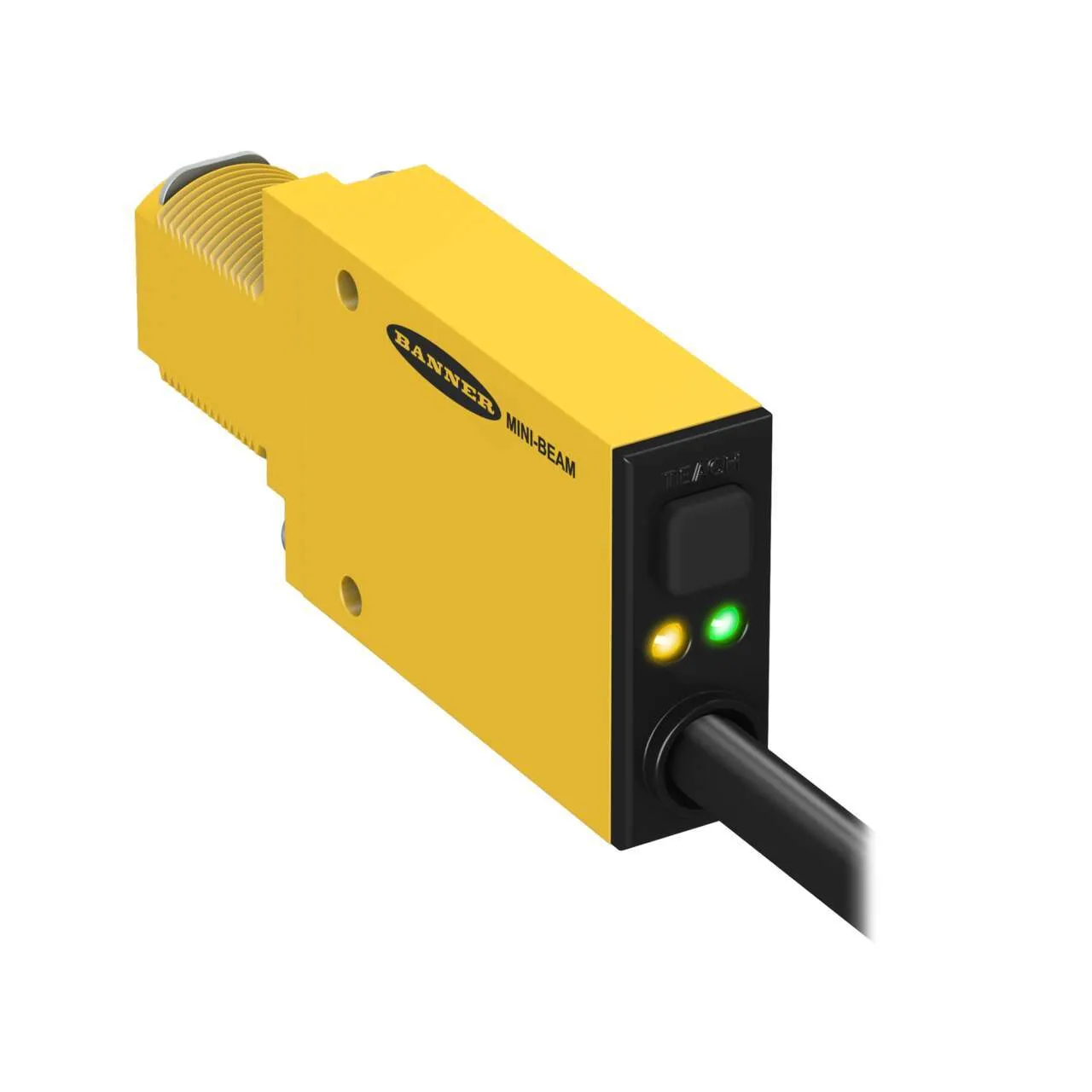

Banner Engineering SME312FVG

MINI-BEAM EXPERT: Visible Green Glass Fiber Optic. Part number: 54625. model: SME312FVG. part_number: 54625. list_price: 195 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/55214.pdf. BAN_Housing_Style: Rectangular w/M18 Mount. BANSensors_FOA_FiberType: Glass Only. BANSensors_FOA_Output: Bipolar (NPN & PNP). BANSensors_FOA_SF_Intrinsicall: No. BAN_Connection: Cable. BAN_QDType: —. BAN_CableLength: 2. Power: DC. Cable Length (m): 2. IP Rating: IP67. Accepts Fiber Termination Type: Glass Fiber Termination. NEMA / UL Type Rating: NEMA 4X. Item Status: RELEASED. Housing Style: Rectangular w/M18 Mount. Primary Housing Material: Thermoplastic. Input/Output: Discrete. Color LED – Amplifiers: Green. Fiber Type: Glass Only. Output: Bipolar (NPN & PNP). Connection: Cable. Output Type (Specific): Single Discrete. Repeatability (µs): 100. Number of Pins: 5. Max Op. Temperature (C): 70. Min Op. Temperature (C): -20. Max Op. Relative Humidity (%): 90% @ 50°C. Special Feature: Remote Teach: Yes. Intrinsically Safe: No. Adjustments: Teach Button. Power Supply/Supply Voltage: 10-30 V dc. Delay at Power-up (ms): 1000. Indicator Display Type: Indicator LEDs. Minimum response time (ms): .5. Special Feature: Bussable Power: No. Feature: Washdown Rated: No. Feature: Timing (Hold/Delay): No. Feature: Audible: No. Feature: Quick Disconnect: No. Feature: Health/Marginal Signal Output: No. Housing Material: Thermoplastic. EPLAN Status: Published. EPLAN Original Sent Date: 02/15/2024
