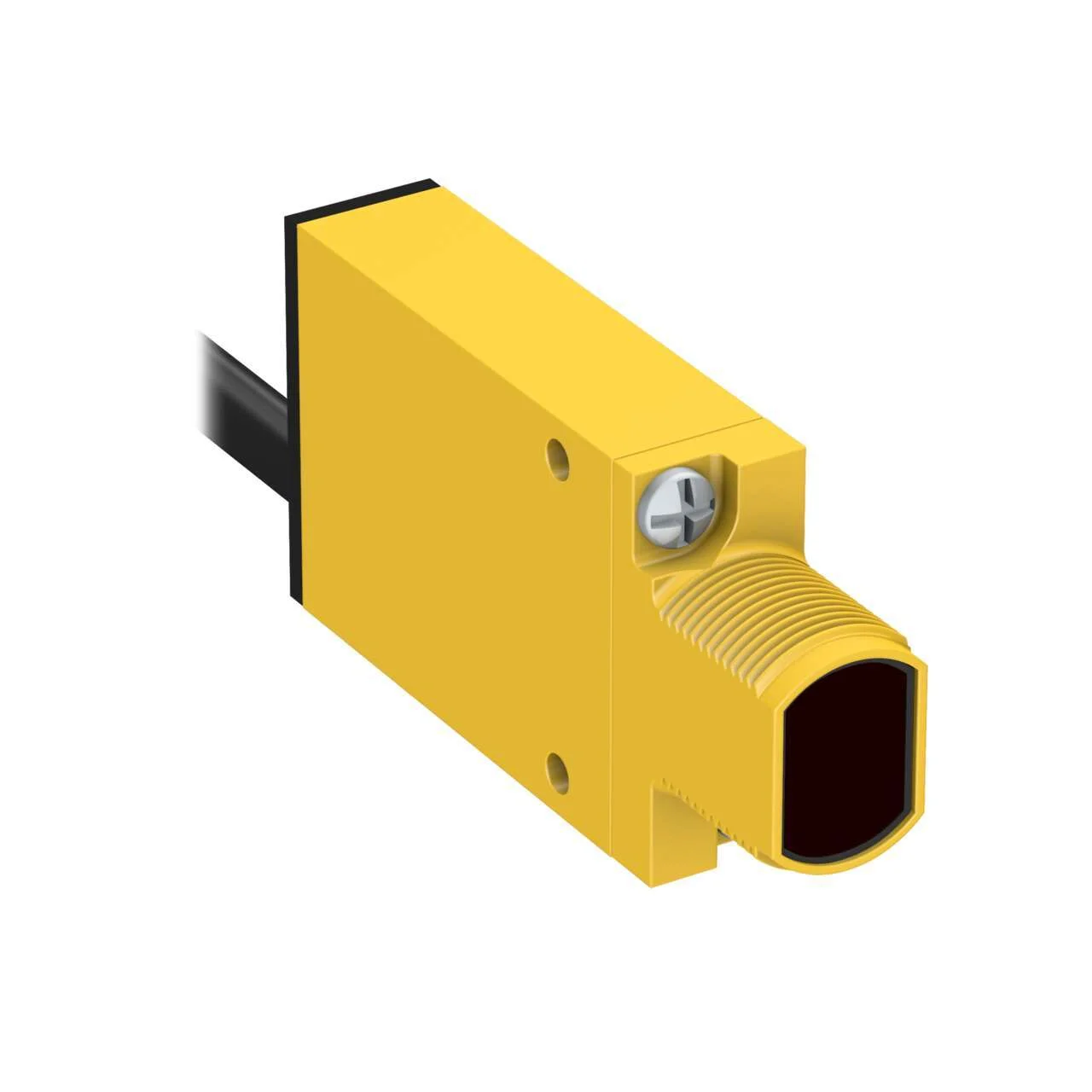

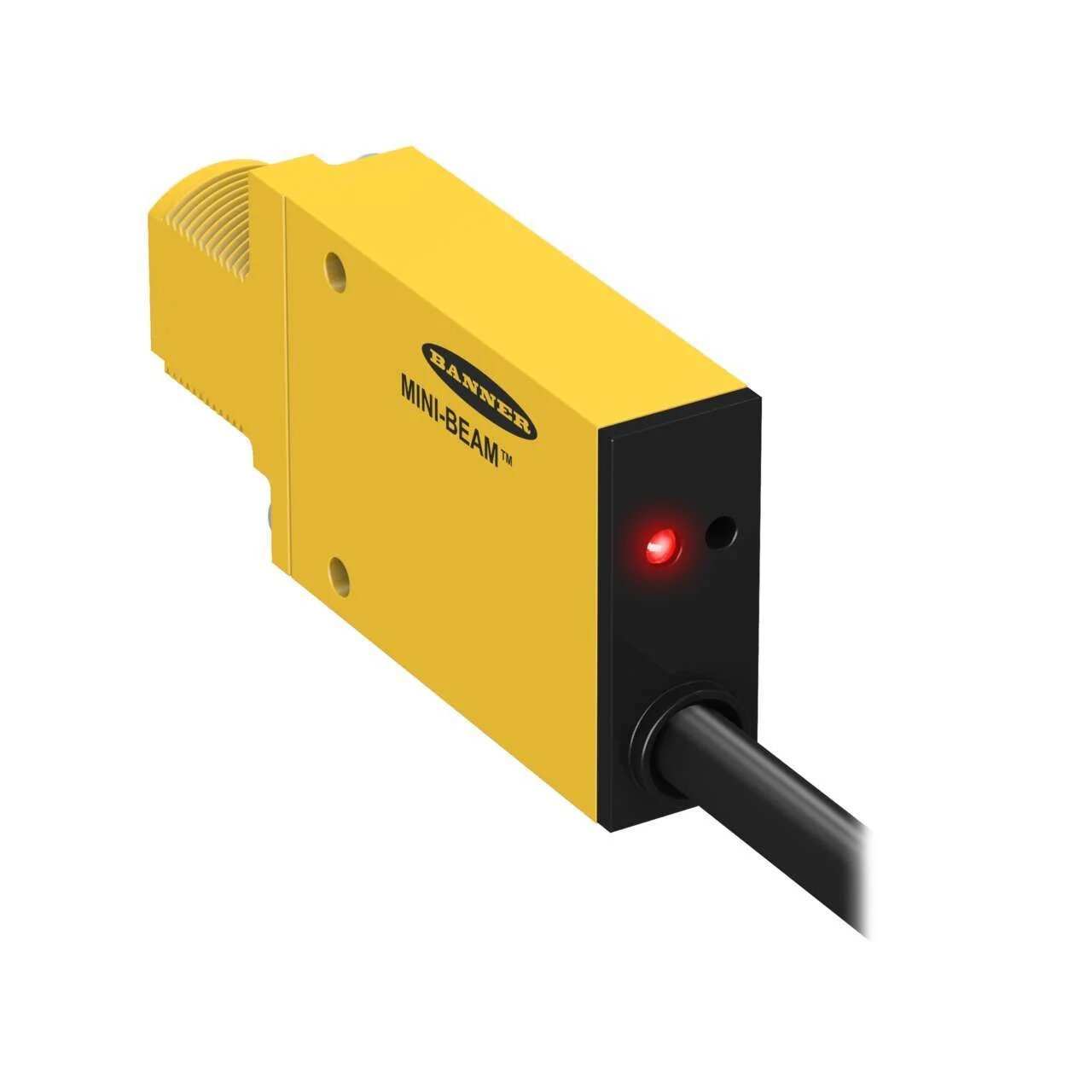

Banner Engineering SMA31EPDQDP
MINI-BEAM: Clear Plastic Detection Emitter
Range: 0 – 0.3 m; Input: 24-240 V ac
Output: Not Applicable
150 mm (6 in) M12 Pigtail QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MINI-BEAM: Clear Plastic Detection Emitter
Range: 0 – 0.3 m; Input: 24-240 V ac
Output: Not Applicable
150 mm (6 in) M12 Pigtail QD
Specification
| Power | AC |
|---|---|
| Sensing Beam | Visible Red LED |
| Cable Length (M) | 0.15 |
| Ip Rating | IP67 |
| Nema / Ul Type Rating | NEMA 4X |
| Supply Voltage | 24-240 V ac |
| Item Status | RELEASED |
| Sensing Mode (General) | Opposed |
| Sensing Mode (Detailed) | Emitter |
| Housing Style | Rectangular w/M18 Mount |
| Primary Housing Material | Thermoplastic |
| Max Sensing Distance (Mm) | 300 |
| Connection | Pigtail QD |
| Quick Disconnect Type | 1/2 in. (Micro) |
| Operation | N/A |
| Min Op. Temperature (C) | -20 |
| Max Op. Temp. (C) | 70 |
| Sensing Beam Wavelength | 650 |
| Repeatability (µS) | 300 |
| Number Of Pins | 3 |
| Max Op. Relative Humidity [%] | 90% @ 50°C |
| Lens Material | Acrylic |
| Adjustments | Potentiometer |
| Barrel Diameter (Mm) | 18 |
| Indicator | LEDs |
| Opposed Mode Emitter/Receiver | Emitter |
| Feature: Washdown Rated | No |
| Feature: Clear Object Detection | Yes |
| Feature: Timing (Hold/Delay) | No |
| Feature: Encapsulated | Yes |
| Feature: Chemical Resistant | No |
| Feature: Quick Disconnect | Yes |
| Feature: Health/Marginal Signal Output | No |
| Device Net | No |
