Banner Engineering SLPP25-1250

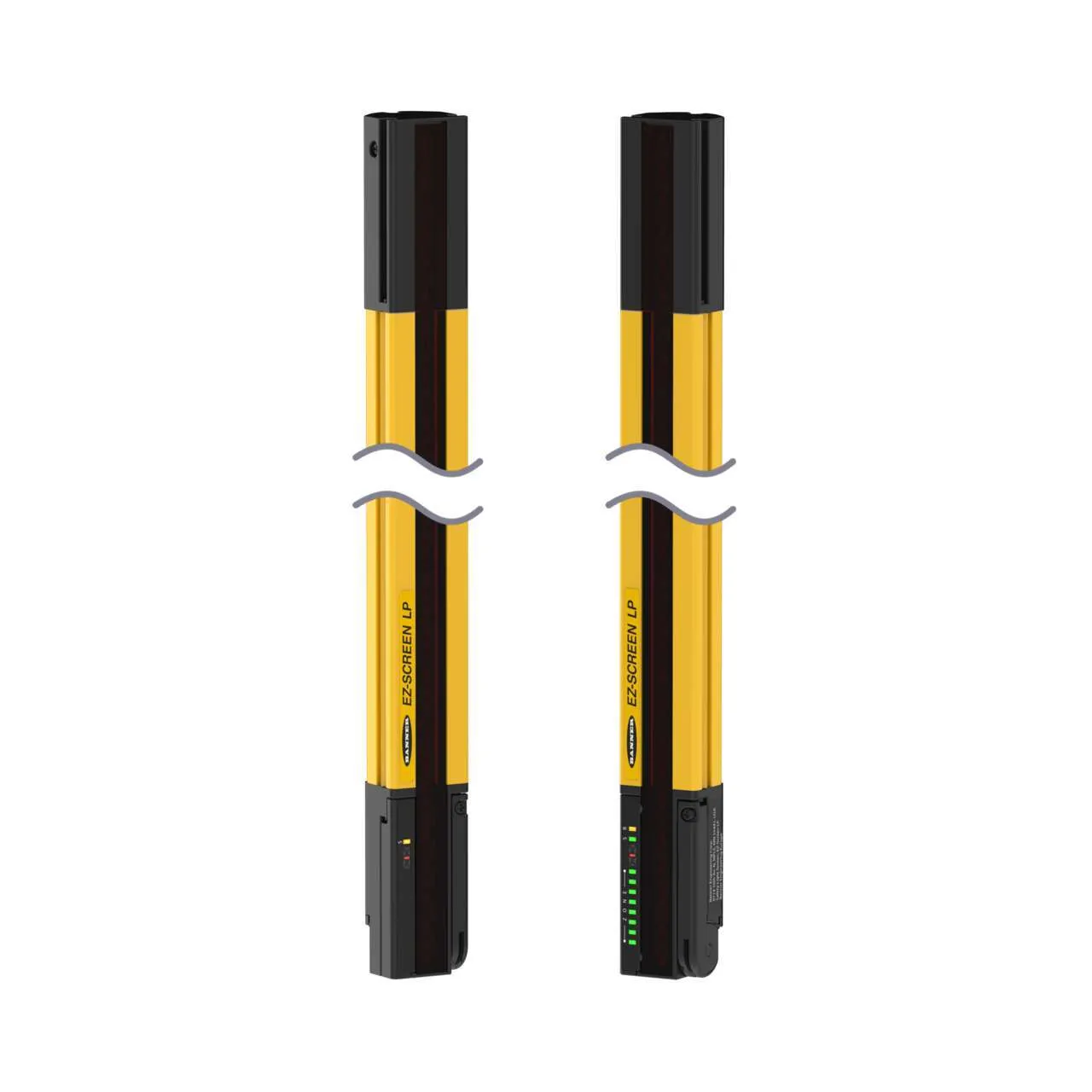

SLPP25-1250 EZ-SCREEN Low Profile Pair. Part number: 83789. model: SLPP25-1250. part_number: 83789. list_price: 4087 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
SLPP25-1250 EZ-SCREEN Low Profile Pair. Part number: 83789. model: SLPP25-1250. part_number: 83789. list_price: 4087 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/140044.pdf. BAN_Safety_LC_Resolution: 25. BAN_Safety_DefinedArea: 1250. BAN_Cascade: No. BAN_Safety_LC_Conn_Type: Removable Disconnect. BAN_Integrated_Muting: No. BAN_ESD_Safe: No. Low Profile: Yes. Max Operating Range (m): >4 – 950 –
Specification
| Model |
SLPP25-1250 |
|---|---|
| Part_number |
83789 ,https://www.bannerengineering.com/us/en/products/part.83789.html |
| List_price |
4087 USD |
| Is_new |
0 |
| Is_in_stock |
0 |
| Product_manual |
https://info.bannerengineering.com/cs/groups/public/documents/literature/140044.pdf |
| BAN_Safety_LC_Resolution |
25 |
| BAN_Safety_DefinedArea |
1250 |
| BAN_Cascade |
No |
| BAN_Safety_LC_Conn_Type |
Removable Disconnect |
| BAN_Integrated_Muting |
No |
| BAN_ESD_Safe |
No |
| Low Profile |
Yes |
| Max Operating Range (m) |
>4 – <=8 |
| Defined Area Height Range (mm) |
>950 – <=1300 |
| IP Rating |
IP65 |
| Supply Voltage |
24 V dc |
| Item Status |
RELEASED |
| Primary Housing Material |
Aluminum |
| Safety Level |
Type 4 |
| Effective Aperture Angle |
Type 4 Per IEC 61496-2 |
| Connector Type |
Removable Disconnect |
| Defined Area Height (mm) |
1250 |
| Dimensions WxD (mm) |
28 x 26 |
| Overall Length (mm) |
1250 |
| External Monitoring Device |
1 or 2 Channel |
| Fixed Blanking |
Yes |
| Housing Finish |
Yellow Polyester |
| Operating Distance (m) |
0.1 – 7 |
| Operating Temperature |
0 to +55 deg. C; RH 95% |
| PL Rating |
Ple |
| Recovery Time |
33-220 / 109-800 |
| Resolution (mm) |
25 |
| Reduced Resolution |
Yes |
| Response Time |
31.5 |
| SIL Rating |
SIL3; CL3 |
| Electrical Safety Class |
III |
| Scan Code |
Selectable |
| Shock |
10g at 16ms (6000 cycles) |
| Short Protection |
Yes |
| System Type |
Emitter/Receiver Pair |
| Vibration |
10-55 Hz at 0.35 mm |
| Auxiliary Output |
Yes |
| Fault Output |
Yes |
| Housing Material |
Aluminum; Zinc; Acrylic |
| OSSD Rating |
24 V dc at 0.5 A each |
| Supply Current |
210 mA max. |
| Trip/Latch Output |
Selectable |
| Test Input |
Yes |
| Feature: Washdown Rated |
No |
| Feature: Cascade |
No |
| Feature: End-to-End Sensing |
Yes |
| Feature: ESD Safe |
No |
| Feature: Integral Muting |
No |
