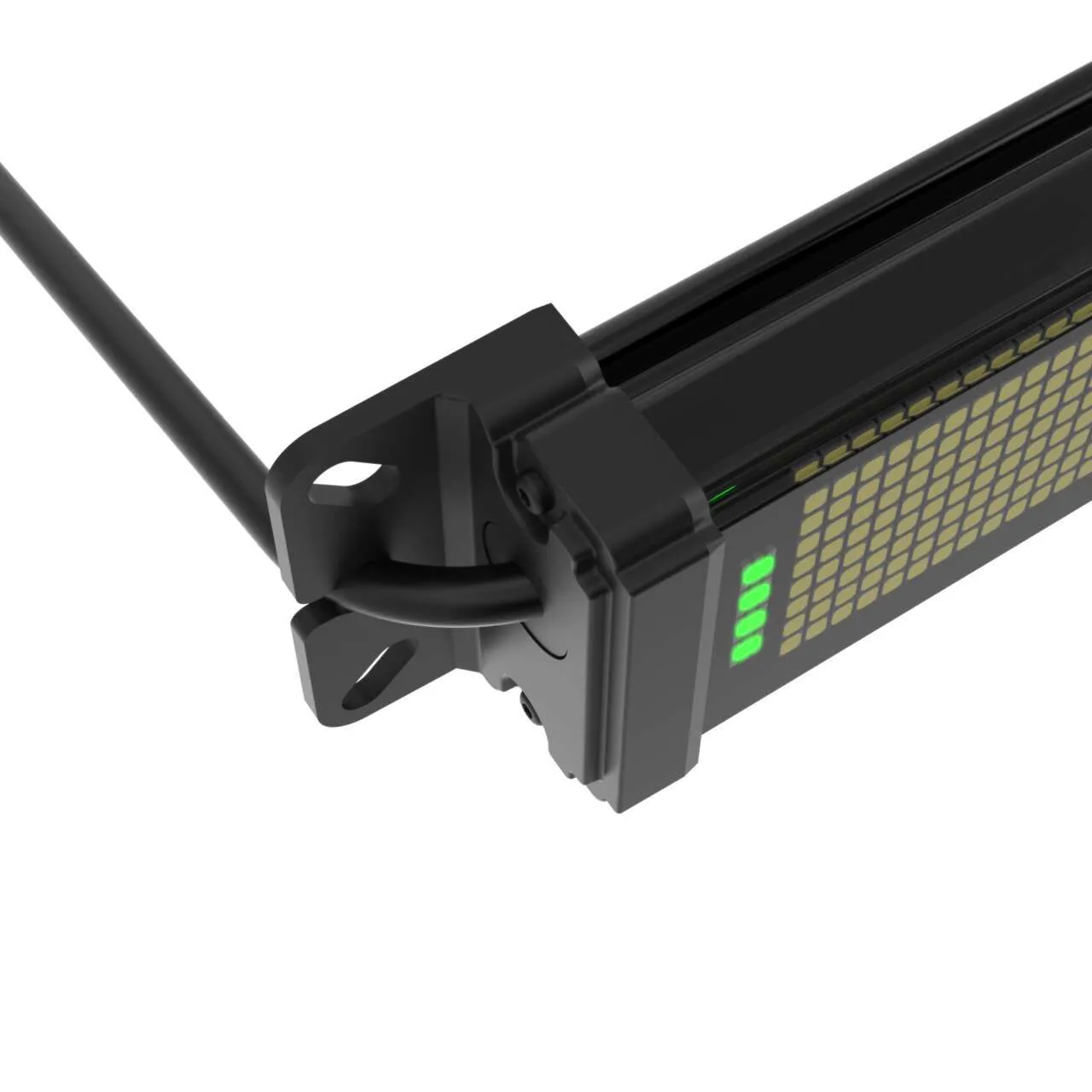

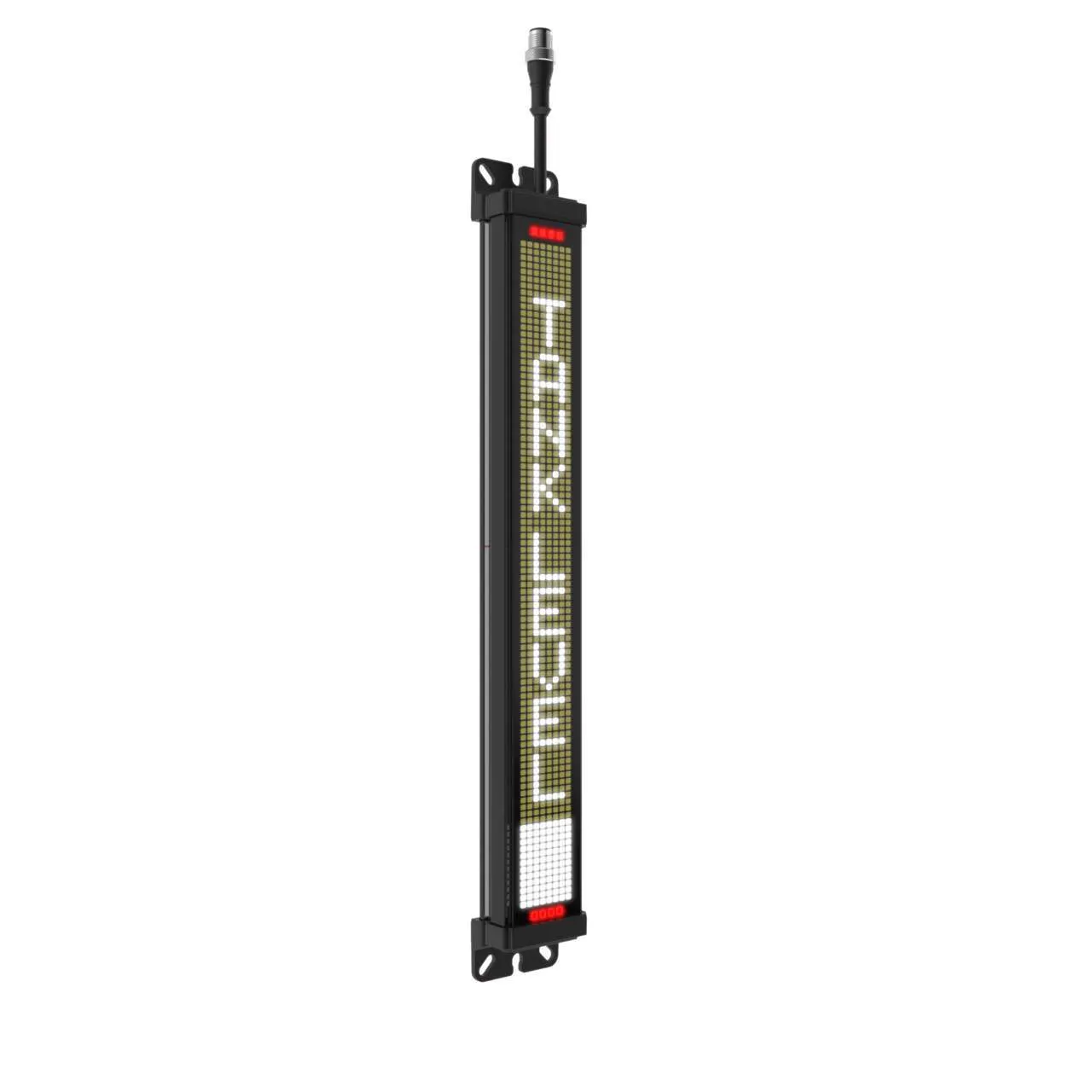

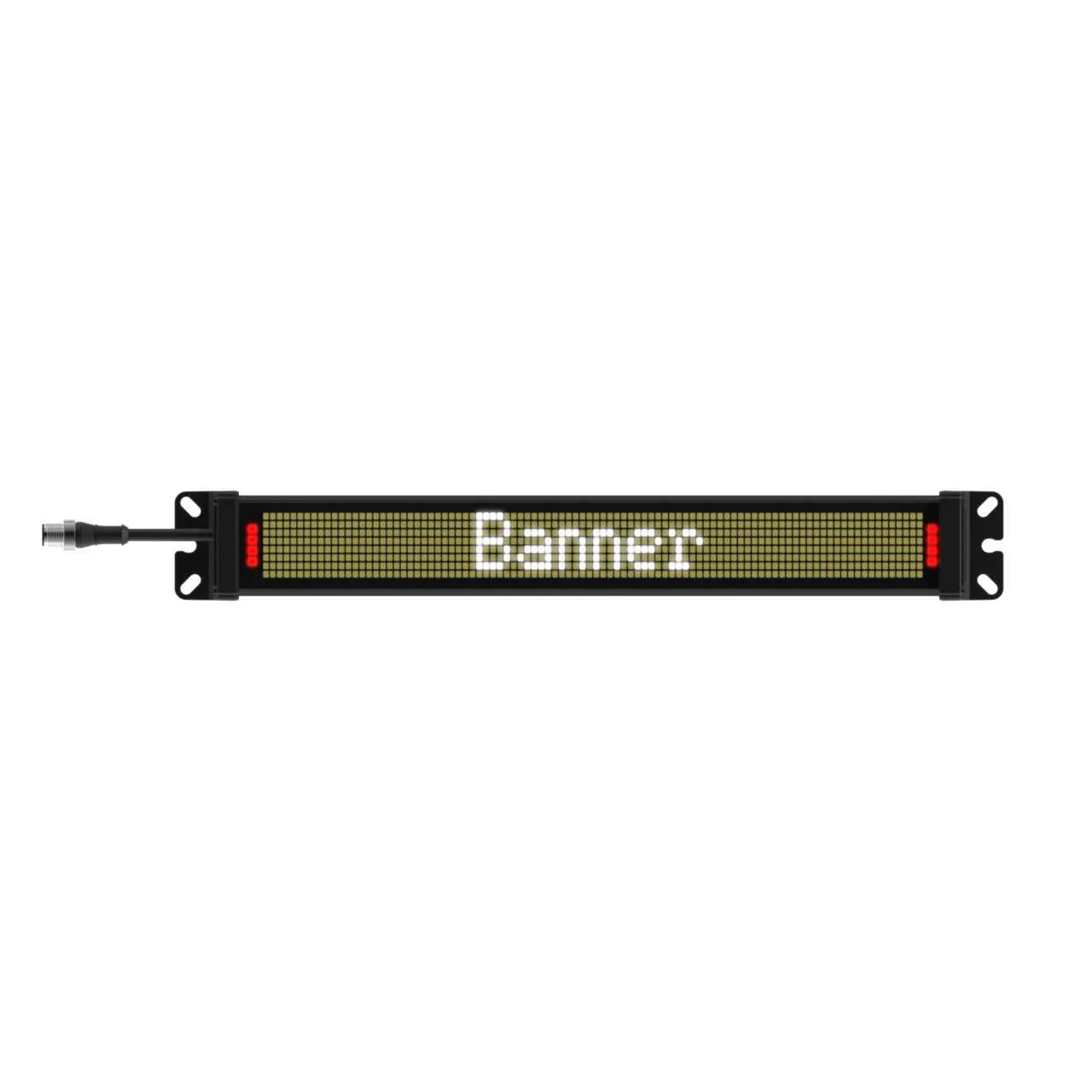

Banner Engineering SD50P300WKQP

SD50 Status Display with IO-Link. Part number: 817045. model: SD50P300WKQP. part_number: 817045. list_price: 314 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/242037.pdf. BAN_Wireless_RadioFrequency: —. BAN_CommProtocols_ProEditor: No. BAN_CommProtocols_IOLink: Yes. BAN_CommProtocols_ModbusRTU: No. BAN_CommProtocols_Wireless: No. Power: DC. IP Rating: IP65. Ships with Battery: No. Display: Yes. Item Status: RELEASED. Primary Housing Material: Polycarbonate. Indication: Yes. Color Input Control: Multiple (One or more wires/color, enables more colors than input wires). Number of Colors: 14. Product Size (mm): 50. Color Technology: RGB Configurable. Color Option 1: White. Animation Option 1: Programmable. Connection: Integral QD. Quick Disconnect Type: M12. Wire Selectable Function: Programmable. Number of Input Pins/Conductors: 5. Array Length (mm): 300. Physical Dimensions (LxWxH or DxH mm): 325x50x28. High Temperature (up to 100 C): 60. Min Op. Temperature (C): -20. Storage Temp (C): -40 to 70. Primary Housing Color: Black. Primary Window Material: Polycarbonate. Feature: Washdown Rated: Yes. Feature: Cascade: No. IO Link: Yes. Modbus RTU: No. Wireless: No. Pro-Editor Compatible (Discrete): No. EPLAN Status: Published. EPLAN Original Sent Date: 02/14/2025
