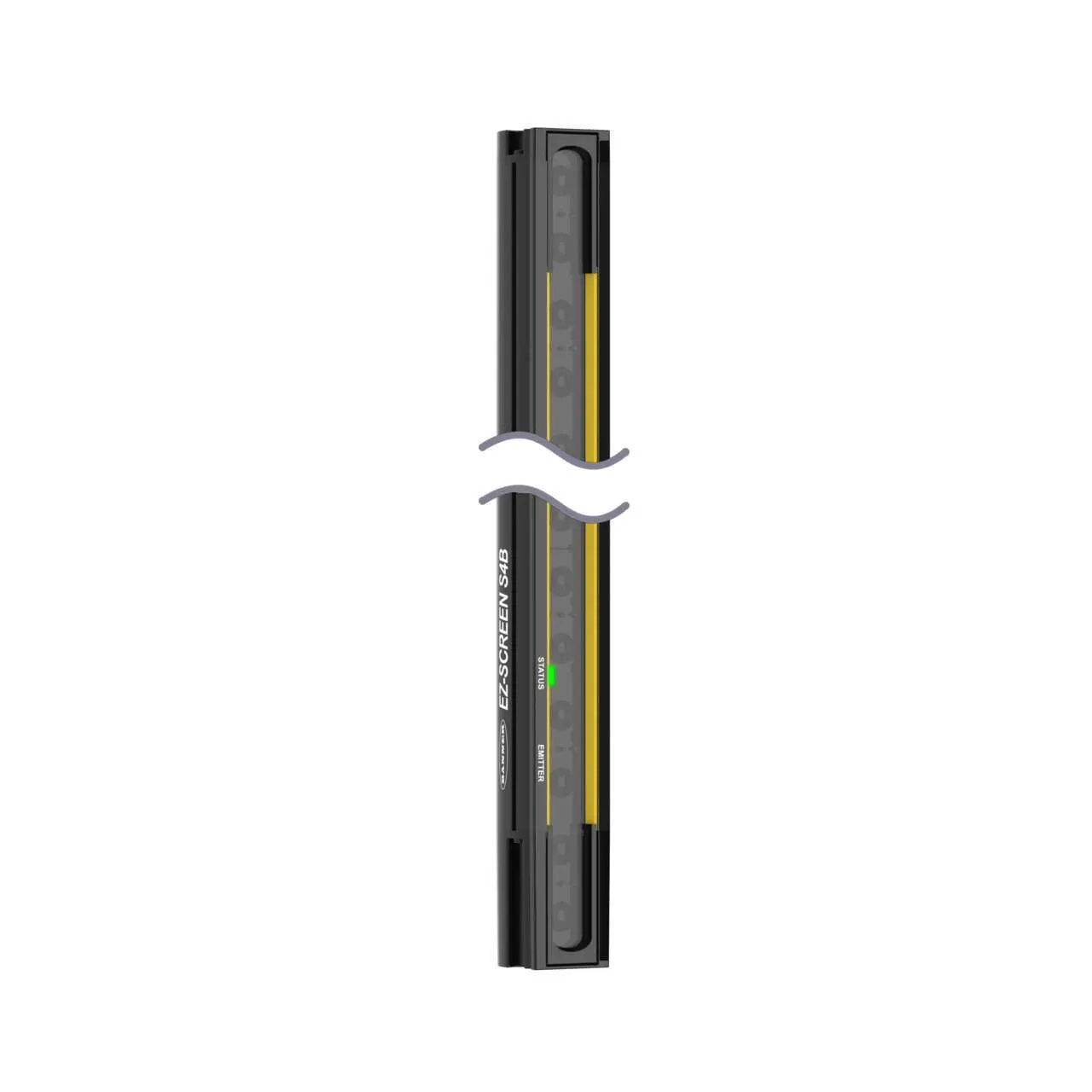

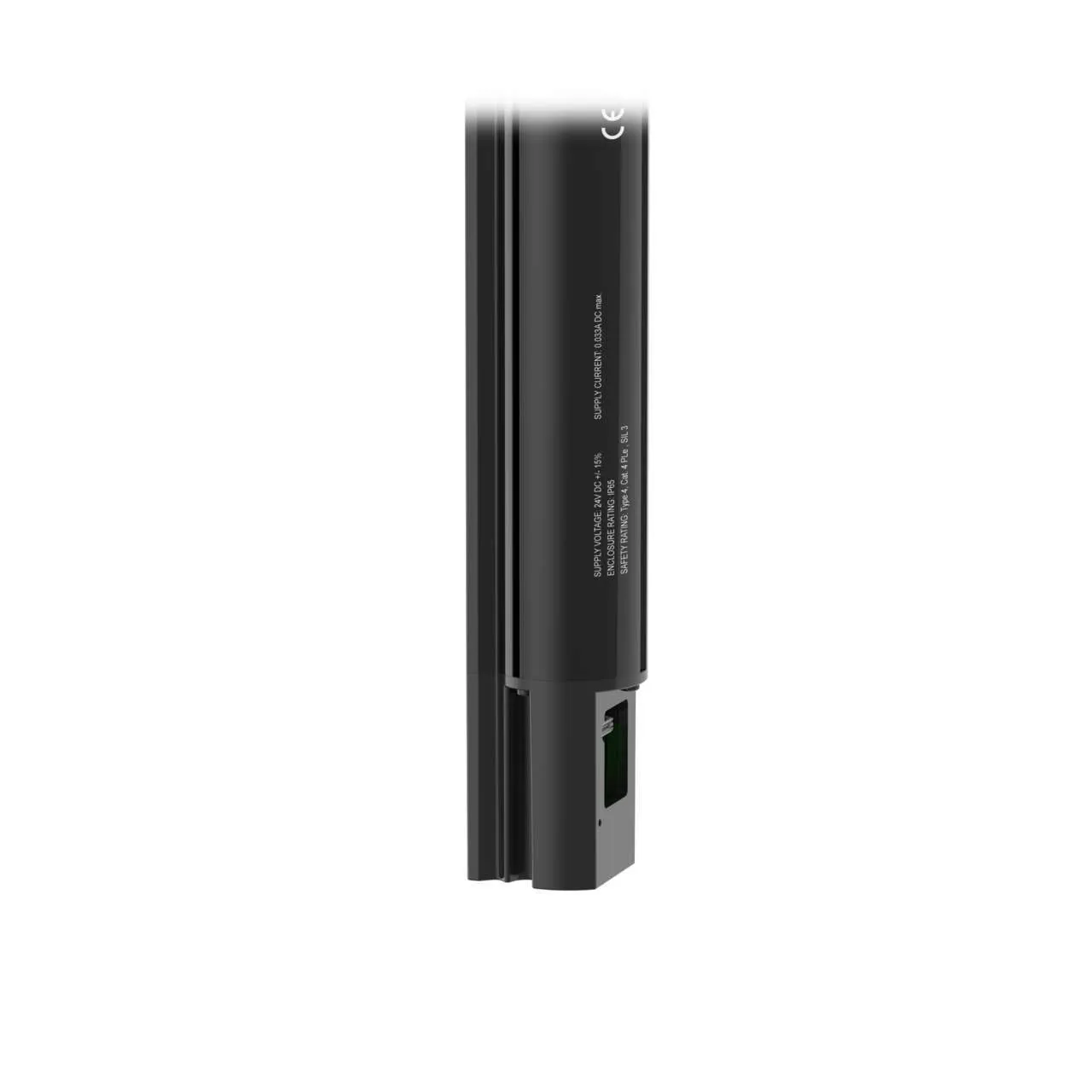

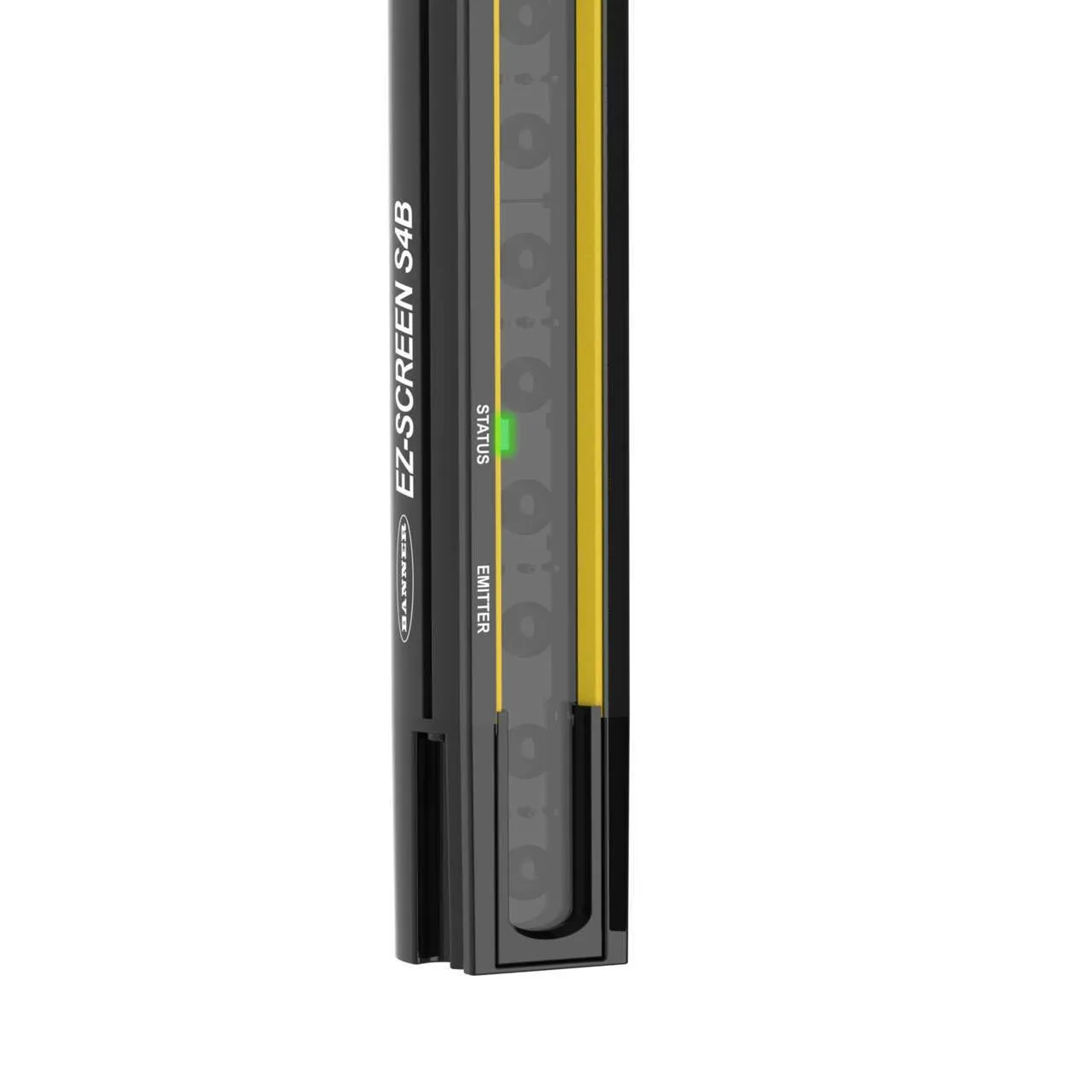

Banner Engineering S4BE30-1800-S

S4B Type 4 Safety Light Curtain, Emitter. Part number: 812386. model: S4BE30-1800-S. part_number: 812386. list_price: 1766 USD. is_new: 0. is_in_stock: 1. BAN_Safety_LC_System_Type: Emitter. BAN_Safety_LC_Resolution: 30. BAN_Safety_DefinedArea: 1800. BAN_Safety_LC_Length: 1802. Max Operating Range (m): >8 – 1300. IP Rating: IP65. Heavy Duty: Yes. Supply Voltage: 24 V dc. Item Status: RELEASED. Primary Housing Material: Aluminum. Safety Level: Type 4. Effective Aperture Angle: Type 4 Per IEC 61496-2. Connector Type: Removable Disconnect. Defined Area Height (mm): 1800. Dimensions WxD (mm): 38 x 40. Overall Length (mm): 1802. External Monitoring Device: N/A. Housing Finish: Black Anodized. Operating Distance (m): 0.1 – 12. Operating Temperature: -20 to +55 deg. C; RH 95%. PL Rating: Ple. Recovery Time: 90 / 172. Resolution (mm): 30. Reduced Resolution: No. SIL Rating: SIL3; CL3. Electrical Safety Class: III. Scan Code: Selectable. Shock: 10g at 16ms (6000 cycles). Short Protection: Yes. System Type: Emitter. Vibration: 10-55 Hz at 0.35 mm. Auxiliary Output: Yes. Fault Output: No. Housing Material: Aluminum; Zinc; Acrylic. OSSD Rating: N/A. Supply Current: 33 mA Typical. Trip/Latch Output: Trip. Test Input: No. Feature: Washdown Rated: No. Feature: Cascade: Yes. Feature: End-to-End Sensing: Yes. Feature: ESD Safe: No. Feature: Integral Muting: No. EPLAN Status: Published. EPLAN Original Sent Date: 05/07/2024
