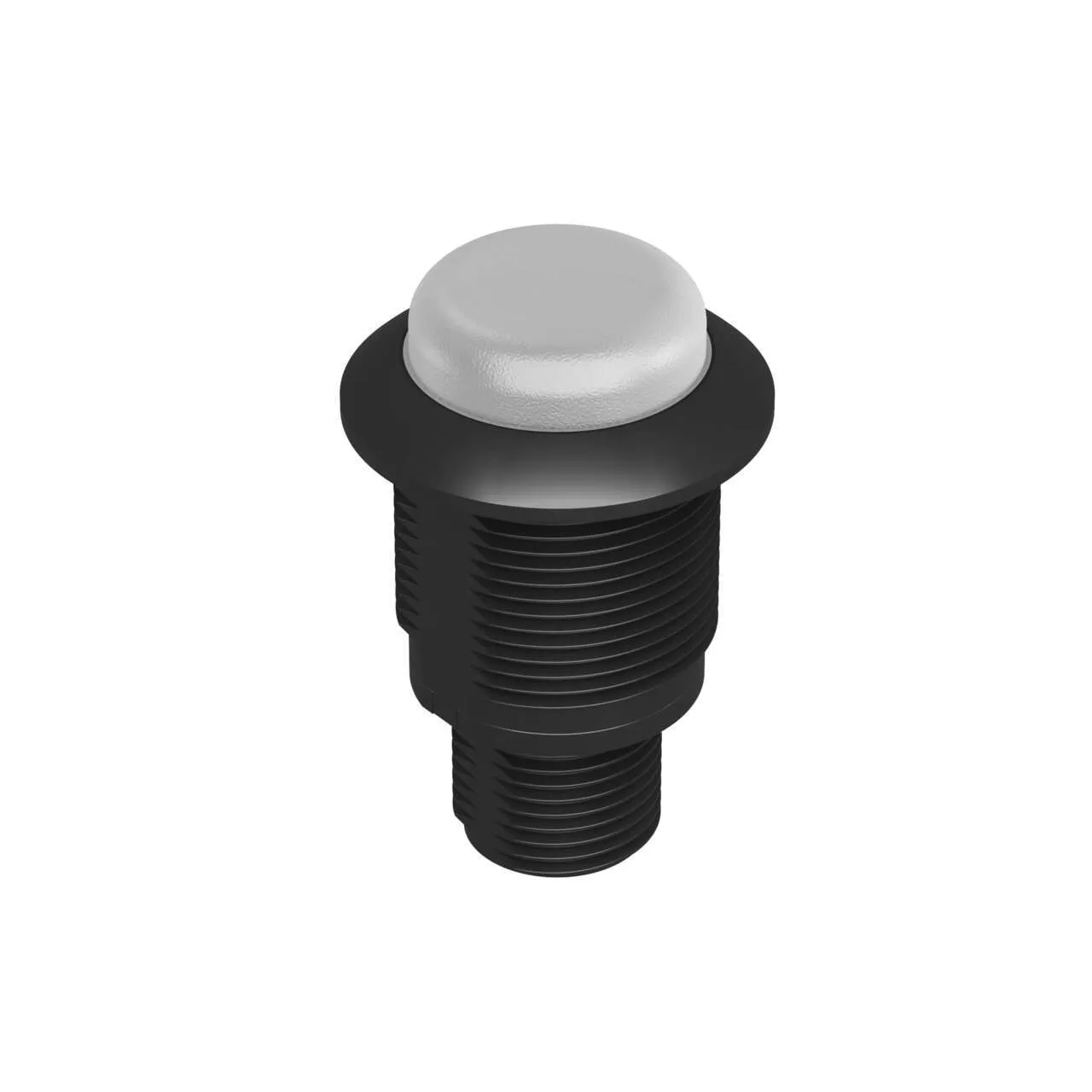

Banner Engineering S18LGRBPQ

S18 EZ-LIGHT – 18 mm – IP67 Three Color: Green Red Blue 10-30 V dc PNP Input 4-pin M12 lntegral QD. Part number: 812170. Power: DC. PFM Input: No. Non-Illuminated: No. IP Rating: IP67, IP69K. Display: No. NEMA / UL Type Rating: NEMA and UL 4X, 13. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Housing Style: Barrel Mount – Flat Window. Primary Housing Material: Polycarbonate. Indication: Yes. Illumination: No. Mounting Thread: M18 x 1.0. Color Input Control: Individual (One wire/color, same number of colors as input wires). Number of Colors: 3. Product Size (mm): 18. Color Technology: Standard LED. Color Option 1: Green. Animation Option 1: Solid On. Connection: Integral QD. Lumens Color 1: 4.1. Quick Disconnect Type: M12. Color 1 – Wavelength/Color Temp/Coordinates: 525 nm. Color Option 2: Red. Lumens Color 2: 1.1. Color 2 – Wavelength/Color Temp/Coordinates: 625 nm. Color Option 3: Blue. Lumens Color 3: 0.60. Color 3 – Wavelength/Color Temp/Coordinates: 470 nm. Max Current Color (mA): 25. Number of Input Pins/Conductors: 4. Input Type: PNP. I/O Block Compatible: No. Max Input Response Time (ms): 1. Physical Dimensions (LxWxH or DxH mm): 23.5 x 35.7. Environmental Rating: IP67; IP69K. Eye Shield: No. High Temperature (up to 100 C): 50. Min Op. Temperature (C): -40. Primary Housing Color: Black. Primary Window Material: Polycarbonate Diffused. Feature: Washdown Rated: Yes. Feature: Audible: No. Feature: Cascade: No. Feature: Chemical Resistant: No. Multi-Color Device: Single Color On. Application: Traffic Light: No. Feature: Quick Disconnect: Yes. Wireless: No
