Banner Engineering RP-RM83F-75LT-812404

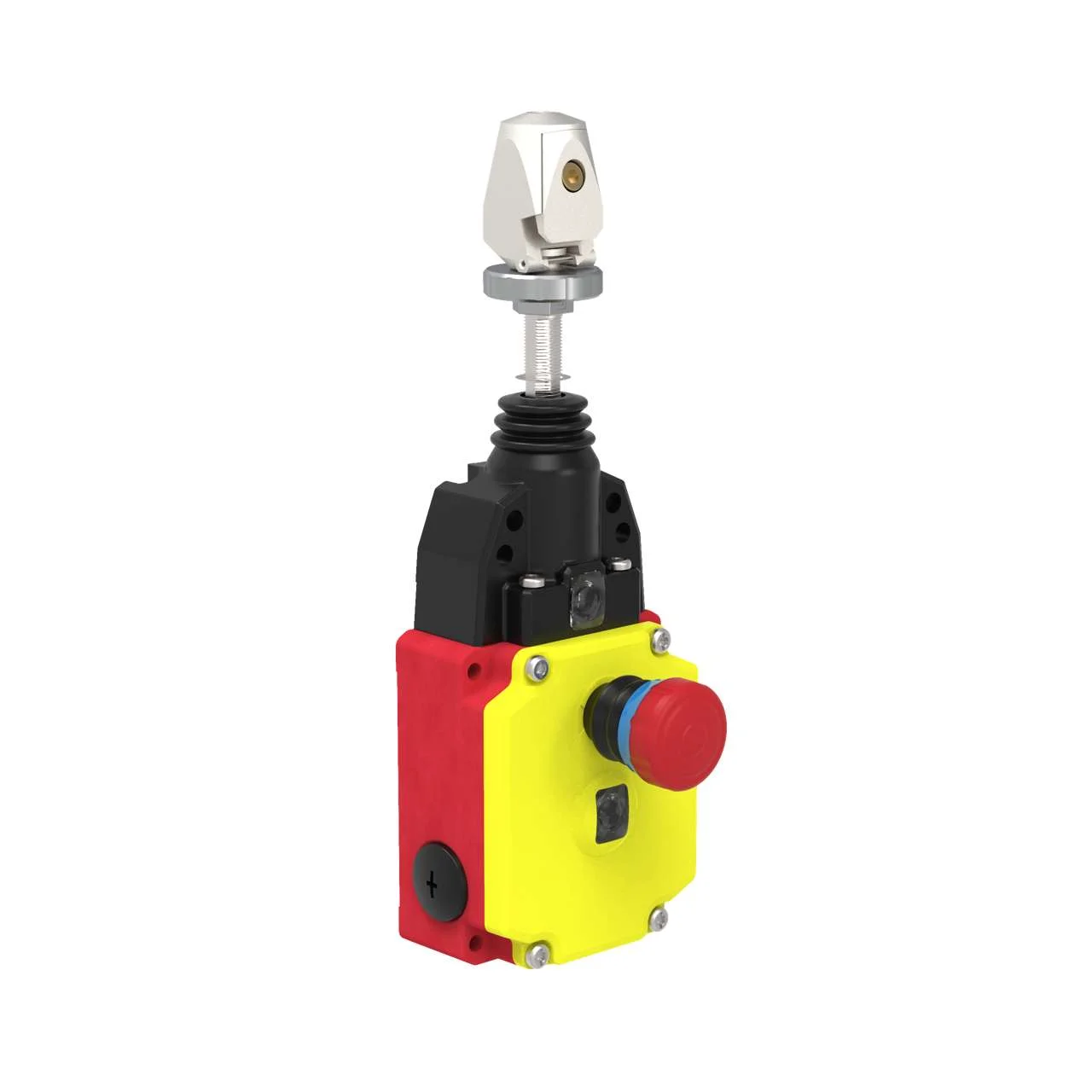

Heavy-Duty Metal Emergency Stop Rope Pull
Turnbuckle Attachment, 75 m Max Range, Integral E-Stop Button
Latch Actuation, 2 NC Safety Contacts, 2 NO Aux Contacts…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Heavy-Duty Metal Emergency Stop Rope Pull
Turnbuckle Attachment, 75 m Max Range, Integral E-Stop Button
Latch Actuation, 2 NC Safety Contacts, 2 NO Aux Contacts
SI-PL3T-R Installed on Right Port
Specification
| Connection Type | Wiring Chamber |
|---|---|
| Min Operating Temperature (C) | -30 |
| Max Operating Temperature (C) | 80 |
| Illumination Type | Light Added |
| Button Shroud | No |
| Ip Rating | IP67 |
| Attachment | Turnbuckle |
| Item Status | RELEASED |
| Housing Style | Limit Switch |
| Device Type | Rope Pull w/E-Stop Button |
| Primary Housing Material | Aluminum Alloy Die-Cast |
| Actuation | Latch |
| Feature: Washdown Rated | No |
| Feature: Illuminated | Yes |
| Feature: Lockable | No |
| Feature: Quick Disconnect | No |
| Contact Quantity | 2 NO, 2 NC |
| Contact Rating | 10 A @ 110 V ac; 6 A @ 24 V dc |
| Max Cable Length (M) | 75 |
| Button Diameter (Mm) | 33 |
| Actuator/Button Material | Zinc Alloy Die-Cast |
| Dimensions (Hxwxd Mm ) | 282 x 120 x 88 |
