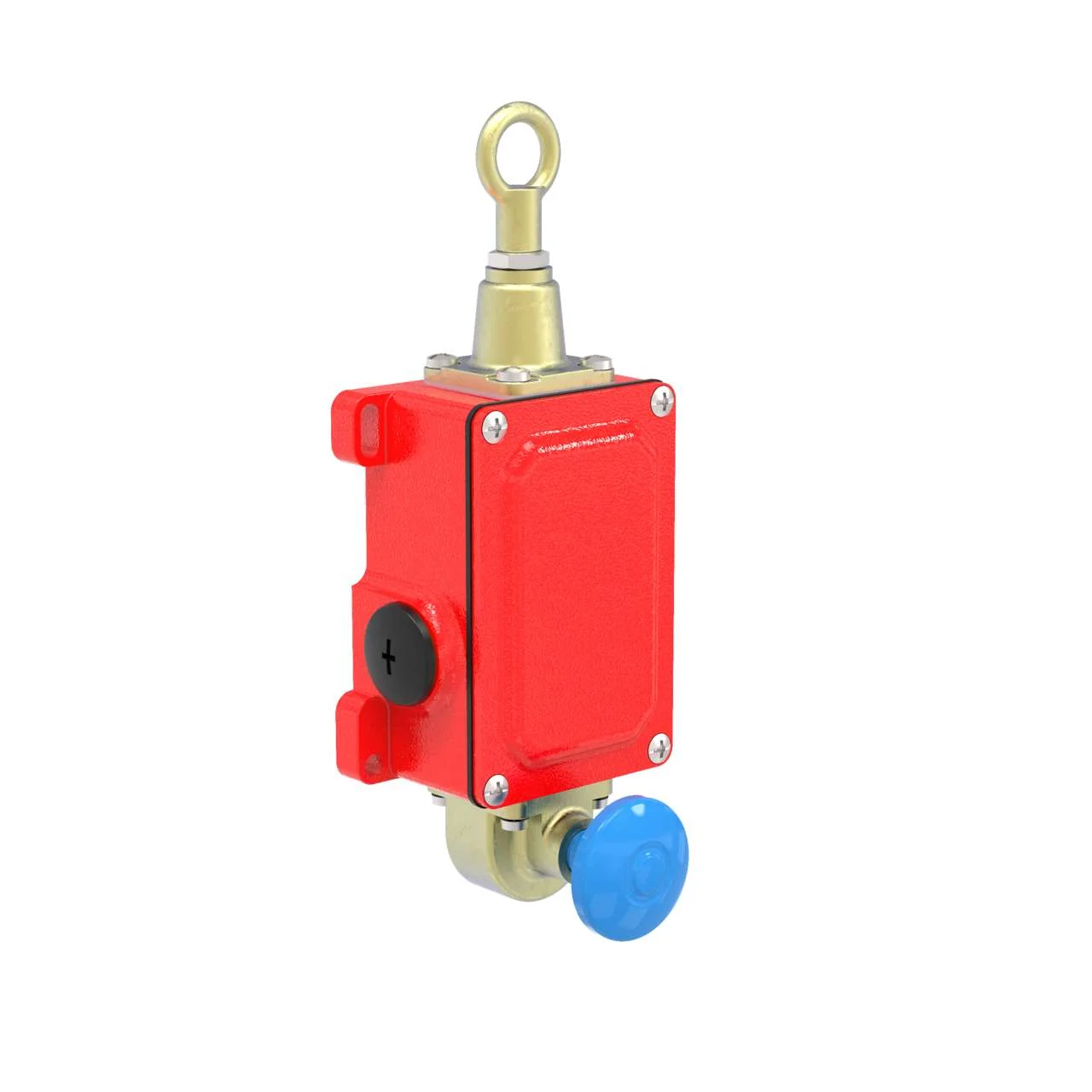

Banner Engineering RP-QM72D-6L
Heavy Duty Metal Stop Control Rope Pull
Ring Attachment, 6 m Max Range
Latch Actuation, 1 NC Rope Pulled Contact
1 NC Rope Break Contact
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Heavy Duty Metal Stop Control Rope Pull
Ring Attachment, 6 m Max Range
Latch Actuation, 1 NC Rope Pulled Contact
1 NC Rope Break Contact
Specification
| Connection Type | Wiring Chamber |
|---|---|
| Min Operating Temperature (C) | -30 |
| Max Operating Temperature (C) | 80 |
| Button Shroud | No |
| Ip Rating | IP65 |
| Attachment | Ring |
| Item Status | RELEASED |
| Housing Style | Limit Switch |
| Device Type | Rope Pull |
| Primary Housing Material | Aluminum Alloy Die-Cast |
| Actuation | Latch |
| Feature: Washdown Rated | No |
| Feature: Illuminated | No |
| Feature: Lockable | No |
| Feature: Quick Disconnect | No |
| Contact Quantity | 2 NC |
| Contact Rating | 10 A @ 110 V ac; 6 A @ 24 V dc |
| Max Cable Length (M) | 6 |
| Actuator/Button Material | Zinc Alloy Die-Cast |
| Dimensions (Hxwxd Mm ) | 142 x 82 x 69 |
