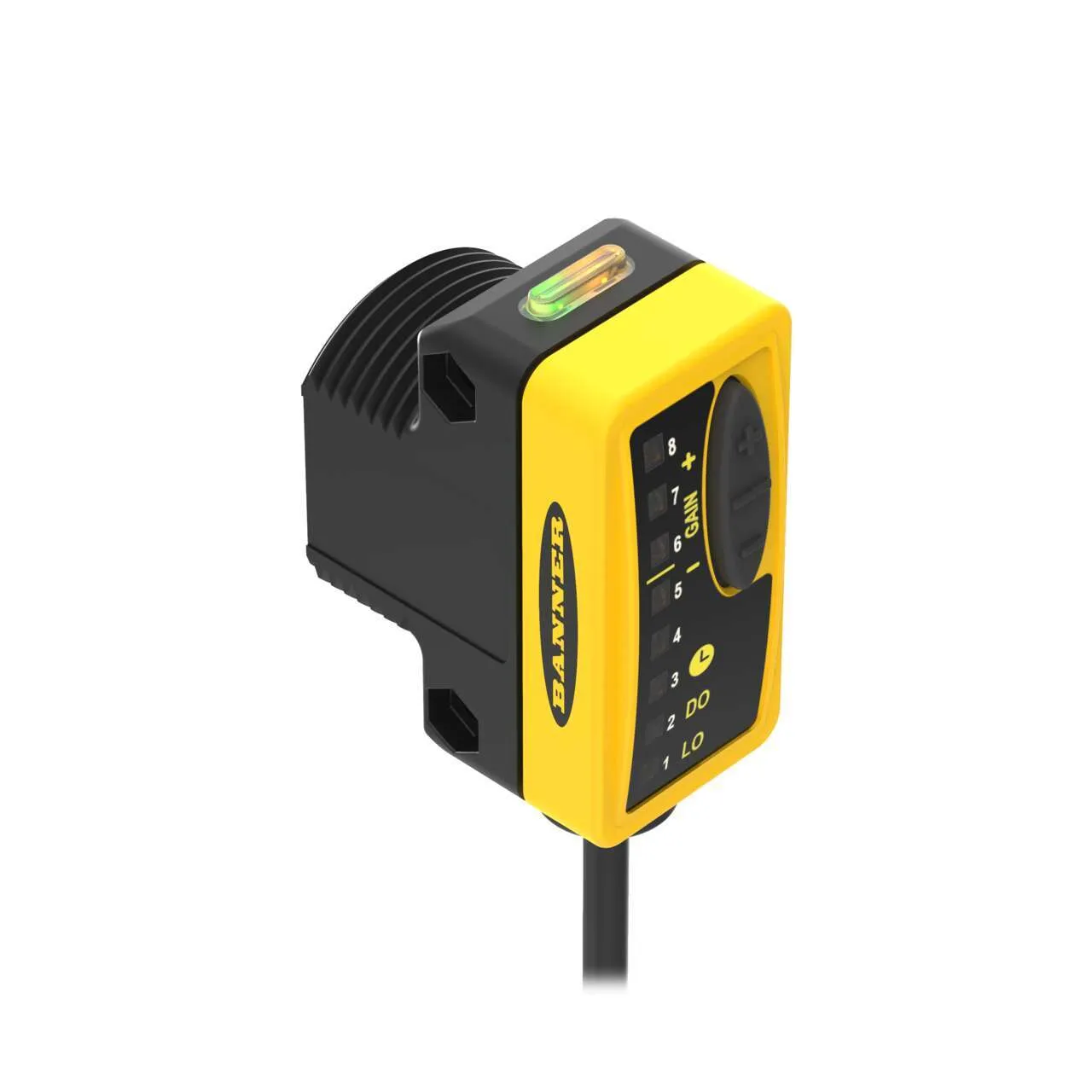

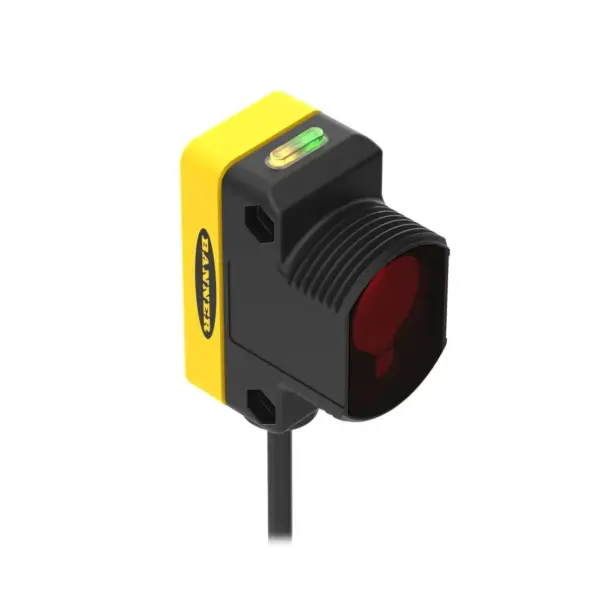

Banner Engineering QS30LLPCQPMA

WORLD-BEAM QS30: Low Contrast Laser Polar Retro. Part number: 72103. model: QS30LLPCQPMA. part_number: 72103. list_price: 312 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/112355.pdf. BAN_Sensing_Mode_General: Retroreflective. BAN_Sensing_Mode_Detailed: Polarized. Custom_Group_1883_1883: Special Feature: Remote Teach. BANSensors_SensRange: 18000. BAN_IO_General: Discrete. BANSensors_Output: Bipolar (NPN & PNP). BANSensors_Operation: Light/Dark Operate. BAN_Supply_Voltage: 10-30 V dc. BAN_Connection: Pigtail PUR QD. BAN_QDType: M12. BAN_CableLength: —. BAN_SensingBeam: Visible Red Laser. BAN_Laser_Classification: Class 1. BANSensors_MinOpTemp: -10. BANSensors_MaxOpTemp: 50. BANSensors_Adjustment: Teach Button. BANSensors_ResponseTime: 0.5. BAN_Small_Spot: Laser. Power: DC. Sensing Beam: Visible Red Laser. IP Rating: IP67. NEMA / UL Type Rating: NEMA 4X. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Sensing Mode (General): Retroreflective. Sensing Mode (Detailed): Polarized. Housing Style: Rectangular w/M30 Mount. Primary Housing Material: Thermoplastic. Laser Classification: Class 1. Small Visible Spot: Laser. Input/Output: Discrete. Max Sensing Distance (mm): 18000. Outputs: Bipolar (NPN & PNP). Connection: Pigtail PUR QD. Quick Disconnect Type: M12. Operation: Light/Dark Operate. Min Op. Temperature (C): -10. Max Op. Temp. (C): 50. Output response time (ms): 0.5. Special Feature: Intrinsically Safe: No. Special Feature: Remote Teach: Yes. Special Feature: Water Detection: No. Sensing Beam Wavelength: 650. Delay at Power-up (ms): 1000. Repeatability (µs): 70. Number of Pins: 5. Max Op. Relative Humidity [%]: 95% @ 50°C. Lens Material: Acrylic. Adjustments: Teach Button. Barrel Diameter (mm): 30. Indicator: Bargraph. Feature: Washdown Rated: No. Feature: Clear Object Detection: No. Feature: Timing (Hold/Delay): No. Feature: Audible: No. Feature: Chemical Resistant: No. Feature: Quick Disconnect: Yes. Feature: Health/Marginal Signal Output: No. DeviceNet: No
