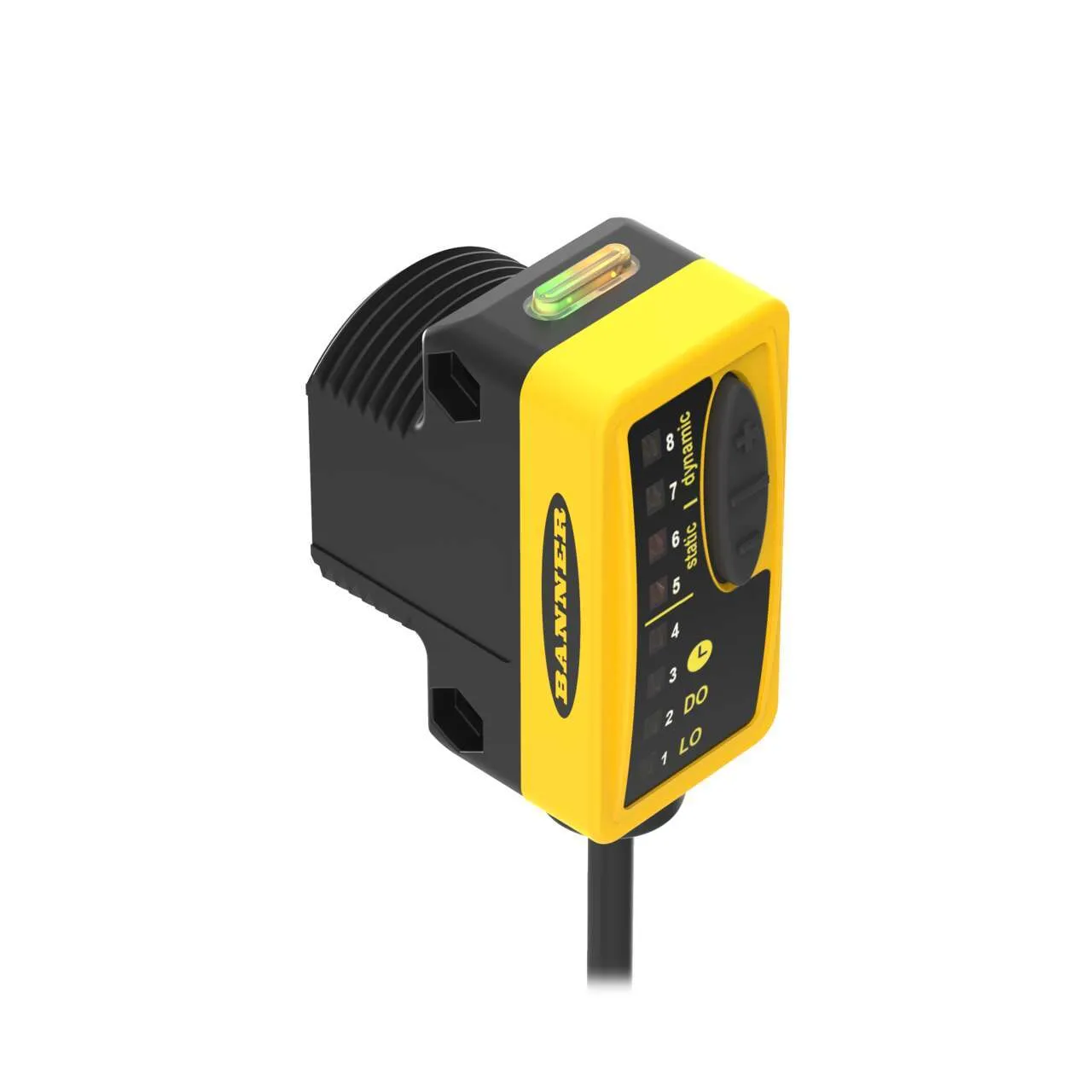

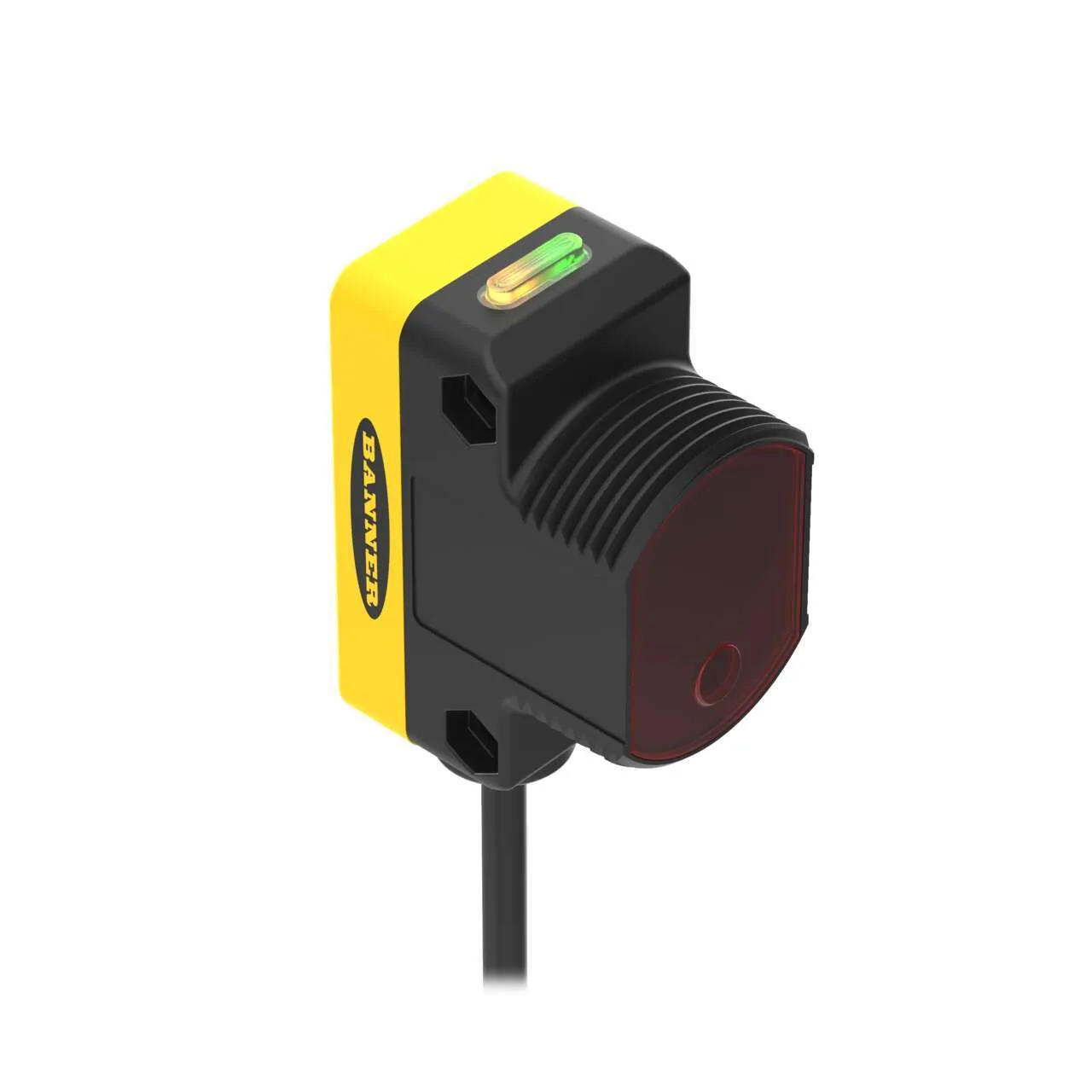

Banner Engineering QS30LDQP

QS30LDQP CLASS 1 LASER DIFFUSE 5 WIRE. Part number: 72682. model: QS30LDQP. part_number: 72682. list_price: 267 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/109027.pdf. BAN_Sensing_Mode_General: Proximity. BAN_Sensing_Mode_Detailed: Diffuse. Custom_Group_1883_1883: Special Feature: Remote TeachFeature: Timing (Hold/Delay). BANSensors_SensRange: 400. BAN_IO_General: Discrete. BANSensors_Output: Bipolar (NPN & PNP). BANSensors_Operation: Light/Dark Operate. BAN_Supply_Voltage: 10-30 V dc. BAN_Connection: Pigtail QD. BAN_QDType: M12. BAN_CableLength: 2. BAN_SensingBeam: Visible Red Laser. BAN_Laser_Classification: Class 1. BANSensors_MinOpTemp: -10. BANSensors_MaxOpTemp: 50. BANSensors_Adjustment: Teach Button. BANSensors_ResponseTime: 0.5. BAN_Small_Spot: Laser. Power: DC. Sensing Beam: Visible Red Laser. Cable Length (m): 2. IP Rating: IP67. NEMA / UL Type Rating: NEMA 4X. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Sensing Mode (General): Proximity. Sensing Mode (Detailed): Diffuse. Housing Style: Rectangular w/M30 Mount. Primary Housing Material: Thermoplastic. Laser Classification: Class 1. Small Visible Spot: Laser. Input/Output: Discrete. Max Sensing Distance (mm): 400. Outputs: Bipolar (NPN & PNP). Connection: Pigtail QD. Quick Disconnect Type: M12. Operation: Light/Dark Operate. Min Op. Temperature (C): -10. Max Op. Temp. (C): 50. Output response time (ms): 0.5. Special Feature: Intrinsically Safe: No. Special Feature: Remote Teach: Yes. Special Feature: Water Detection: No. Sensing Beam Wavelength: 650. Delay at Power-up (ms): 1000. Repeatability (µs): 70. Number of Pins: 5. Max Op. Relative Humidity [%]: 95% @ 50°C. Lens Material: Acrylic. Adjustments: Teach Button. Barrel Diameter (mm): 30. Indicator: LEDs. Feature: Washdown Rated: No. Feature: Clear Object Detection: No. Feature: Timing (Hold/Delay): Yes. Feature: Audible: No. Feature: Chemical Resistant: No. Feature: Quick Disconnect: Yes. Feature: Health/Marginal Signal Output: No. DeviceNet: No. EPLAN Status: Published. EPLAN Original Sent Date: 07/03/2024
