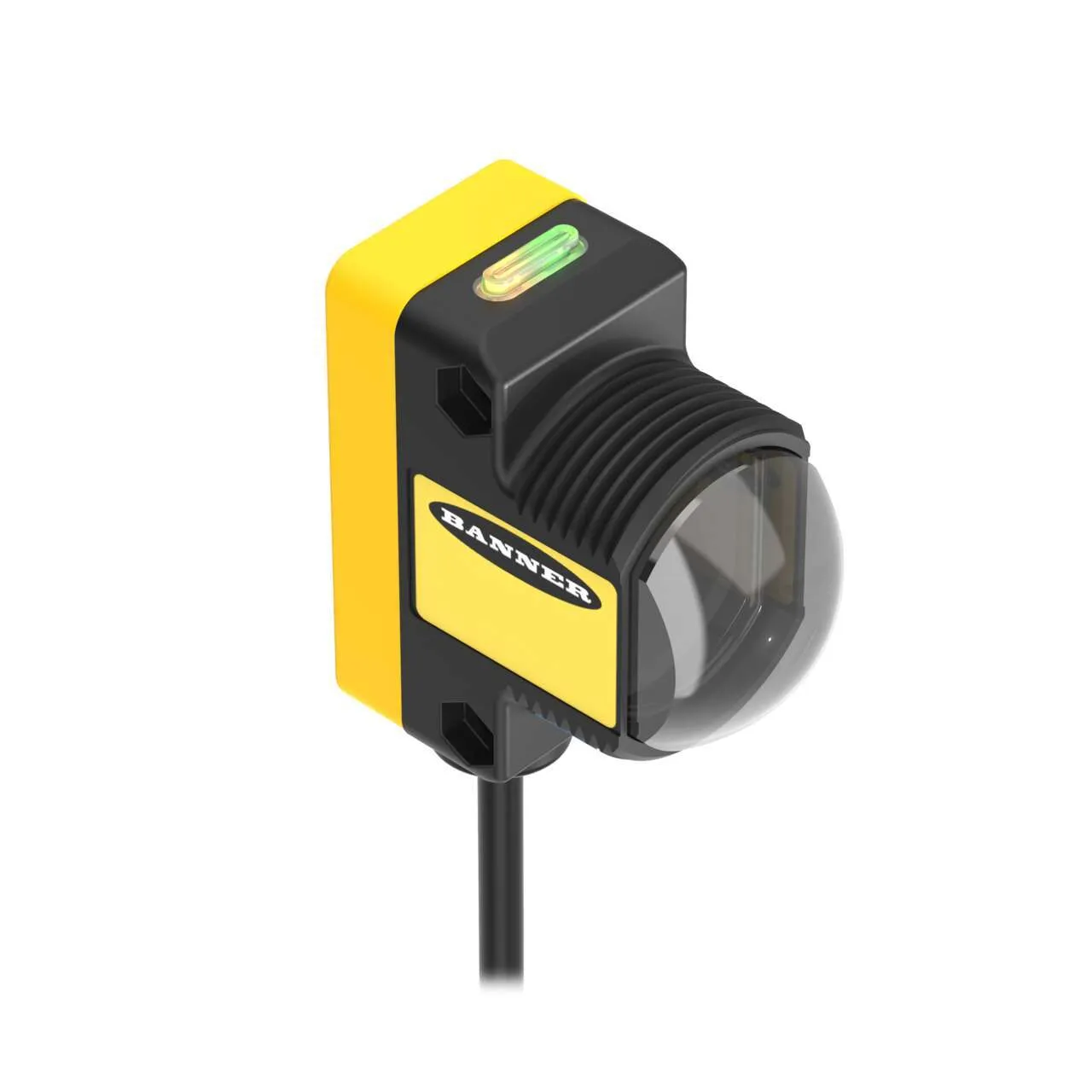

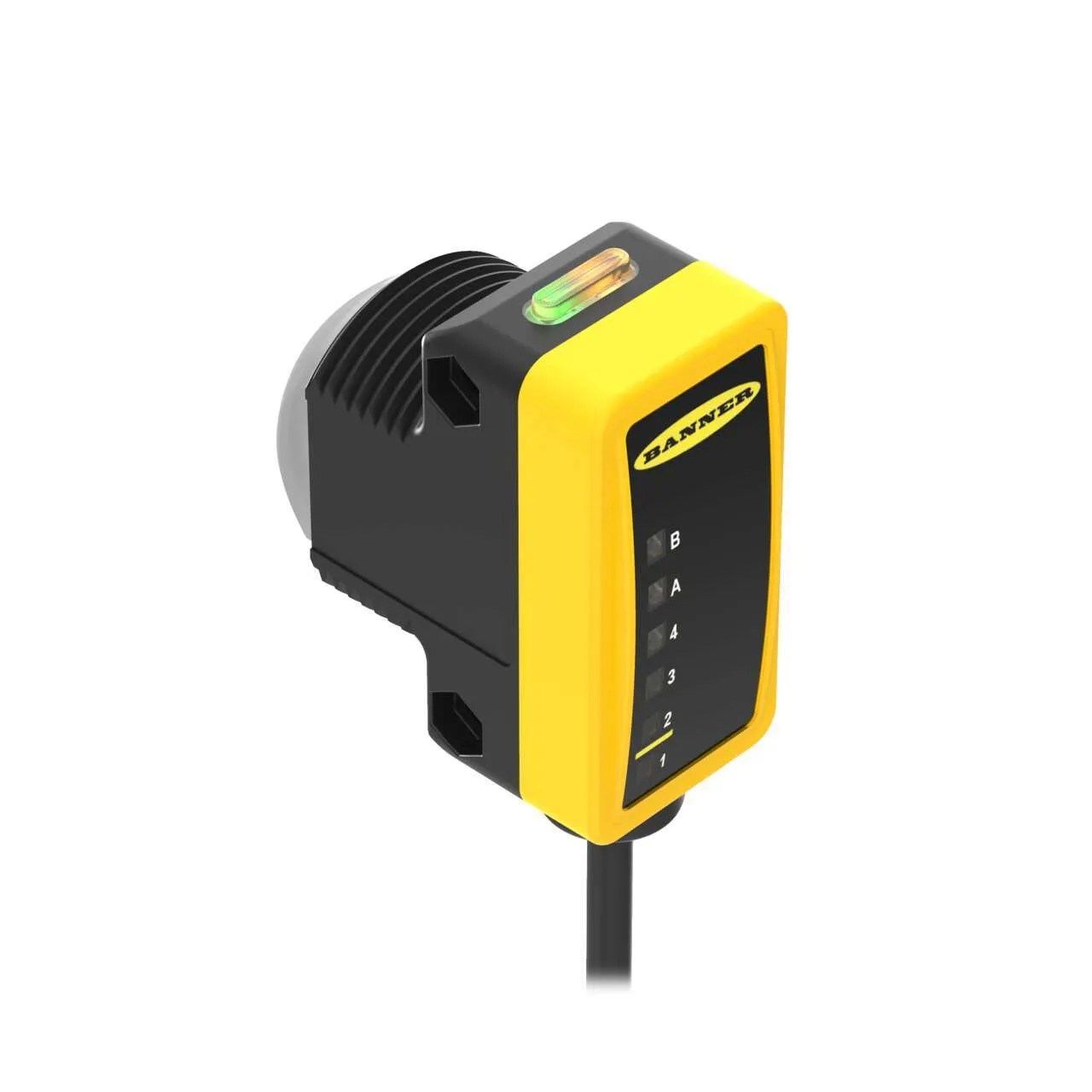

Banner Engineering QS30ARXQP

WORLD-BEAM QS30 Series: High-Powered Receiver. Part number: 74869. model: QS30ARXQP. part_number: 74869. list_price: 204 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/115011.pdf. BAN_Sensing_Mode_General: Opposed. BAN_Sensing_Mode_Detailed: Receiver. Custom_Group_1883_1883: Feature: Washdown RatedFeature: Encapsulated. BANSensors_SensRange: 213000. BAN_IO_General: Discrete. BANSensors_Output: Bipolar (NPN & PNP). BANSensors_Operation: Light Operate. BAN_Supply_Voltage: 10-30 V dc. BAN_Connection: Pigtail QD. BAN_QDType: M12. BAN_CableLength: 0.15. BAN_SensingBeam: Infrared LED. BAN_Laser_Classification: —. BANSensors_MinOpTemp: -20. BANSensors_MaxOpTemp: 70. BANSensors_Adjustment: N/A. BANSensors_ResponseTime: 5. BAN_Small_Spot: —. Power: DC. Sensing Beam: Infrared LED. Cable Length (m): 0.15. IP Rating: IP67. NEMA / UL Type Rating: NEMA 4X. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Sensing Mode (General): Opposed. Sensing Mode (Detailed): Receiver. Housing Style: Rectangular w/M30 Mount. Primary Housing Material: Thermoplastic. Input/Output: Discrete. Max Sensing Distance (mm): 213000. Outputs: Bipolar (NPN & PNP). Connection: Pigtail QD. Quick Disconnect Type: M12. Operation: Light Operate. Min Op. Temperature (C): -20. Max Op. Temp. (C): 70. Output response time (ms): 5. Special Feature: Intrinsically Safe: No. Special Feature: Remote Teach: No. Special Feature: Water Detection: No. Sensing Beam Wavelength: 875. Delay at Power-up (ms): 100. Repeatability (µs): 5000. Number of Pins: 5. Max Op. Relative Humidity [%]: 95% @ 50°C. Lens Material: Zeonex. Adjustments: N/A. Barrel Diameter (mm): 30. Indicator: Bargraph. Opposed Mode Emitter/Receiver: Receiver. Feature: Washdown Rated: Yes. Feature: Clear Object Detection: No. Feature: Timing (Hold/Delay): No. Feature: Encapsulated: Yes. Feature: Audible: No. Feature: Chemical Resistant: No. Feature: Quick Disconnect: Yes. Feature: Health/Marginal Signal Output: No. DeviceNet: No
