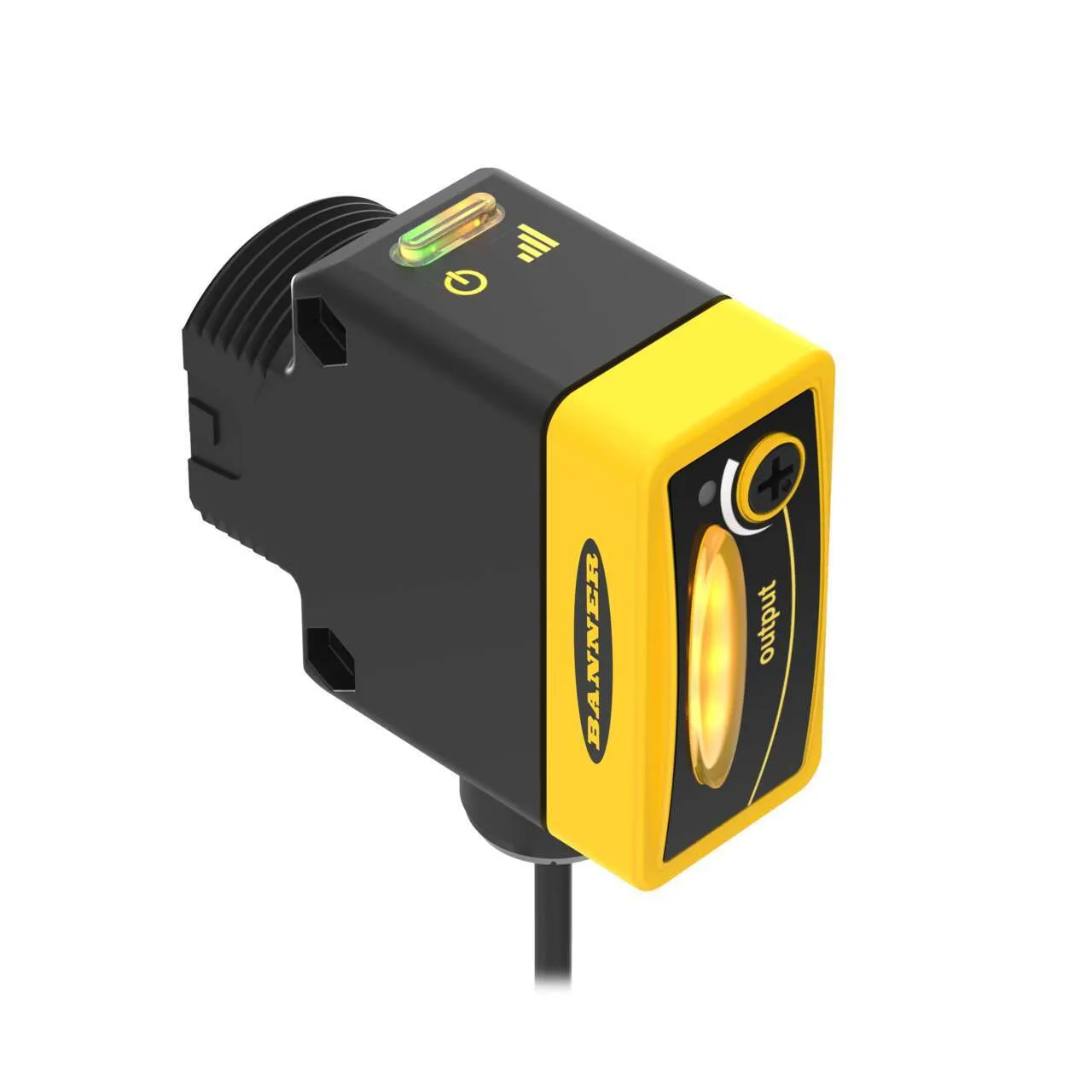

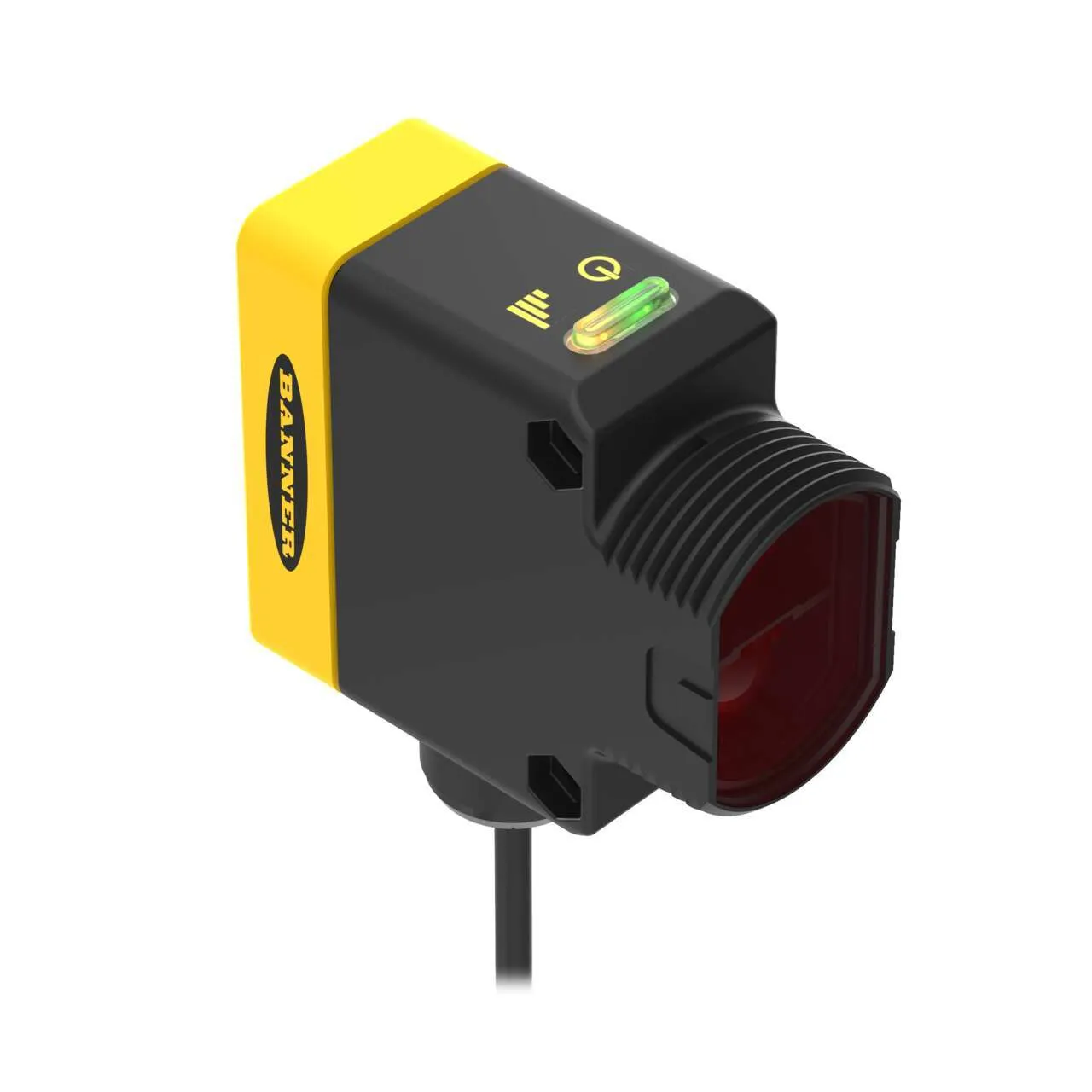

Banner Engineering QS30AF600Q5

WORLD-BEAM QS30 Series: Adjustable-Field. Part number: 11981. model: QS30AF600Q5. part_number: 11981. list_price: 247 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/148757.pdf. BAN_Sensing_Mode_General: Proximity. BAN_Sensing_Mode_Detailed: Background Suppression (Adjustable). Custom_Group_1883_1883: Feature: Timing (Hold/Delay). BANSensors_SensRange: 600. BAN_IO_General: Discrete. BANSensors_Output: Bipolar (NPN & PNP). BANSensors_Operation: Light/Dark Operate. BAN_Supply_Voltage: 10-30 V dc. BAN_Connection: Pigtail QD. BAN_QDType: M12. BAN_CableLength: 0.15. BAN_SensingBeam: Visible Red LED. BAN_Laser_Classification: —. BANSensors_MinOpTemp: -20. BANSensors_MaxOpTemp: 60. BANSensors_Adjustment: Mechanical Screw. BANSensors_ResponseTime: 5. BAN_Small_Spot: —. Power: DC. Sensing Beam: Visible Red LED. Cable Length (m): 0.15. IP Rating: IP67. NEMA / UL Type Rating: NEMA 4X. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Sensing Mode (General): Proximity. Sensing Mode (Detailed): Background Suppression (Adjustable). Housing Style: Rectangular w/M30 Mount. Primary Housing Material: Thermoplastic. Input/Output: Discrete. Max Sensing Distance (mm): 600. Outputs: Bipolar (NPN & PNP). Connection: Pigtail QD. Quick Disconnect Type: M12. Operation: Light/Dark Operate. Min Op. Temperature (C): -20. Max Op. Temp. (C): 60. Output response time (ms): 5. Special Feature: Intrinsically Safe: No. Special Feature: Remote Teach: No. Special Feature: Water Detection: No. Sensing Beam Wavelength: 660. Delay at Power-up (ms): 200. Repeatability (µs): 750. Number of Pins: 5. Max Op. Relative Humidity [%]: 95% @ 50°C. Lens Material: Acrylic. Adjustments: Mechanical Screw. Barrel Diameter (mm): 30. Indicator: LEDs. Feature: Washdown Rated: No. Feature: Clear Object Detection: No. Feature: Timing (Hold/Delay): Yes. Feature: Audible: No. Feature: Chemical Resistant: No. Feature: Quick Disconnect: Yes. Feature: Health/Marginal Signal Output: No. DeviceNet: No. EPLAN Status: Published. EPLAN Original Sent Date: 01/11/2023
