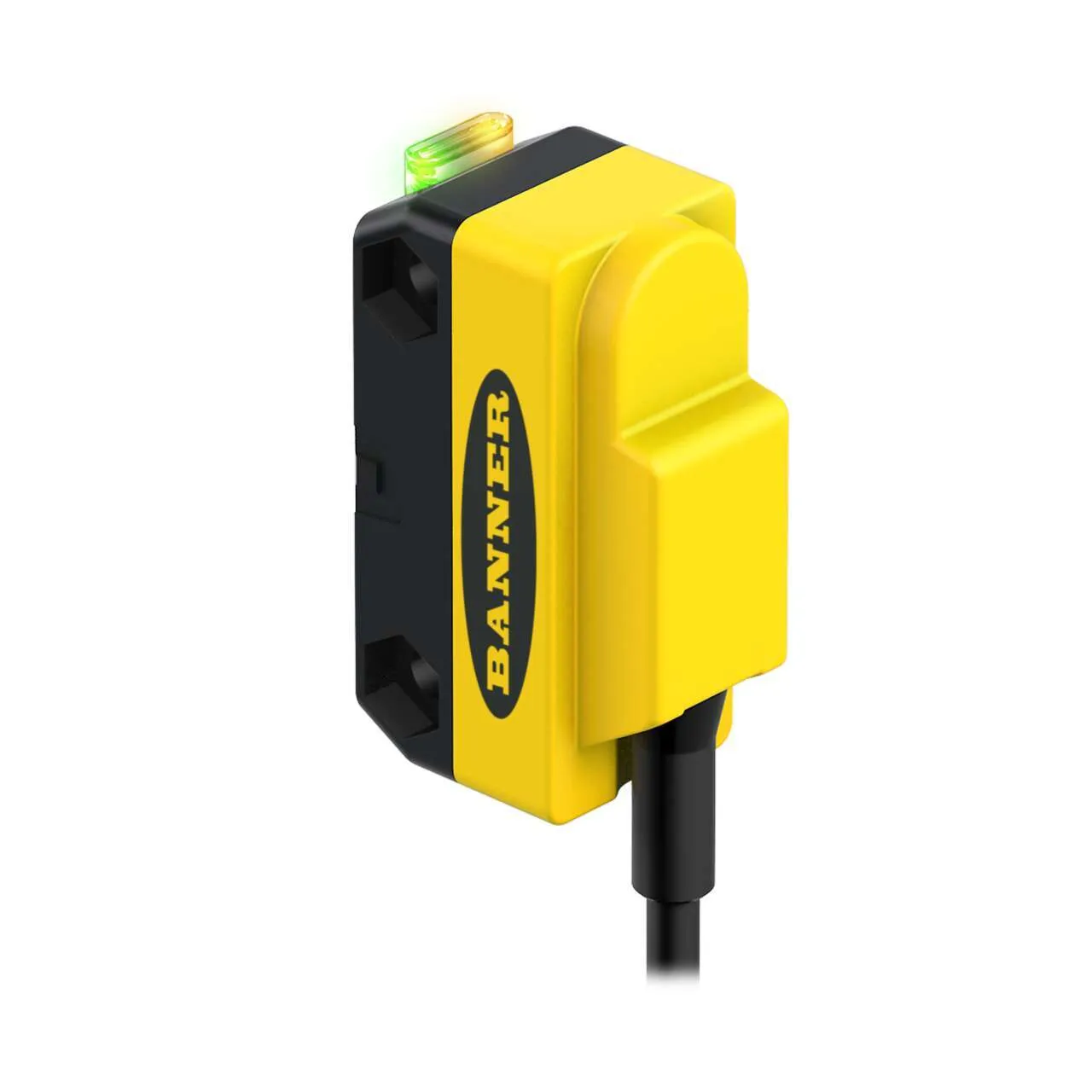

Banner Engineering QS186EB

WORLD-BEAM QS18 Series: Emitter (Flush Front). Part number: 61675. model: QS186EB. part_number: 61675. list_price: 57 USD. is_new: 0. is_in_stock: 1. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/197052.pdf. BAN_Sensing_Mode_General: Opposed. BAN_Sensing_Mode_Detailed: Emitter. BANSensors_SensRange: 3000. Custom_Group_1896_1896: —. BANSensors_Output: —. BANSensors_Operation: N/A. BAN_Supply_Voltage: 10-30 V dc. BAN_CommProtocols_IOLink: No. BAN_Housing_Style: Rectangular. BAN_Connection: Cable. BAN_QDType: —. BAN_CableLength: 2. BAN_SensingBeam: Infrared LED. BAN_Laser_Classification: —. BANSensors_MinOpTemp: -20. BANSensors_MaxOpTemp: 70. BANSensors_Adjustment: N/A. BANSensors_ResponseTime: N/A. BAN_Small_Spot: —. Power: DC. Sensing Beam: Infrared LED. Cable Length (m): 2. IP Rating: IP67. NEMA / UL Type Rating: NEMA 4X. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Sensing Mode (General): Opposed. Sensing Mode (Detailed): Emitter. Housing Style: Rectangular. Primary Housing Material: ABS. Max Sensing Distance (mm): 3000. Connection: Cable. Operation: N/A. Min Op. Temperature (C): -20. Max Op. Temp. (C): 70. Output response time (ms): N/A. Delay at Power-up (ms): 100. Repeatability (µs): 100. Number of Pins: 2. Max Op. Relative Humidity [%]: 95% @ 50°C. Lens Material: Acrylic. Adjustments: N/A. Indicator: LEDs. Opposed Mode Emitter/Receiver: Emitter. Feature: Washdown Rated: No. Feature: Clear Object Detection: No. Feature: Timing (Hold/Delay): No. Feature: Audible: No. Feature: Chemical Resistant: No. Feature: Quick Disconnect: No. Feature: Health/Marginal Signal Output: No. DeviceNet: No. IO Link: No. EPLAN Status: Published. EPLAN Original Sent Date: 04/13/2022
