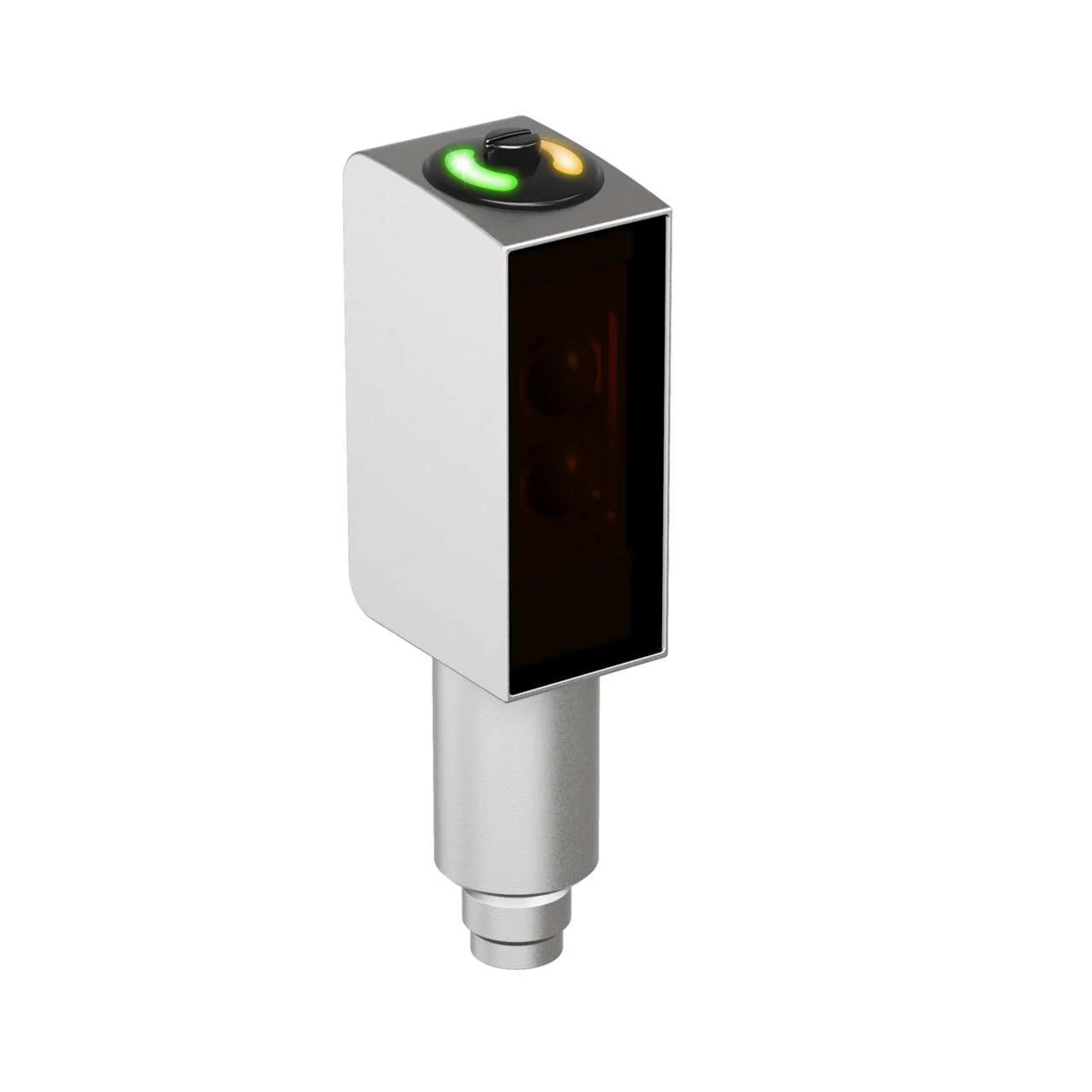

Banner Engineering QMH26ENXLPCQ7
QMH26 Hygienic Series: Low Contrast Coaxial Polarized Retro
Range: 2.6 m; Input: 10-30 V dc
Output: Solid-State NPN with teach Input
4-pin M8 Integral QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
QMH26 Hygienic Series: Low Contrast Coaxial Polarized Retro
Range: 2.6 m; Input: 10-30 V dc
Output: Solid-State NPN with teach Input
4-pin M8 Integral QD
Specification
| Power | DC |
|---|---|
| Sensing Beam | Visible Red LED |
| Ip Rating | IP69K |
| Nema / Ul Type Rating | N/A |
| Supply Voltage | 10-30 V dc |
| Item Status | RELEASED – APPROVAL REQUIRED |
| Sensing Mode (General) | Retroreflective |
| Sensing Mode (Detailed) | Polarized (Coaxial) |
| Housing Style | Rectangular |
| Primary Housing Material | Stainless Steel |
| Input/ Output | Discrete |
| Max Sensing Distance (Mm) | 2600 |
| Outputs | NPN |
| Connection | Integral QD |
| Quick Disconnect Type | M8 |
| Operation | Light/Dark Operate |
| Min Op. Temperature (C) | -30 |
| Max Op. Temp. (C) | 70 |
| Output Response Time (Ms) | 0.5 |
| Special Feature: Intrinsically Safe | No |
| Special Feature: Remote Teach | Yes |
| Special Feature: Water Detection | No |
| Sensing Beam Wavelength | 620 |
| Delay At Power Up (Ms) | 300 |
| Repeatability (µS) | 150 |
| Number Of Pins | 4 |
| Max Op. Relative Humidity [%] | 95% @ 55°C |
| Lens Material | PMMA |
| Adjustments | Teach Button |
| Indicator | LEDs |
| Feature: Washdown Rated | Yes |
| Feature: Clear Object Detection | Yes |
| Feature: Timing (Hold/Delay) | No |
| Feature: Ecolab Certified | Yes |
| Feature: Audible | No |
| Feature: Chemical Resistant | Yes |
| Feature: Quick Disconnect | Yes |
| Feature: Health/Marginal Signal Output | No |
| Device Net | No |
