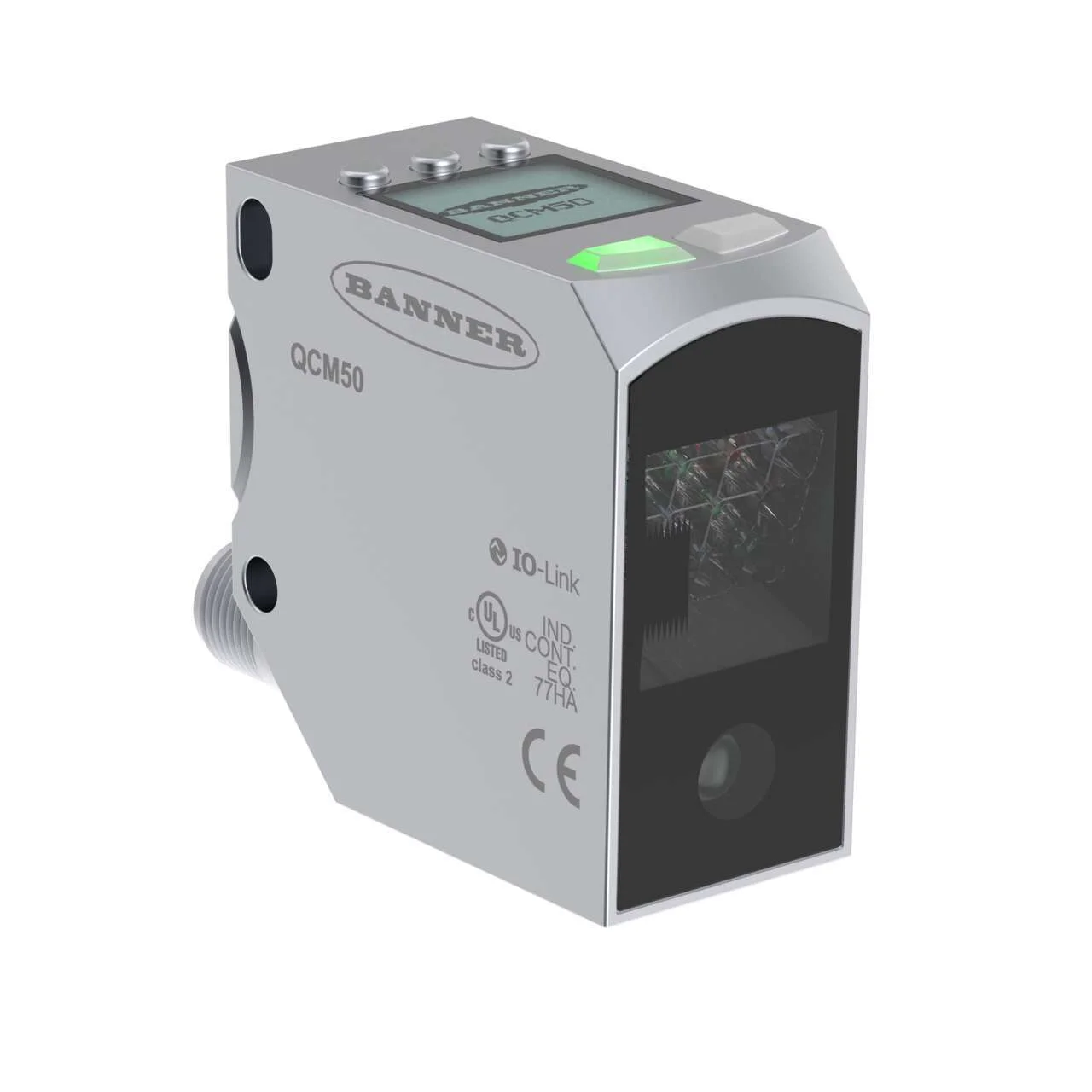

Banner Engineering QCM50-K1D40-Q8-4
QCM50 Series: Color Sensor
Range: 18-60 mm; Input: 10-30 V dc
Outputs: 1 Discrete PNP/NPN; IO-Link
4-pin M12 Integral QD; Small Spot
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
QCM50 Series: Color Sensor
Range: 18-60 mm; Input: 10-30 V dc
Outputs: 1 Discrete PNP/NPN; IO-Link
4-pin M12 Integral QD; Small Spot
Specification
| Ip Rating | IP67, IP69K |
|---|---|
| Nema / Ul Type Rating | NEMA 4X |
| Supply Voltage | 18-30 V dc |
| Item Status | RELEASED |
| Primary Housing Material | Zinc Die-Cast, Matte Chrome Plating |
| Adjustments | Teach Button |
| Sensing Beam | Visible White LED |
| Outputs | 1 PNP/NPN with IO-link |
| Connection | Integral QD |
| Special Feature: Remote Teach | Yes |

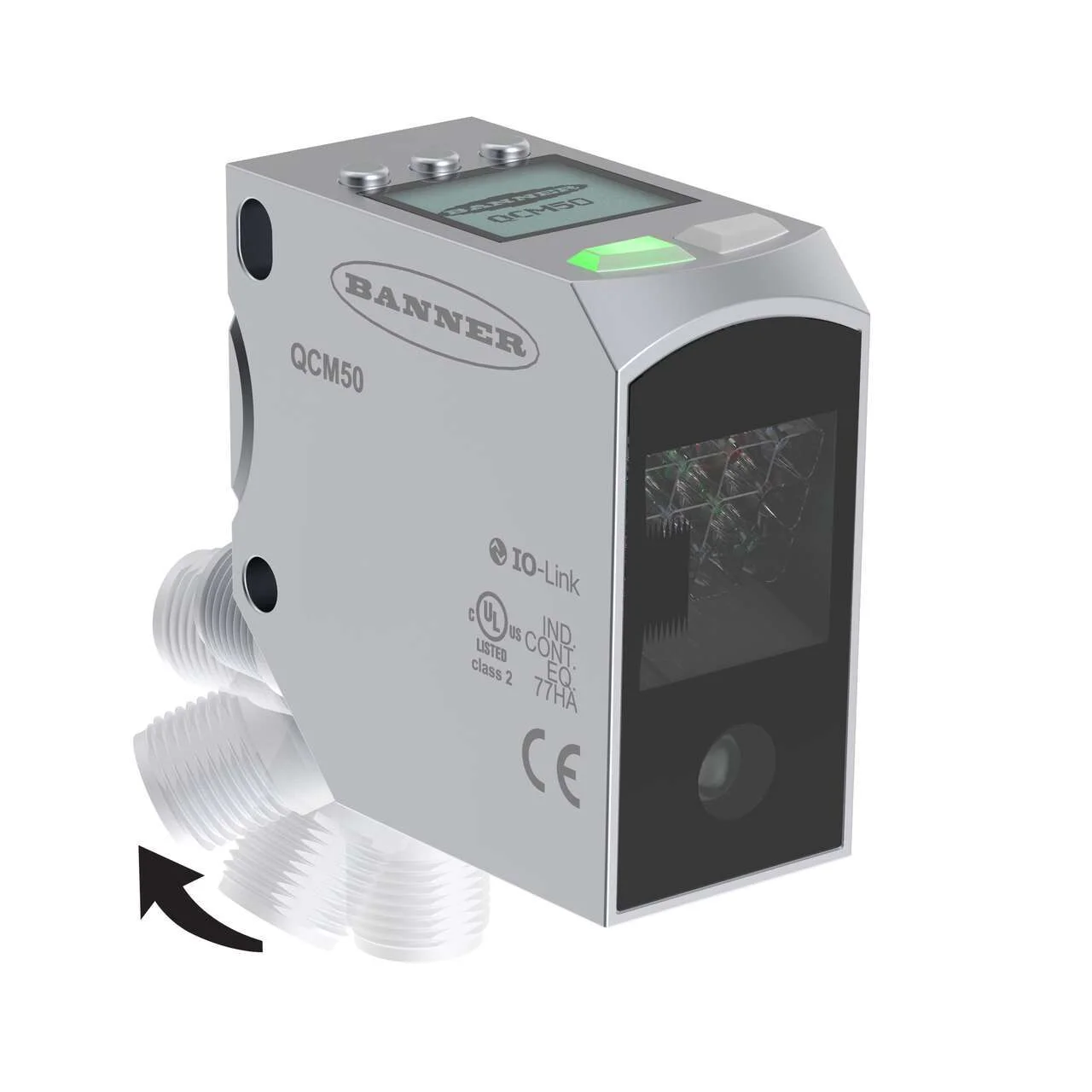

| Quick Disconnect Type | M12 |
| Sensing Beam Wavelength | Broad Spectrum White |
| Max Sensing Range (Mm) | 60 |
| Number Of Pins | 4 |
| Led Orientation | Perpendicular to sensor length |

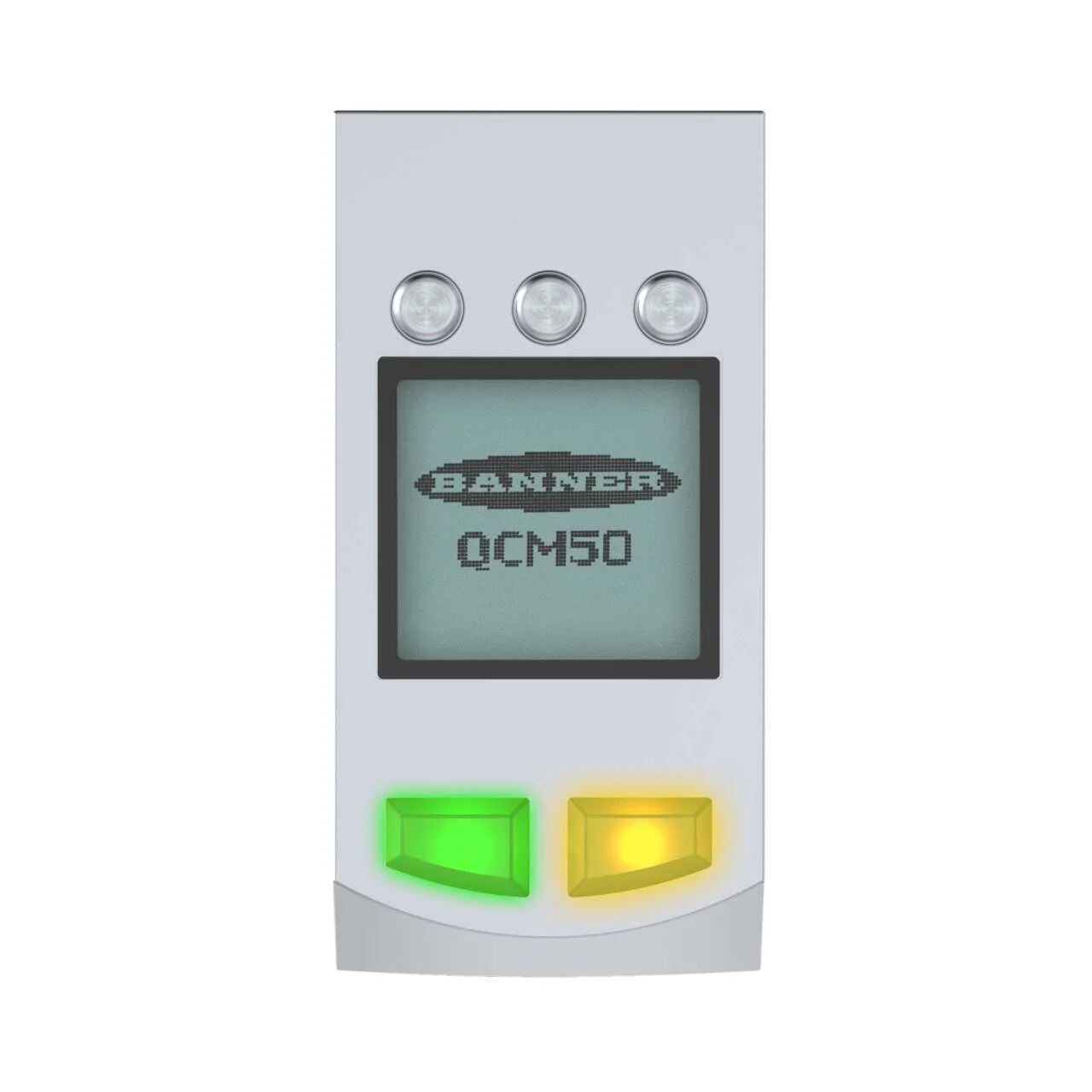

| Indicator | LCD Display; LED(s) |
| Operation | NO/NC |
| Output Response Time (Ms) | 33 to 0.33 |
| Repeatability (µS) | 180 |
| Lens Material | PMMA |
| Max Op. Temperature (C) | 55 |
| Min Op. Temperature (C) | -20 |
| Max Op. Relative Humidity (%) | 95% @ 55°C |
| Special Feature: Analog Output | No |
| Delay At Power Up (Ms) | 150 |
| Beam Spot Size | 6 x 6 mm at 25 mm |
| Number Of Stored Colors | 1 |
| Sf Multifunction Input/Output | Yes |
| Sf Sensing Specialty | Small Spot Size |
| Feature: Timing (Hold/Delay) | Yes |
| Feature: Quick Disconnect | Yes |
| Application: Luminescence | No |
| Application: Registration Mark | No |
| Io Link | Yes |
| Application: Color | Yes |
