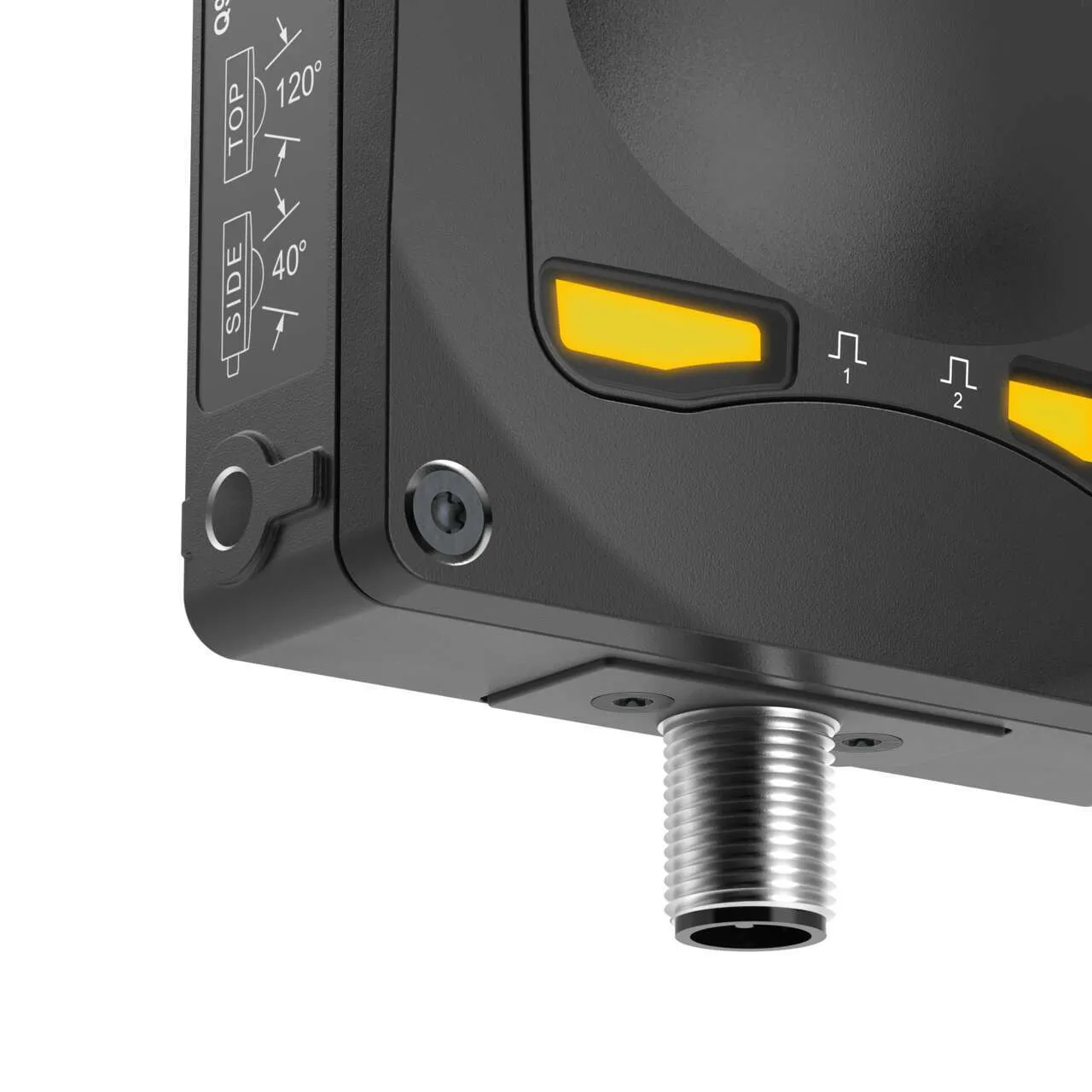

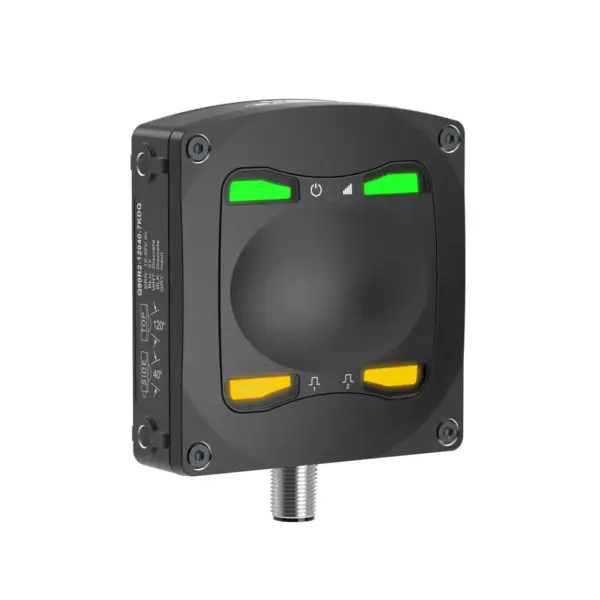

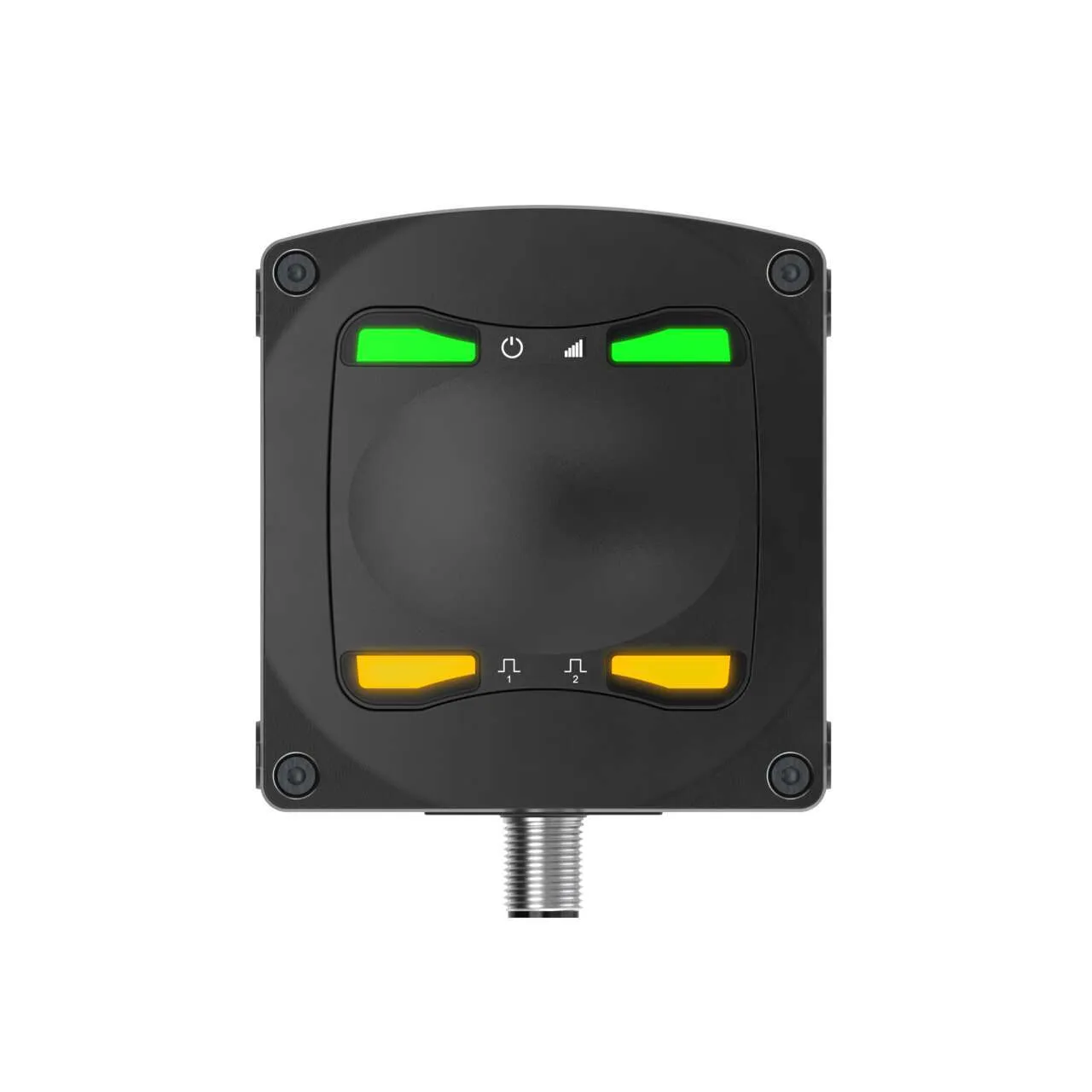

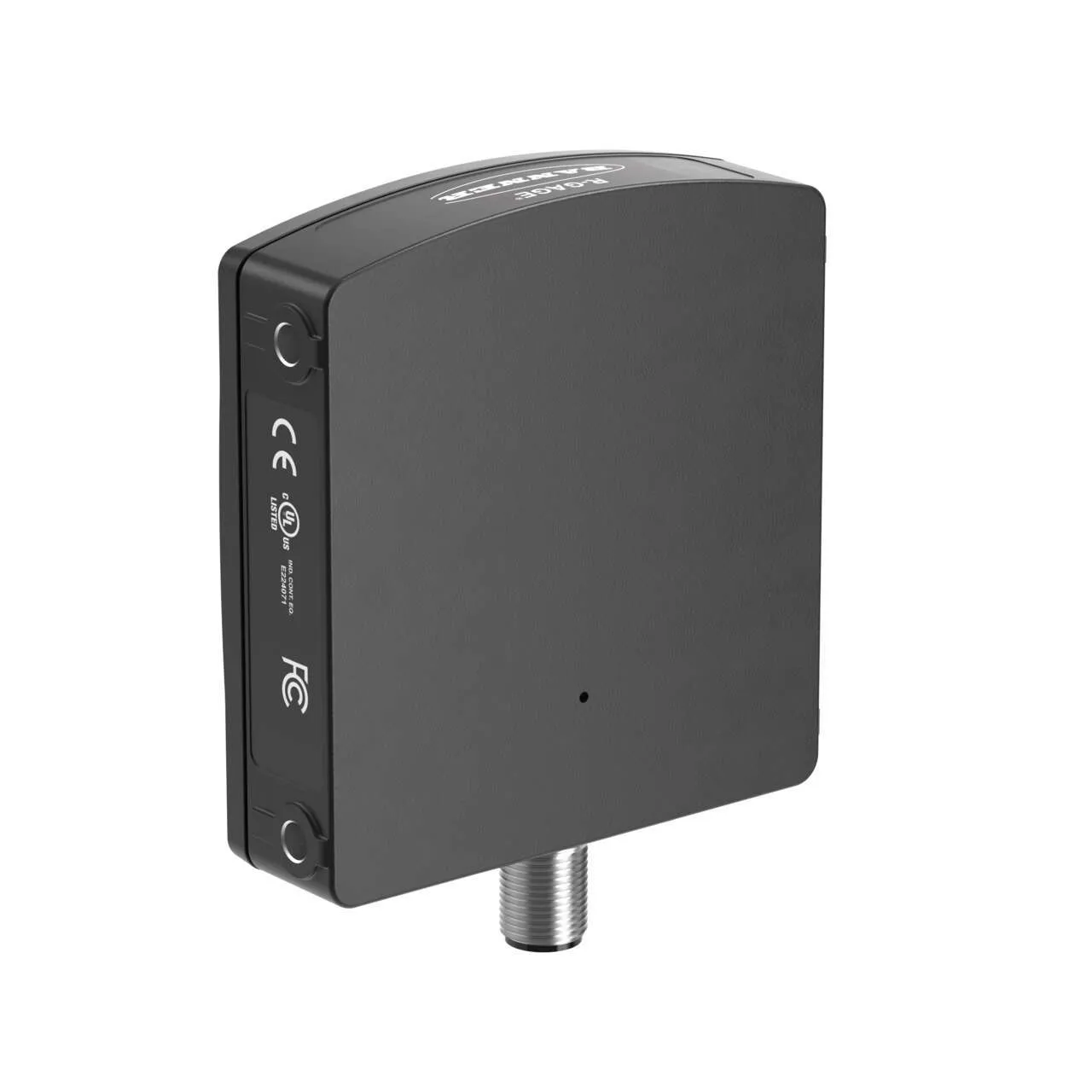

Banner Engineering Q90R2-12040-7KDQ

Q90R2 77 GHz R-GAGE Series Radar Sensor. Part number: 816435. model: Q90R2-12040-7KDQ. part_number: 816435. list_price: 892 USD. is_new: 0. is_in_stock: 1. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/240867.pdf. BAN_MI_FOV_Type: Configurable. BAN_Radar_Beam_Pattern: 120 x 40. BAN_IO_General: Analog & Discrete. BAN_OperatingFreq: 77 GHz. BAN_Supply_Voltage: 10-30 V dc. BAN_PFM_Output: Yes. Power: DC. PFM Output: Yes. Sensing Beam: Radar. Jam Detection: No. Operating Frequency: 77 GHz. PC Configurable: No. IP Rating: IP67, IP69K. FOV Type: Configurable. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Sensing Mode (General): Proximity. Sensing Mode (Detailed): Time of Flight. Housing Style: Flat Mount. Device Type: Sensor. Primary Housing Material: Aluminum. Input/Output: Analog & Discrete. Radar Beam Pattern (H x V °): 120 x 40. Connection: Integral QD. Quick Disconnect Type: M12. Max Sensing Distance (mm): 20000. Minimum Sensing Distance (mm): 150. Number of Pins: 5. Discrete (Switched) Outputs: 1 NPN/PNP Configurable. Max Operating Temperature (C): 65. Min Operating Temperature (C): -40. Laser Control: No. Feature: Remote Teach: Yes. Feature: Washdown Rated: Yes. Feature: Clear Object Detection: Yes. Feature: Timing (Hold/Delay): Yes. Feature: Chemical Resistant: No. Feature: Pump-in/ Pump-out: No. Feature: Quick Disconnect: Yes. Feature: Health/Marginal Signal Output: No. IO Link: Yes. RS-232: No. Cert: US: Yes. Cert: Australia/New Zealand: Yes. Cert: China: Yes. Cert: Canada: Yes. EPLAN Status: Published
