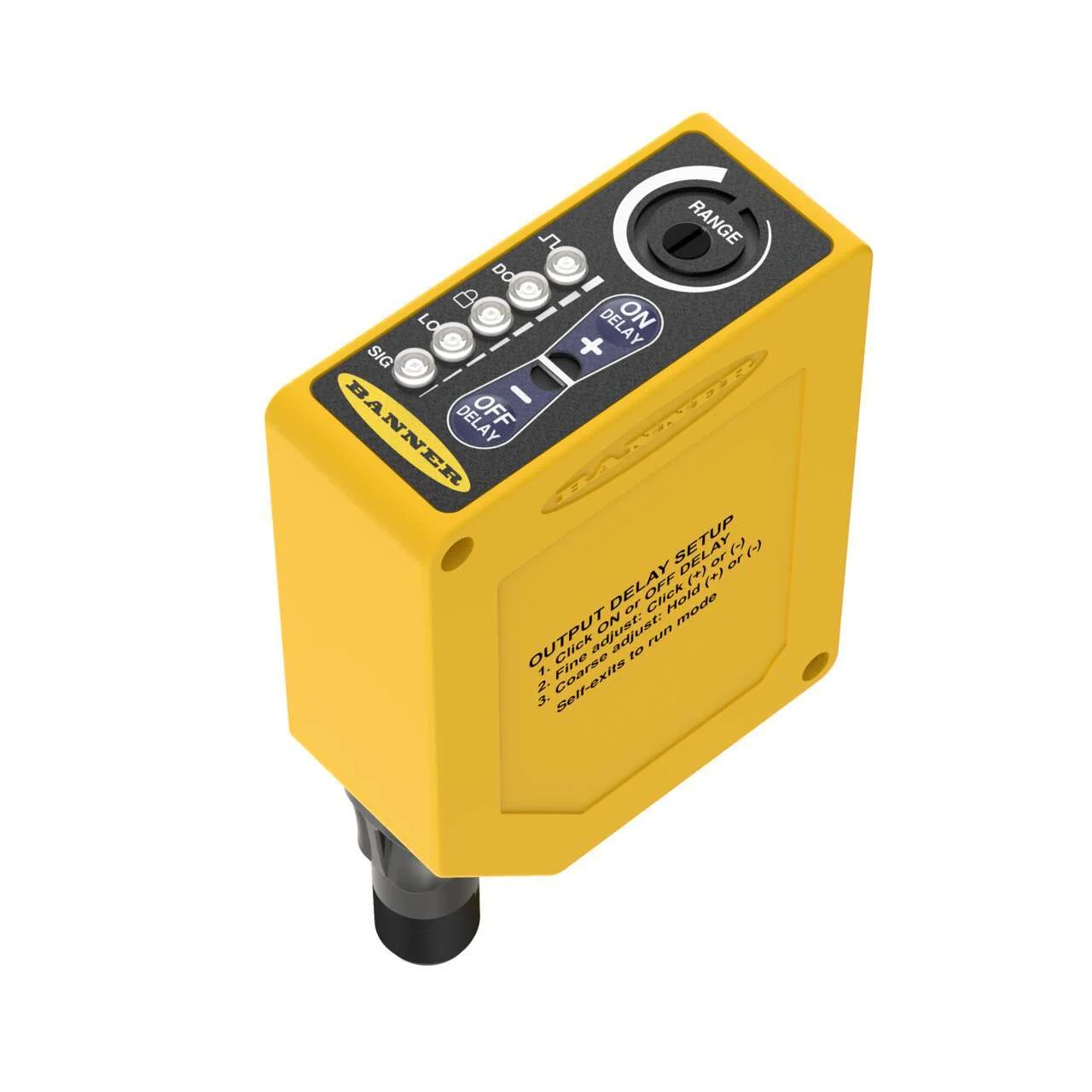

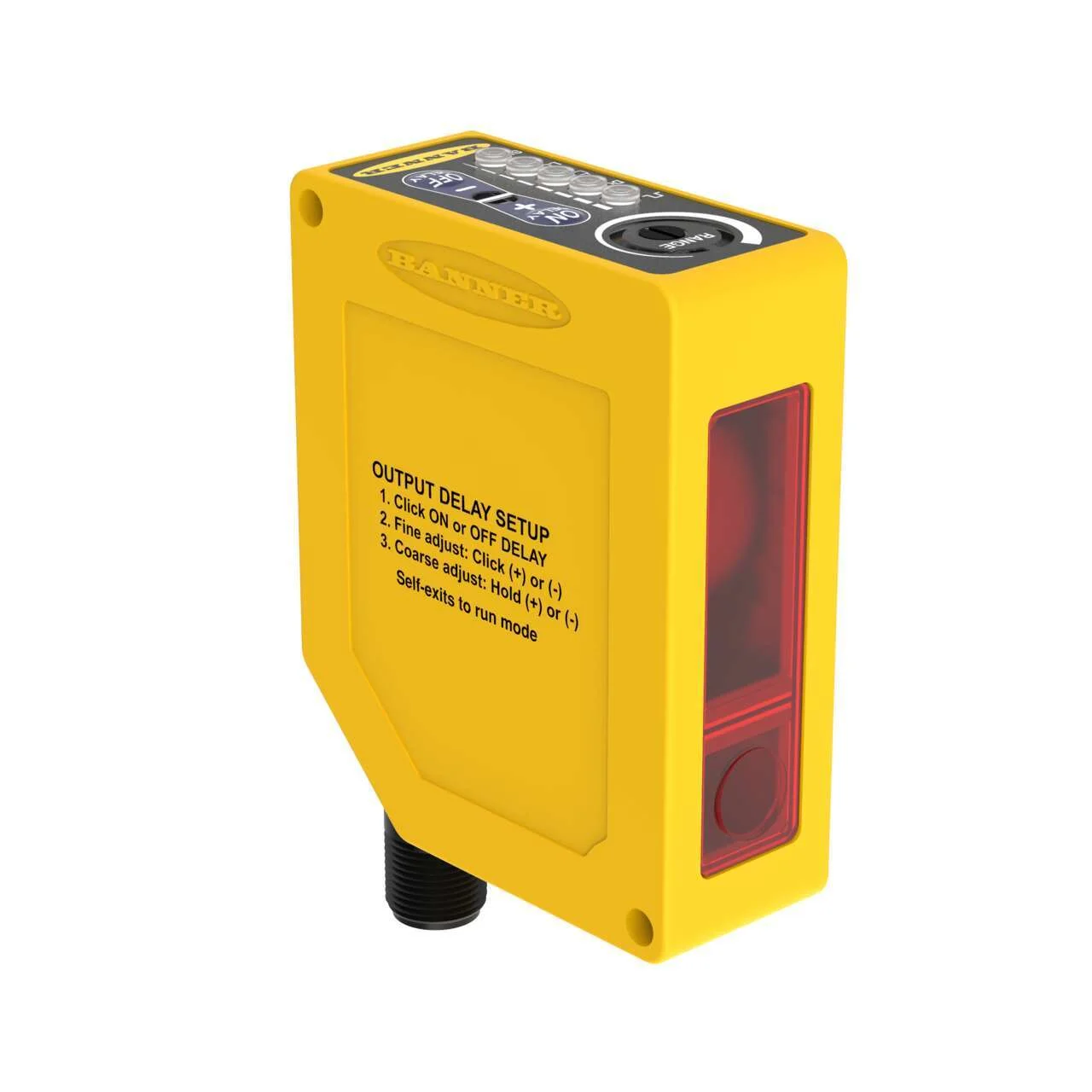

Banner Engineering Q60VR3AFV1000Q1
Q60 Series: Adjust-Field Visible Red Univer Volt
Range: 200-1000 mm; Input: 12-250 V dc or 24-250 V ac
Output: Electromechanical Relay (SPST)
Micro-Style QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Q60 Series: Adjust-Field Visible Red Univer Volt
Range: 200-1000 mm; Input: 12-250 V dc or 24-250 V ac
Output: Electromechanical Relay (SPST)
Micro-Style QD
Specification
| Power | AC/DC Universal |
|---|---|
| Sensing Beam | Visible Red LED |
| Ip Rating | IP67 |
| Nema / Ul Type Rating | NEMA 6 |
| Supply Voltage | 12-250 V dc / 24-250 V ac |
| Item Status | RELEASED |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Background Suppression (Adjustable) |
| Housing Style | Rectangular |
| Primary Housing Material | Thermoplastic |
| Input/ Output | E/M Relay |
| Max Sensing Distance (Mm) | 1000 |
| Outputs | SPST e/m Relay |
| Connection | Integral QD |
| Quick Disconnect Type | 1/2 in. (Micro) |
| Operation | Light/Dark Operate |
| Min Op. Temperature (C) | -20 |
| Max Op. Temp. (C) | 55 |
| Output Response Time (Ms) | 15 |
| Special Feature: Intrinsically Safe | No |
| Special Feature: Remote Teach | No |
| Special Feature: Water Detection | No |
| Sensing Beam Wavelength | 665 |
| Delay At Power Up (Ms) | 150 |
| Repeatability (µS) | 500 |
| Number Of Pins | 4 |
| Max Op. Relative Humidity [%] | 90% @ 50°C |
| Lens Material | Acrylic |
| Adjustments | Screw Adjustment |
| Indicator | LEDs |
| Feature: Washdown Rated | No |
| Feature: Clear Object Detection | No |
| Feature: Timing (Hold/Delay) | Yes |
| Feature: Audible | No |
| Feature: Chemical Resistant | No |
| Feature: Quick Disconnect | Yes |
| Feature: Health/Marginal Signal Output | No |
| Device Net | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 10/27/2022 |
