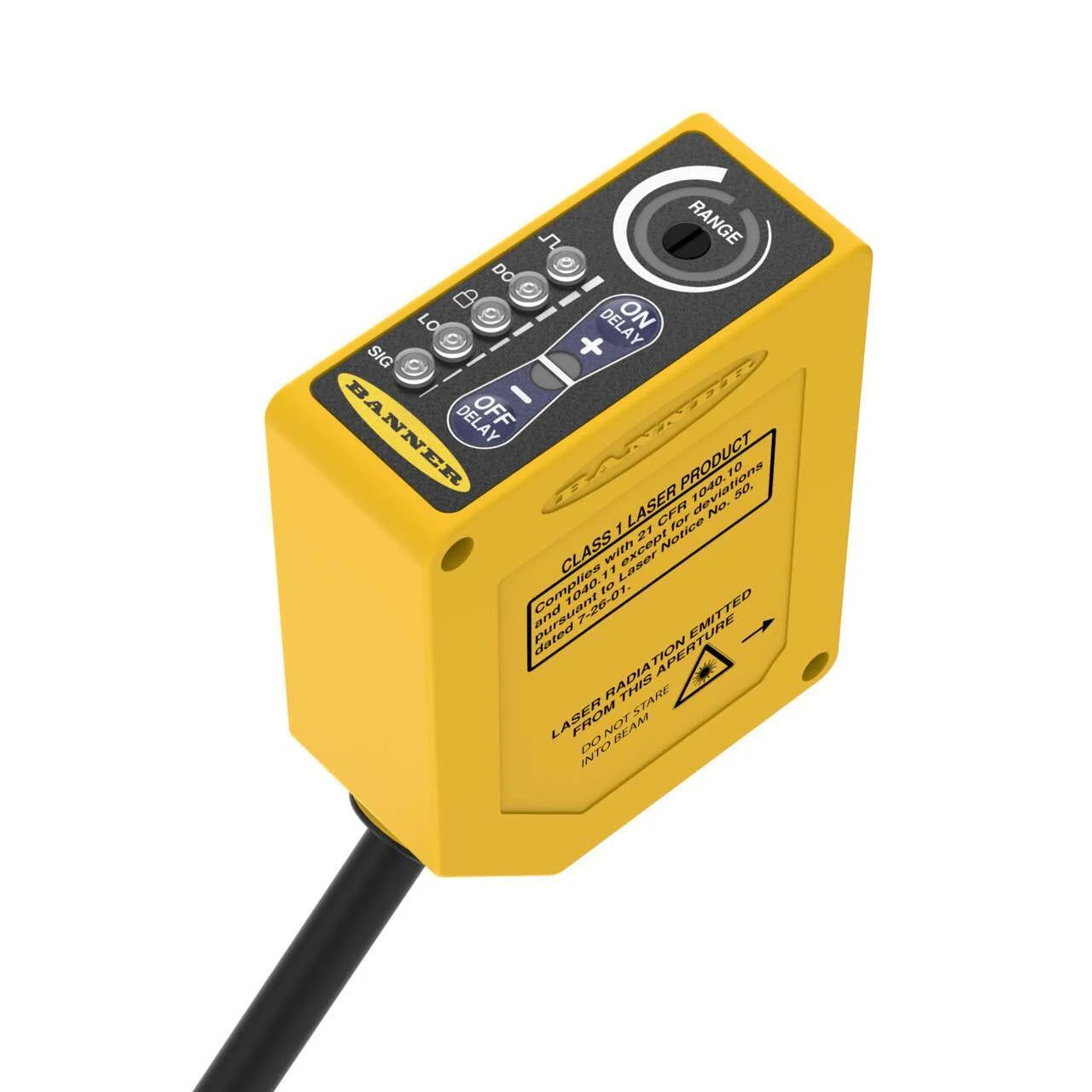

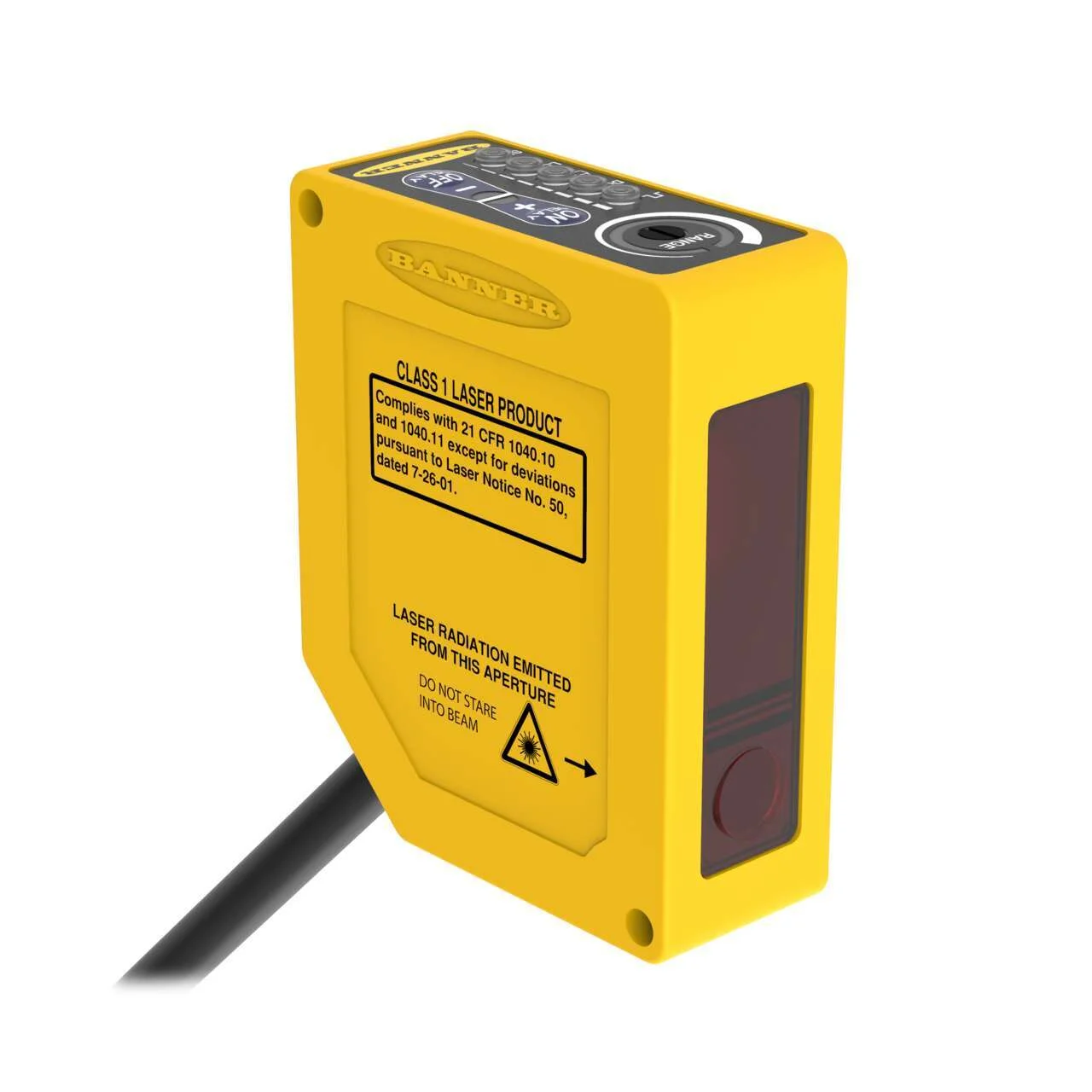

Banner Engineering Q60BB6LAF1400QPMA
Q60BB6LAF1400QPMA
150 mm (6 in) 5-pin M12 PUR Pigtail QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Q60BB6LAF1400QPMA
150 mm (6 in) 5-pin M12 PUR Pigtail QD
Specification
| Power | DC |
|---|---|
| Sensing Beam | Visible Red Laser |
| Cable Length (M) | 0.15 |
| Ip Rating | IP67 |
| Nema / Ul Type Rating | NEMA 4X |
| Supply Voltage | 10-30 V dc |
| Item Status | RELEASED |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Background Suppression (Adjustable) |
| Housing Style | Rectangular |
| Primary Housing Material | Thermoplastic |
| Laser Classification | Class 1 |
| Small Visible Spot | Laser |
| Input/ Output | Discrete |
| Max Sensing Distance (Mm) | 1400 |
| Outputs | Bipolar (NPN & PNP) |
| Connection | Pigtail PUR QD |
| Quick Disconnect Type | M12 |
| Operation | Light/Dark Operate |
| Min Op. Temperature (C) | -10 |
| Max Op. Temp. (C) | 50 |
| Output Response Time (Ms) | 2 |
| Special Feature: Intrinsically Safe | No |
| Special Feature: Remote Teach | Yes |
| Special Feature: Water Detection | No |
| Delay At Power Up (Ms) | 1000 |
| Repeatability (µS) | 500 |
| Number Of Pins | 5 |
| Max Op. Relative Humidity [%] | 90% @ 50°C |
| Lens Material | Acrylic |
| Adjustments | Screw Adjustment |
| Indicator | LEDs |
| Feature: Washdown Rated | No |
| Feature: Clear Object Detection | No |
| Feature: Timing (Hold/Delay) | Yes |
| Feature: Audible | No |
| Feature: Chemical Resistant | No |
| Feature: Quick Disconnect | Yes |
| Feature: Health/Marginal Signal Output | No |
| Device Net | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 02/15/2024 |
