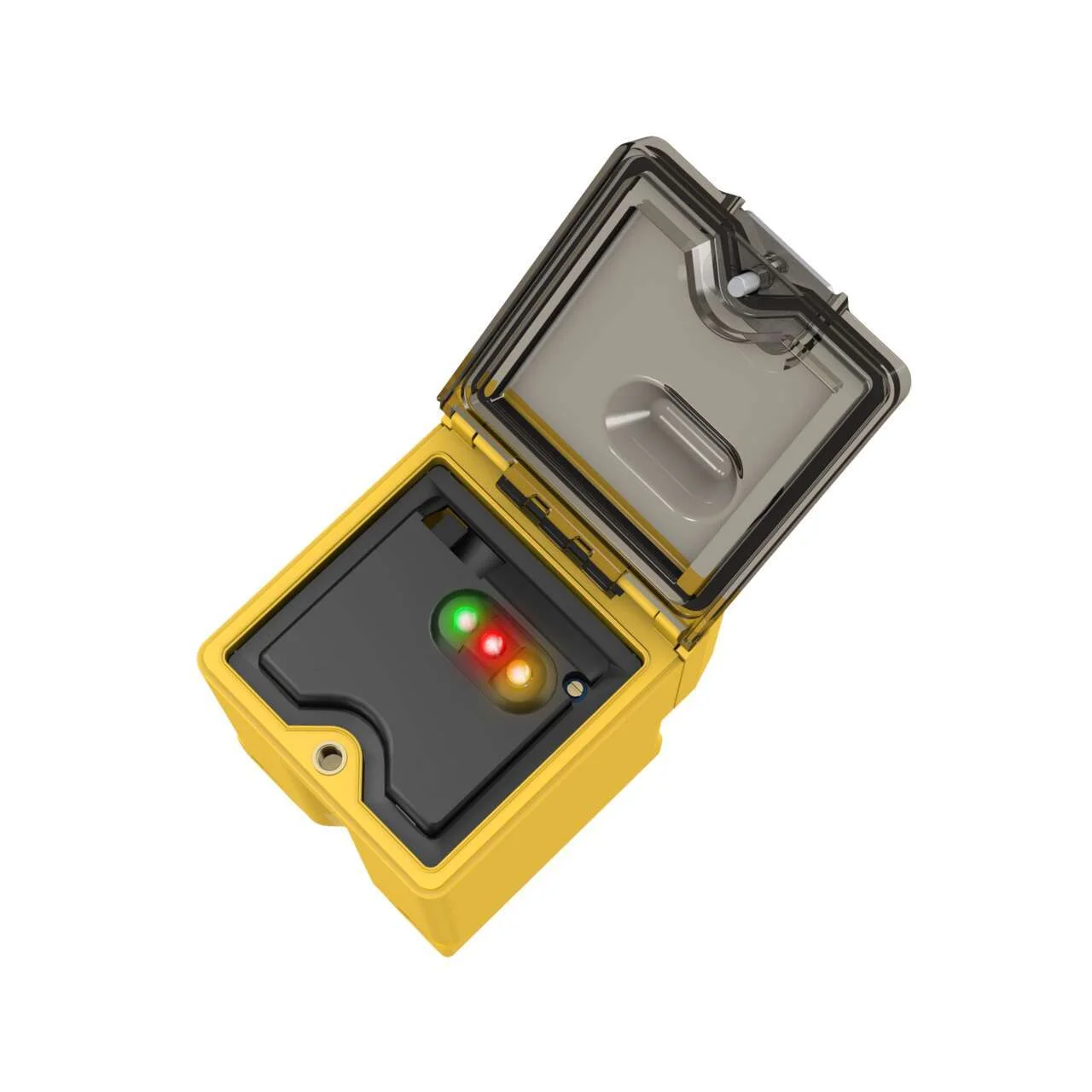

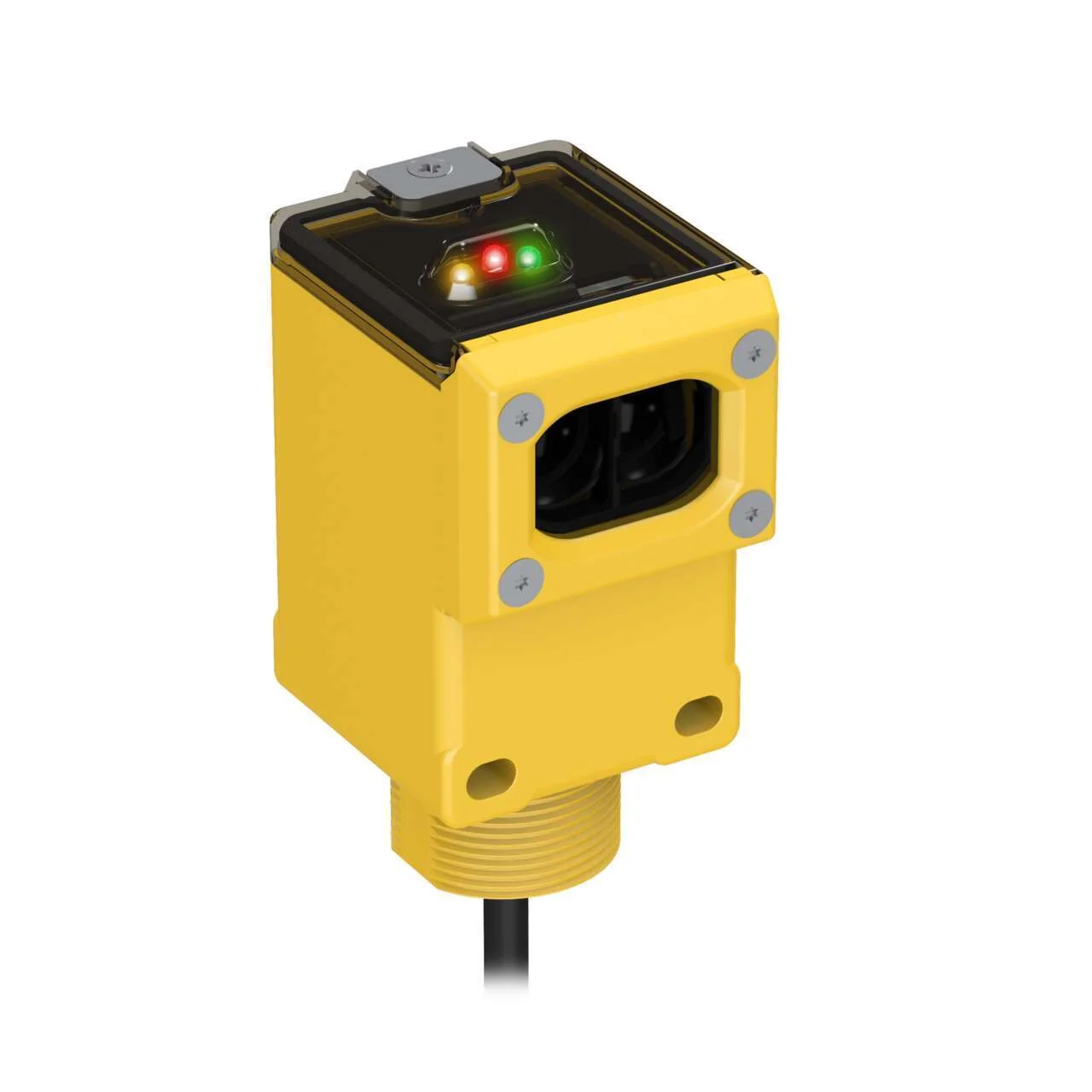

Banner Engineering Q45VR3R
Q45 Series: Receiver
Range: 60 m; Input: 12-250 V dc / 24-250 V ac
Output: SPDT Electromechanical Relay
2 m (6.5 ft) Cable
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Q45 Series: Receiver
Range: 60 m; Input: 12-250 V dc / 24-250 V ac
Output: SPDT Electromechanical Relay
2 m (6.5 ft) Cable
Specification
| Power | AC/DC Universal |
|---|---|
| Sensing Beam | Infrared LED |
| Cable Length (M) | 2 |
| Ip Rating | IP67 |
| Nema / Ul Type Rating | NEMA 4X |
| Supply Voltage | 12-250 V dc / 24-250 V ac |
| Item Status | RELEASED |
| Sensing Mode (General) | Opposed |
| Sensing Mode (Detailed) | Receiver |
| Housing Style | Rectangular |
| Primary Housing Material | Thermoplastic |
| Input/ Output | E/M Relay |
| Max Sensing Distance (Mm) | 60000 |
| Outputs | SPDT e/m Relay |
| Connection | Cable |
| Operation | Light/Dark Operate |
| Min Op. Temperature (C) | -25 |
| Max Op. Temp. (C) | 55 |
| Output Response Time (Ms) | 15 |
| Special Feature: Intrinsically Safe | No |
| Special Feature: Remote Teach | No |
| Special Feature: Water Detection | No |
| Delay At Power Up (Ms) | 100 |
| Repeatability (µS) | 250 |
| Number Of Pins | 5 |
| Max Op. Relative Humidity [%] | 90% @ 50°C |
| Lens Material | Acrylic |
| Adjustments | Potentiometer |
| Barrel Diameter (Mm) | 30 |
| Indicator | LEDs |
| Opposed Mode Emitter/Receiver | Receiver |
| Feature: Washdown Rated | No |
| Feature: Clear Object Detection | No |
| Feature: Timing (Hold/Delay) | Yes |
| Feature: Audible | No |
| Feature: Chemical Resistant | No |
| Feature: Quick Disconnect | No |
| Feature: Health/Marginal Signal Output | No |
| Device Net | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 02/06/2024 |
