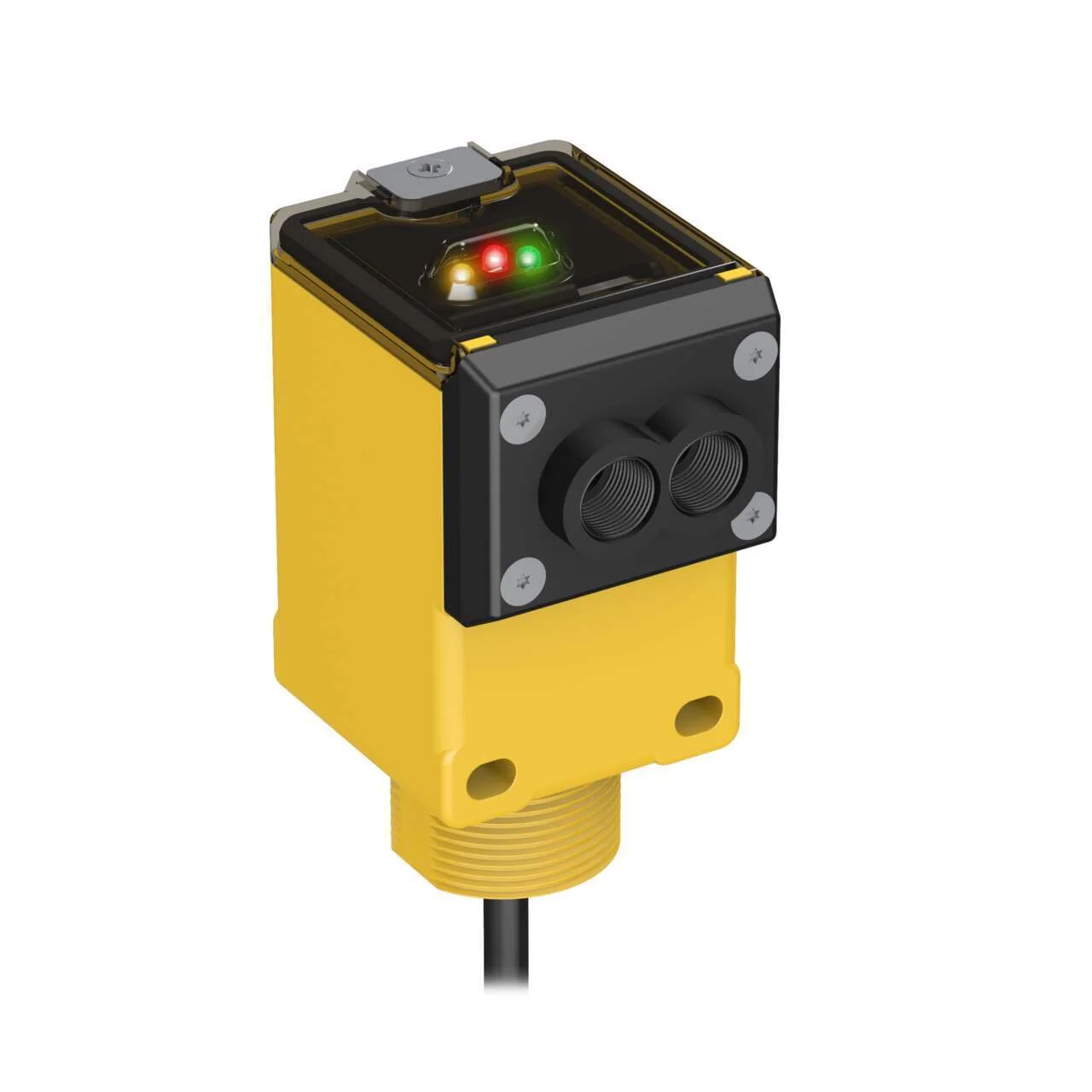

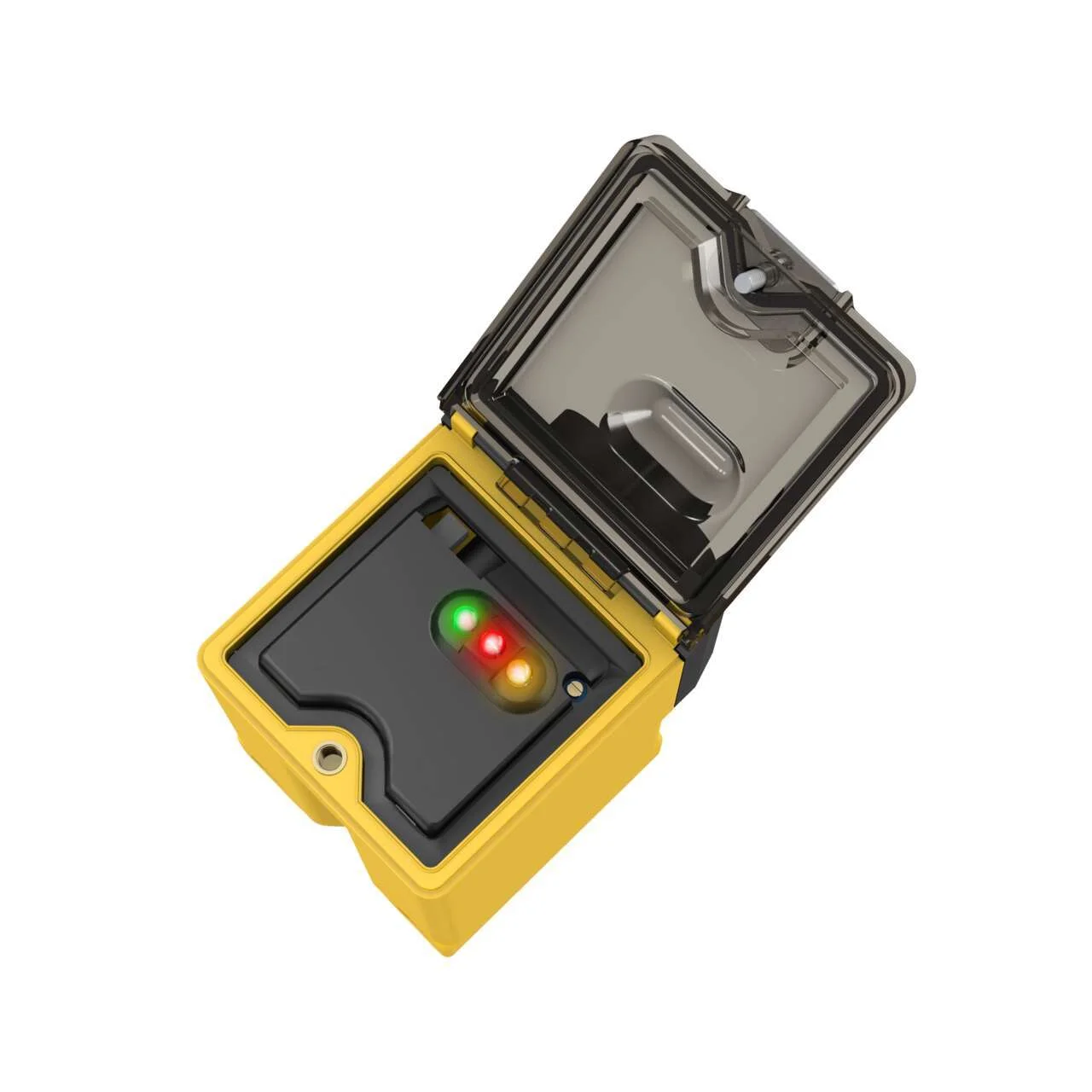

Banner Engineering Q45BB6F W/30
Q45 Series: Infrared Glass Fiber Optic
Range: Depends on Fiber; Input: 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
9 m (30 ft) Cable
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Q45 Series: Infrared Glass Fiber Optic
Range: Depends on Fiber; Input: 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
9 m (30 ft) Cable
Specification
| Power | DC |
|---|---|
| Cable Length (M) | 9 |
| Ip Rating | IP67 |
| Accepts Fiber Termination Type | Glass Fiber Termination |
| Nema / Ul Type Rating | NEMA 6P |
| Item Status | RELEASED |
| Housing Style | Rectangular |
| Primary Housing Material | Thermoplastic |
| Input/ Output | Discrete |
| Color Led Amplifiers | Infrared |
| Fiber Type | Glass Only |
| Output | Bipolar (NPN & PNP) |
| Connection | Cable |
| Output Type (Specific) | Single Discrete |
| Repeatability (µS) | 500 |
| Number Of Pins | 4 |
| Max Op. Temperature (C) | 70 |
| Min Op. Temperature (C) | -40 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
| Special Feature: Remote Teach | No |
| Intrinsically Safe | No |
| Adjustments | Potentiometer |
| Power Supply/Supply Voltage | 10-30 V dc |
| Delay At Power Up (Ms) | 100 |
| Indicator Display Type | Indicator LEDs |
| Minimum Response Time (Ms) | 2 |
| Special Feature: Bussable Power | No |
| Feature: Washdown Rated | No |
| Feature: Timing (Hold/Delay) | Yes |
| Feature: Audible | No |
| Feature: Quick Disconnect | No |
| Feature: Health/Marginal Signal Output | No |
| Housing Material | Thermoplastic |
