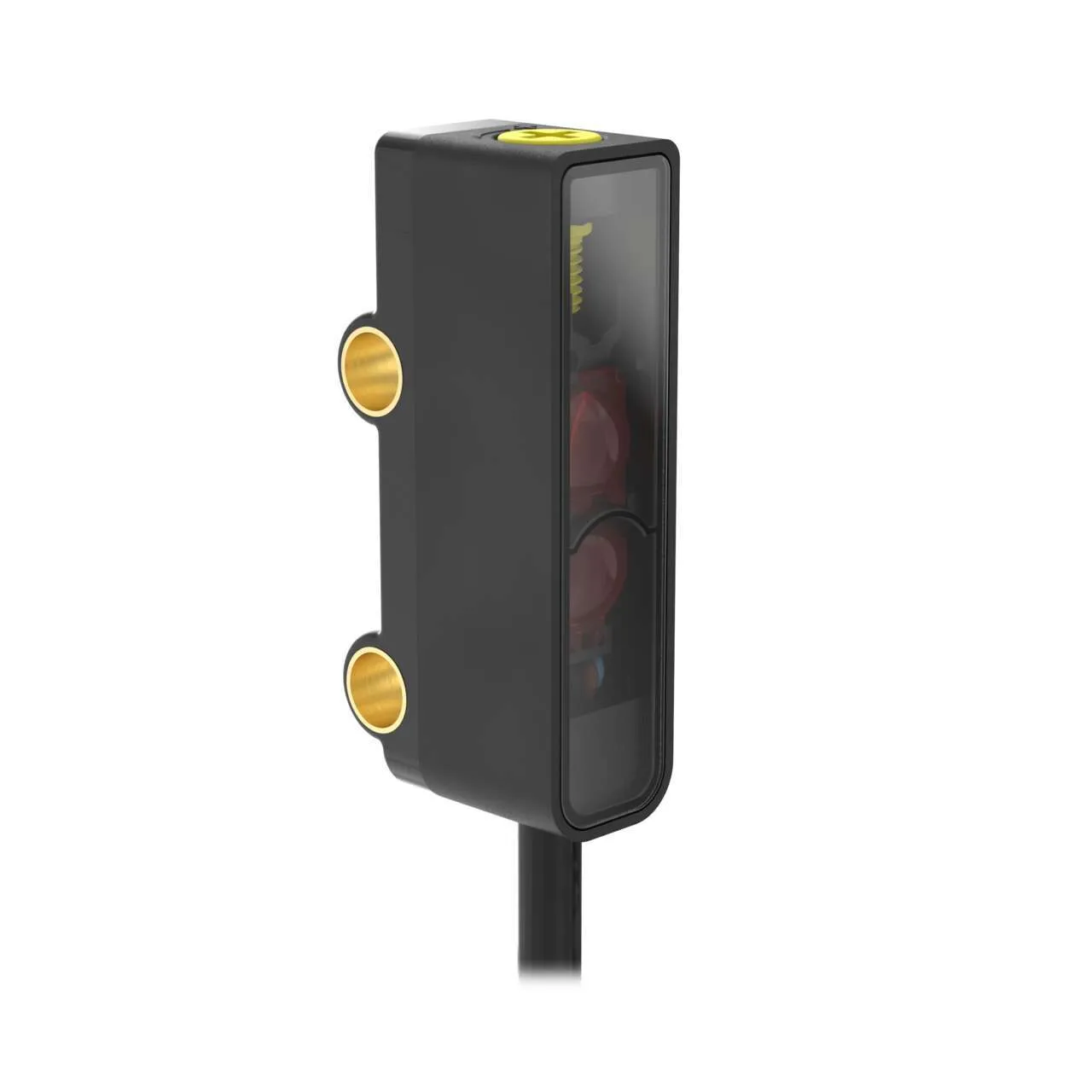

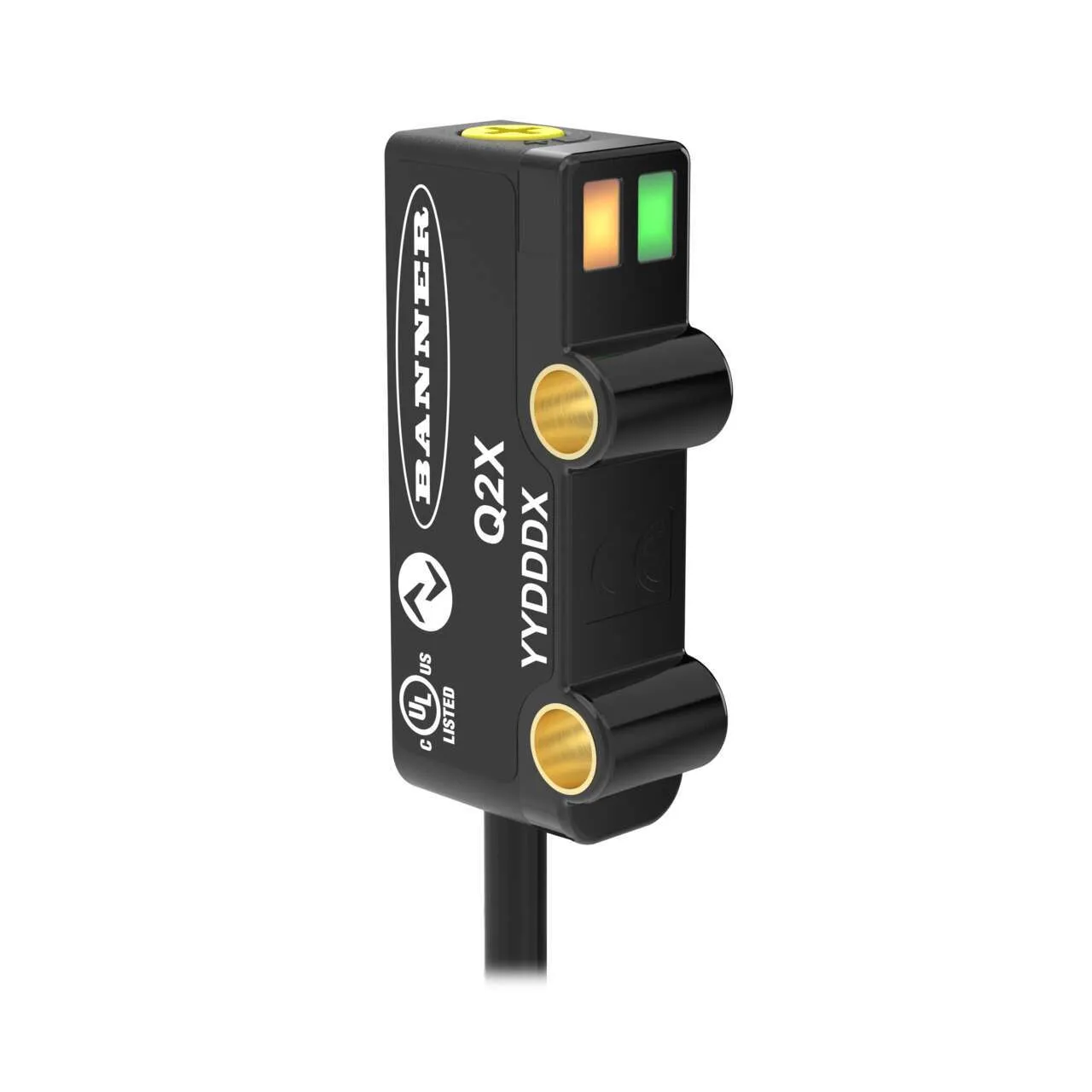

Banner Engineering Q2XANAF150-Q3

Q2X Series: Adjustable Field Sensor. Part number: 810301. model: Q2XANAF150-Q3. part_number: 810301. list_price: 154 USD. is_new: 0. is_in_stock: 1. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/217279.pdf. BAN_Sensing_Mode_General: Proximity. BAN_Sensing_Mode_Detailed: Background Suppression (Adjustable). BANSensors_SensRange: 150. BANSensors_Output: NPN. BAN_Connection: Pigtail QD. BAN_QDType: M8. BANSensors_Operation: Light Operate. BAN_CommProtocols_IOLink: No. Power: DC. Sensing Beam: Visible Red LED. Cable Length (m): 0.15. IP Rating: IP67. NEMA / UL Type Rating: NEMA 6. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Sensing Mode (General): Proximity. Sensing Mode (Detailed): Background Suppression (Adjustable). Housing Style: Rectangular. Primary Housing Material: ABS/Polycarbonate. Small Visible Spot: LED. Input/Output: Discrete. Max Sensing Distance (mm): 150. Outputs: NPN. Connection: Pigtail QD. Quick Disconnect Type: M8. Operation: Light Operate. Min Op. Temperature (C): -25. Max Op. Temp. (C): 50. Output response time (ms): 0.85. Special Feature: Intrinsically Safe: No. Special Feature: Remote Teach: No. Special Feature: Water Detection: No. Sensing Beam Wavelength: 645. Delay at Power-up (ms): 120. Repeatability (µs): 125. Number of Pins: 3. Max Op. Relative Humidity [%]: 95% @ 50°C. Lens Material: Acrylic. Adjustments: Mechanical Screw. Indicator: LEDs. Feature: Washdown Rated: No. Feature: Clear Object Detection: No. Feature: Timing (Hold/Delay): No. Feature: Audible: No. Feature: Chemical Resistant: No. Feature: Quick Disconnect: Yes. Feature: Health/Marginal Signal Output: No. DeviceNet: No. IO Link: No
