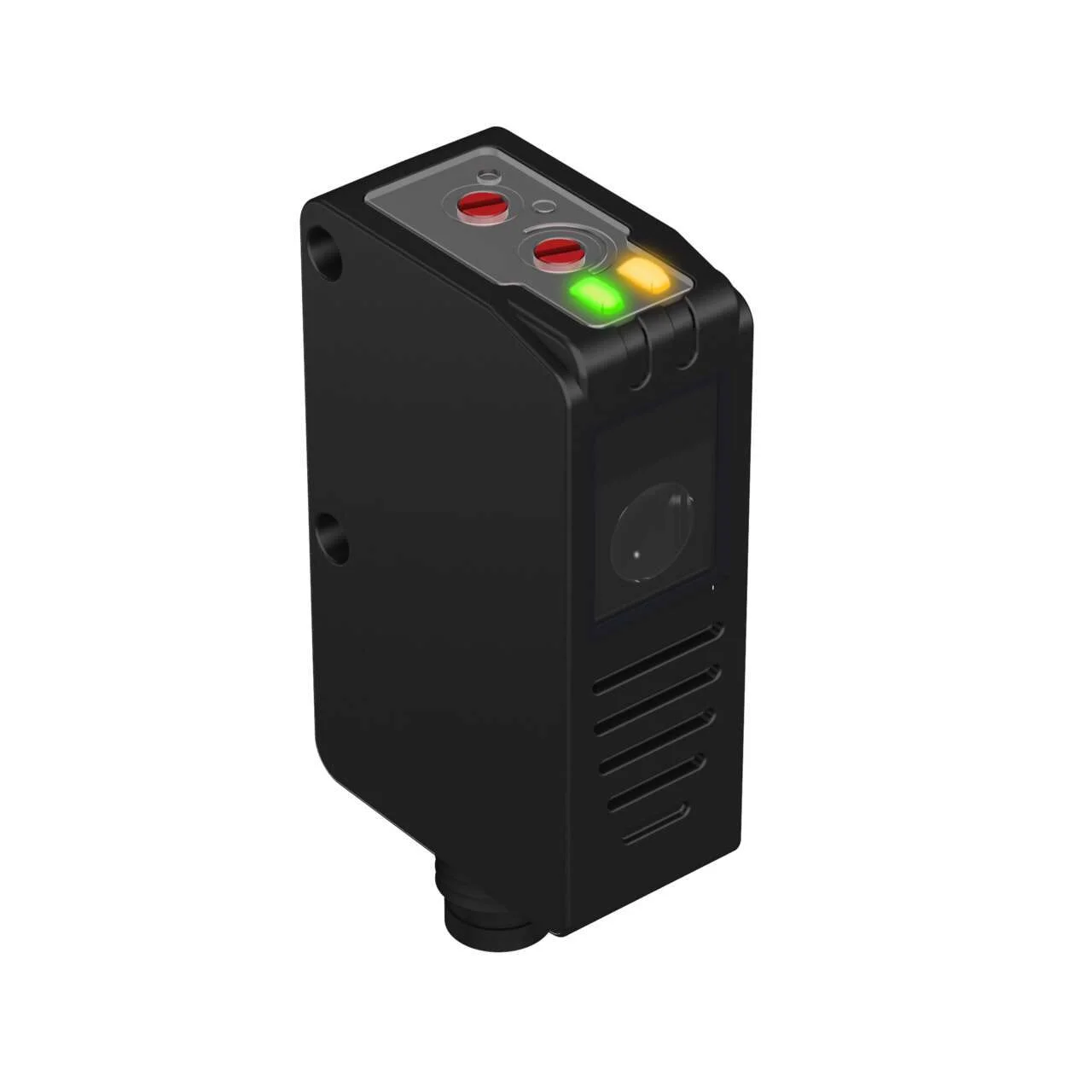

Banner Engineering Q26NXLPQ7
Q26 Series Clear Object Sensor
Range 0-0.8 m; Supply Voltage 12-30 V dc; Rating IP67
NPN Outputs; Coaxial Optics Visible Red LED
4-pin M8 Integral QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Q26 Series Clear Object Sensor
Range 0-0.8 m; Supply Voltage 12-30 V dc; Rating IP67
NPN Outputs; Coaxial Optics Visible Red LED
4-pin M8 Integral QD
Specification
| Power | DC |
|---|---|
| Sensing Beam | Visible Red LED |
| Ip Rating | IP67 |
| Nema / Ul Type Rating | NEMA 4X |
| Supply Voltage | 12-30 V dc |
| Item Status | RELEASED |
| Sensing Mode (General) | Retroreflective |
| Sensing Mode (Detailed) | Polarized (Coaxial) |
| Housing Style | Rectangular |
| Primary Housing Material | Thermoplastic |
| Input/ Output | Discrete |
| Max Sensing Distance (Mm) | 800 |
| Outputs | NPN |
| Connection | Integral QD |
| Quick Disconnect Type | M8 |
| Operation | Light/Dark Operate |
| Min Op. Temperature (C) | -10 |
| Max Op. Temp. (C) | 55 |
| Output Response Time (Ms) | 0.25 |
| Special Feature: Intrinsically Safe | No |
| Special Feature: Remote Teach | No |
| Special Feature: Water Detection | No |
| Sensing Beam Wavelength | 660 |
| Delay At Power Up (Ms) | N/A |
| Repeatability (µS) | 50 |
| Number Of Pins | 4 |
| Max Op. Relative Humidity [%] | 90% @ 50°C |
| Lens Material | Glass |
| Adjustments | Potentiometer |
| Indicator | LEDs |
| Feature: Washdown Rated | No |
| Feature: Clear Object Detection | Yes |
| Feature: Timing (Hold/Delay) | No |
| Feature: Audible | No |
| Feature: Chemical Resistant | No |
| Feature: Quick Disconnect | Yes |
| Feature: Health/Marginal Signal Output | Yes |
| Device Net | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 10/27/2022 |
