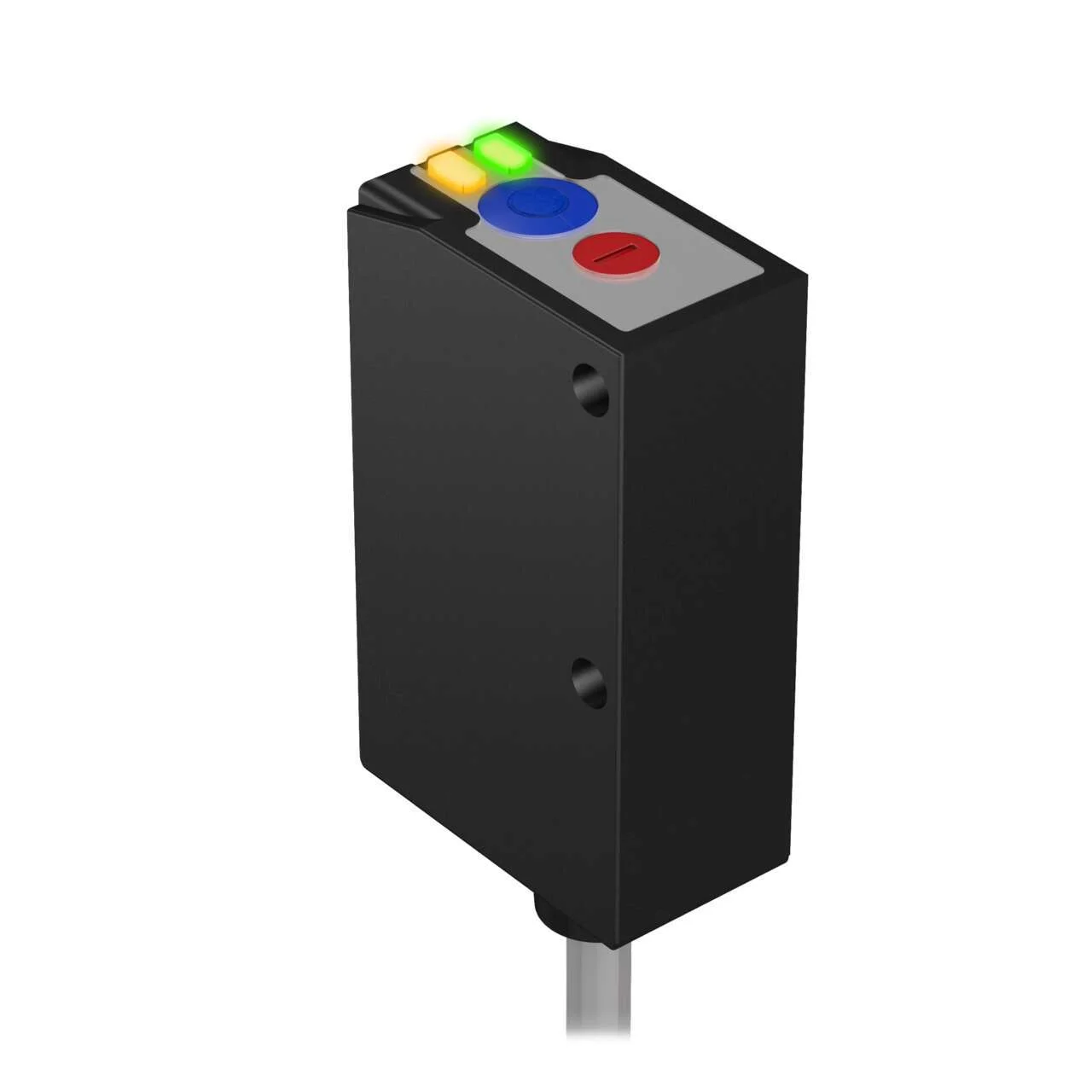

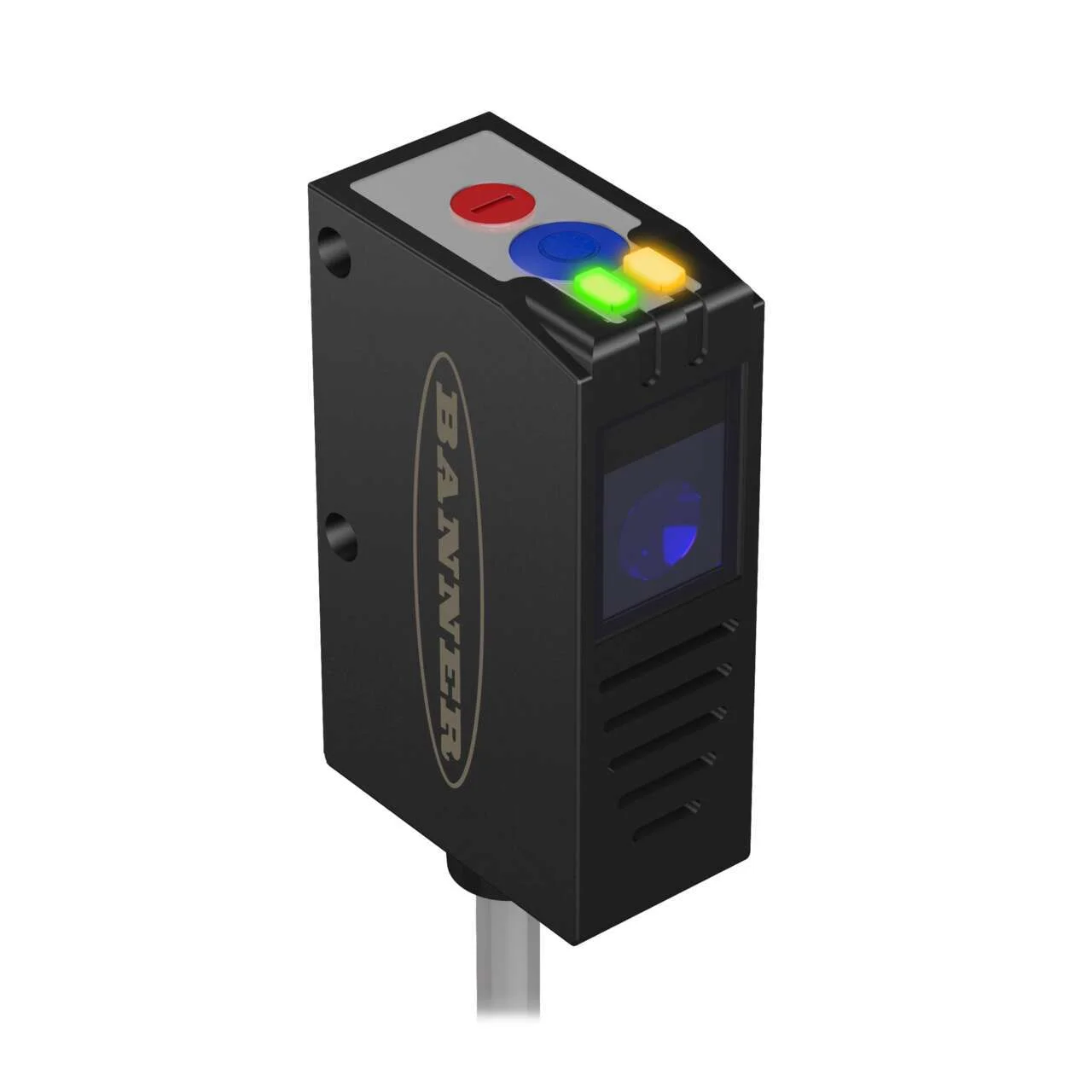

Banner Engineering Q26NLUMQ5
Q26 Series Luminescence Sensor
Range 10-30 mm; Supply Voltage 12-30 V dc; Rating IP67
NPN Outputs; 150 mm (6 in) 5-pin M12 PVC Pigtail QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Q26 Series Luminescence Sensor
Range 10-30 mm; Supply Voltage 12-30 V dc; Rating IP67
NPN Outputs; 150 mm (6 in) 5-pin M12 PVC Pigtail QD
Specification
| Cable Length (M) | 0.15 |
|---|---|
| Ip Rating | IP67 |
| Nema / Ul Type Rating | NEMA 4X |
| Supply Voltage | 12-30 V dc |
| Item Status | RELEASED |
| Primary Housing Material | Thermoplastic |
| Adjustments | Teach Button |
| Sensing Beam | Black Ultraviolet LED |
| Outputs | NPN |
| Connection | Pigtail QD |
| Special Feature: Remote Teach | Yes |
| Quick Disconnect Type | M12 |
| Sensing Beam Wavelength | 375 |
| Max Sensing Range (Mm) | 30 |
| Number Of Pins | 4 |
| Led Orientation | Parallel to sensor length |
| Indicator | LEDs |
| Operation | Light/Dark Operate |
| Output Response Time (Ms) | 0.25 |
| Lens Material | Polycarbonate |
| Max Op. Temperature (C) | 55 |
| Min Op. Temperature (C) | -10 |
| Special Feature: Analog Output | No |
| Beam Spot Size | 1 mm at 12 mm |
| Sf Multifunction Input/Output | No |
| Feature: Timing (Hold/Delay) | No |
| Feature: Quick Disconnect | Yes |
| Application: Luminescence | Yes |
| Application: Registration Mark | No |
| Application: Color | No |
