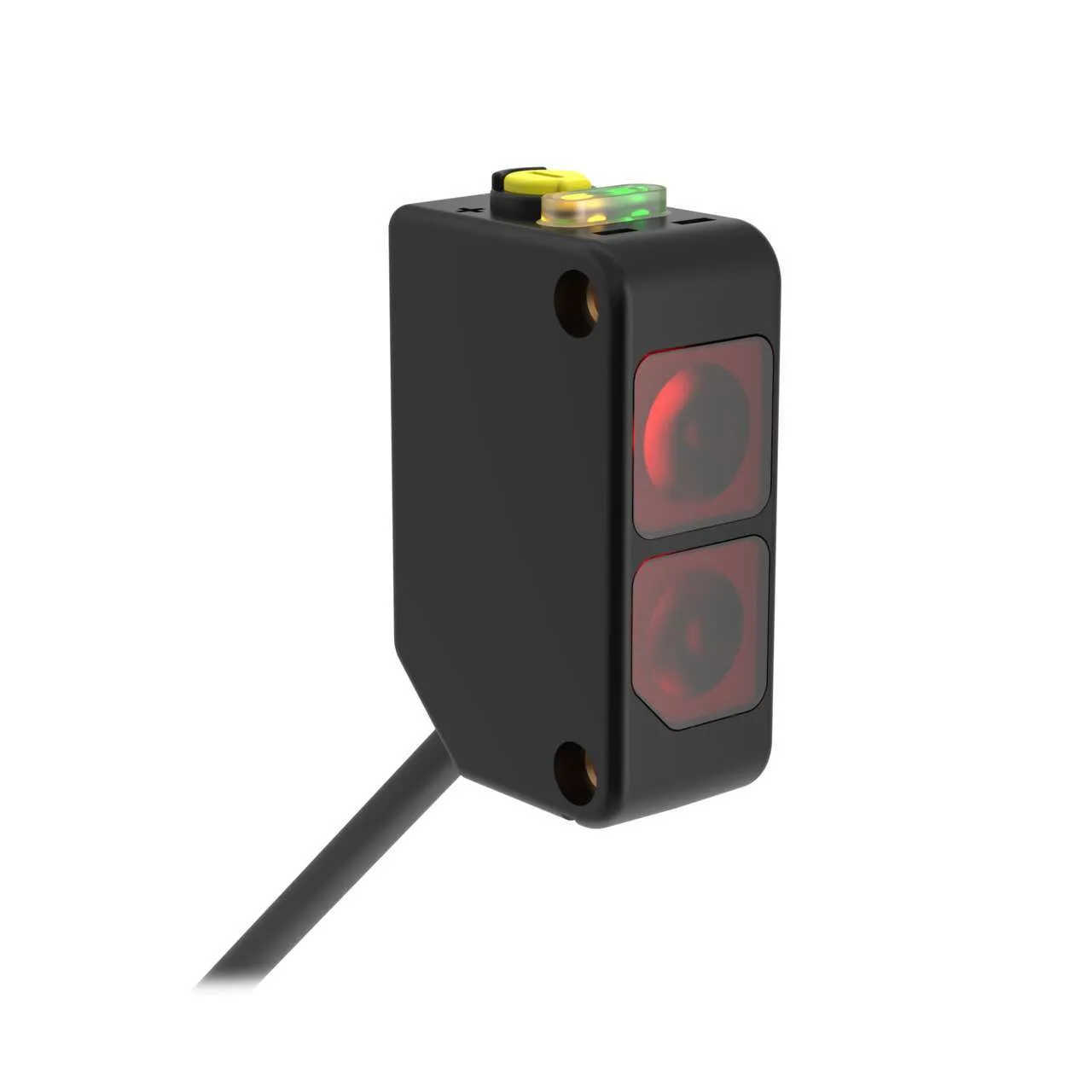

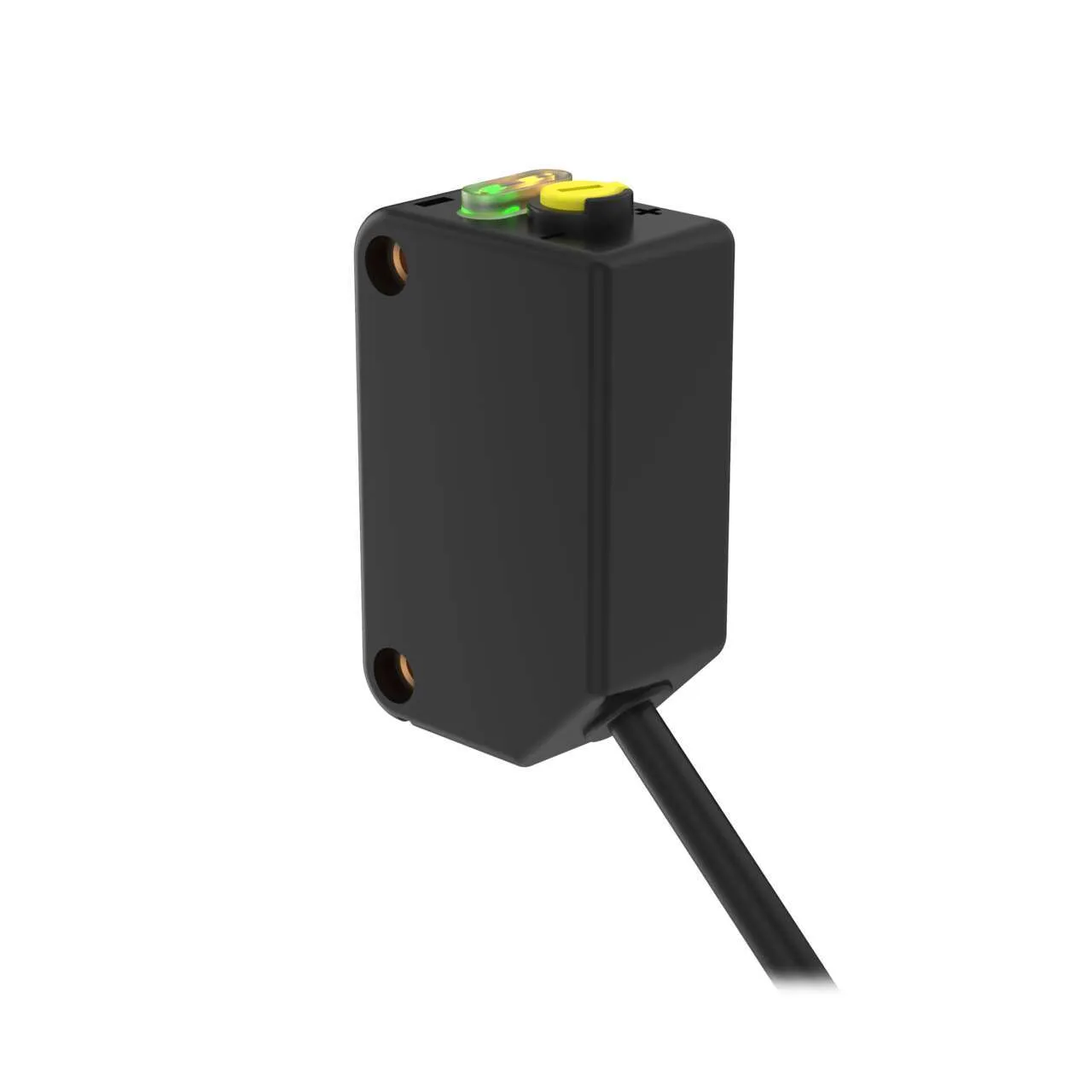

Banner Engineering Q20PDVS W/30

WORLD-BEAM Q20 Series: Small Spot Diffuse (Red). Part number: 807430. model: Q20PDVS W/30. part_number: 807430. list_price: 138 USD. is_new: 0. is_in_stock: 1. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/127816.pdf. BAN_Sensing_Mode_General: Proximity. BAN_Sensing_Mode_Detailed: Diffuse. BAN_Health_Marg_Signal_Output: No. BANSensors_SF_RemoteTeach: No. BAN_Timing_Hold_Delay: No. BANSensors_SensRange: 250. BAN_IO_General: Discrete. BANSensors_Output: PNP. BANSensors_Operation: Light/Dark Operate. BANSensors_Adjustment: Potentiometer. BANSensors_ResponseTime: 0.85. BAN_Small_Spot: LED. BAN_CommProtocols_IOLink: No. BAN_Primary_Housing_Material: ABS. BAN_Connection: Cable. BAN_QDType: —. BAN_CableLength: 9. BAN_SensingBeam: Visible Red LED. Power: DC. Sensing Beam: Visible Red LED. Cable Length (m): 9. IP Rating: IP67. NEMA / UL Type Rating: NEMA 4X. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Sensing Mode (General): Proximity. Sensing Mode (Detailed): Diffuse. Housing Style: Rectangular. Primary Housing Material: ABS. Small Visible Spot: LED. Input/Output: Discrete. Max Sensing Distance (mm): 250. Outputs: PNP. Connection: Cable. Operation: Light/Dark Operate. Min Op. Temperature (C): -20. Max Op. Temp. (C): 60. Output response time (ms): 0.85. Special Feature: Intrinsically Safe: No. Special Feature: Remote Teach: No. Special Feature: Water Detection: No. Sensing Beam Wavelength: 660. Delay at Power-up (ms): 100. Repeatability (µs): 90. Number of Pins: 4. Max Op. Relative Humidity [%]: 95% @ 50°C. Lens Material: Acrylic. Adjustments: Potentiometer. Indicator: LEDs. Feature: Washdown Rated: No. Feature: Clear Object Detection: No. Feature: Timing (Hold/Delay): No. Feature: Audible: No. Feature: Chemical Resistant: No. Feature: Quick Disconnect: No. Feature: Health/Marginal Signal Output: No. DeviceNet: No. IO Link: No
