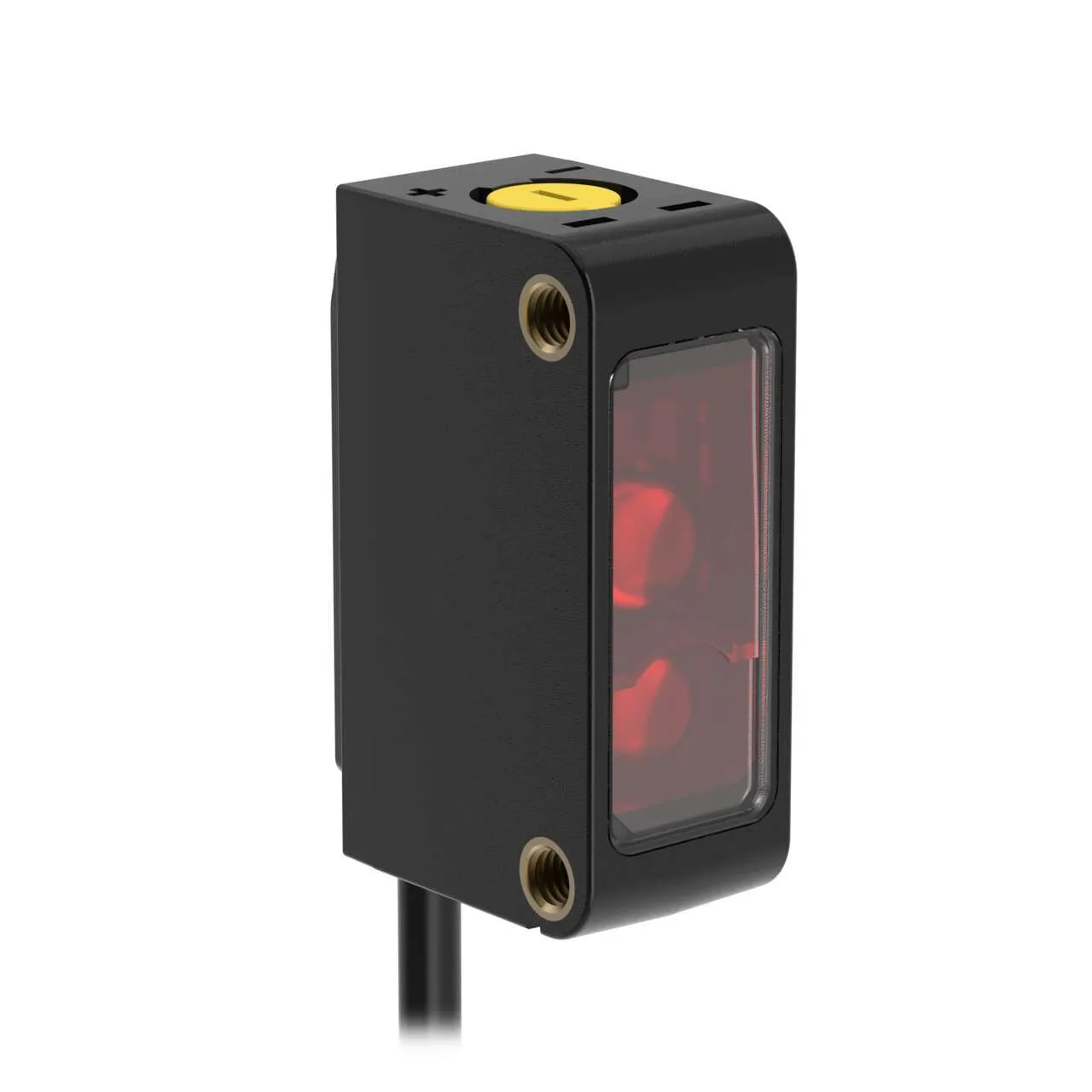

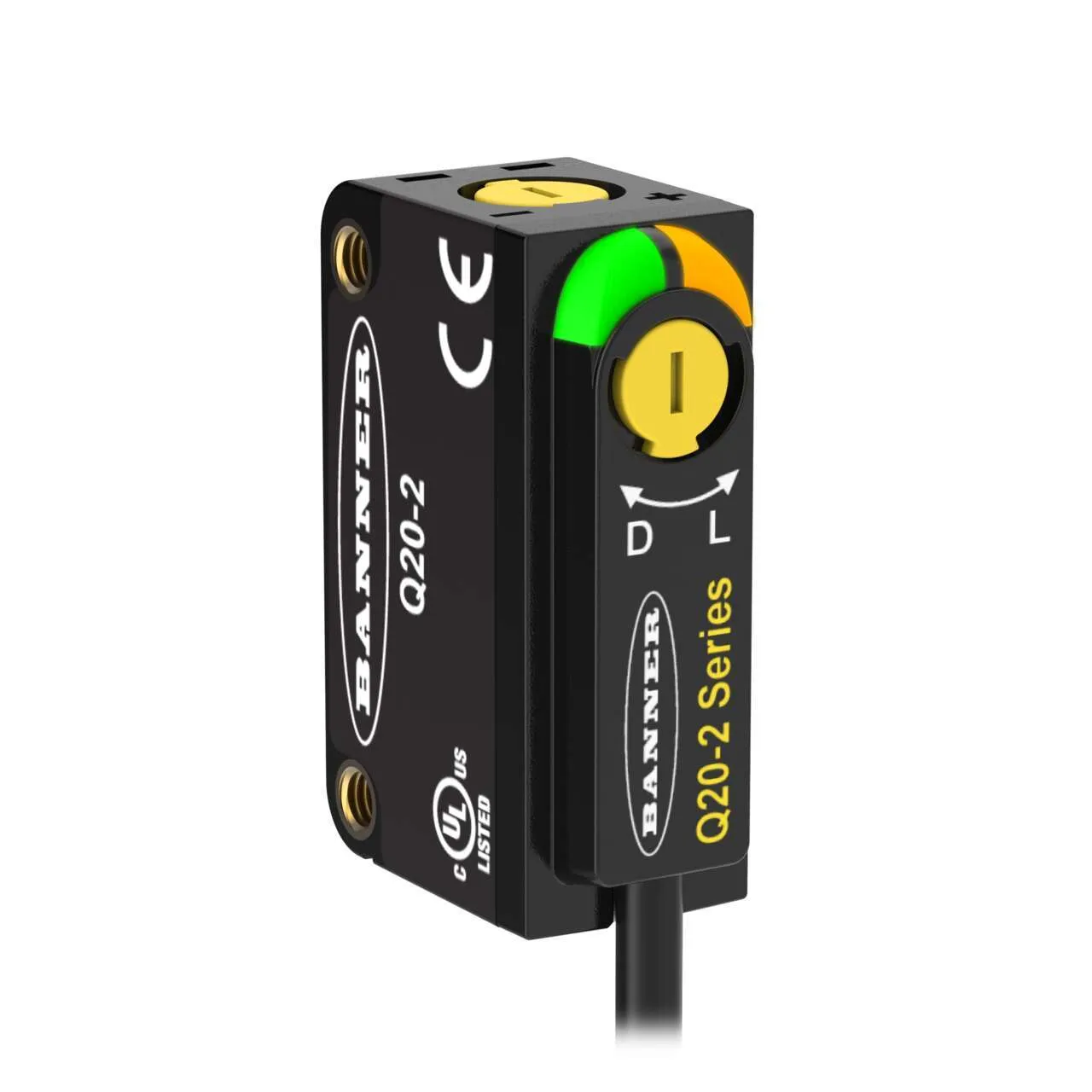

Banner Engineering Q20-2NLP-Q3

Q20-2 Series: Polarized Retroreflective with Pot. Part number: 811965. model: Q20-2NLP-Q3. part_number: 811965. list_price: 111 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/227993.pdf. BAN_Sensing_Mode_Detailed: Polarized. BANSensors_Output: NPN. BANSensors_Operation: Light/Dark Operate. BAN_Connection: Pigtail QD. BAN_Quick_Disconnect: Yes. BAN_QDType: M8. Power: DC. Sensing Beam: Visible Red LED. Cable Length (m): 0.15. IP Rating: IP67. NEMA / UL Type Rating: NEMA 4X. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Sensing Mode (General): Retroreflective. Sensing Mode (Detailed): Polarized. Housing Style: Rectangular. Primary Housing Material: ABS. Input/Output: Discrete. Max Sensing Distance (mm): 5000. Outputs: NPN. Connection: Pigtail QD. Quick Disconnect Type: M8. Operation: Light/Dark Operate. Min Op. Temperature (C): -25. Max Op. Temp. (C): 70. Output response time (ms): 0.6. Special Feature: Intrinsically Safe: No. Special Feature: Remote Teach: No. Special Feature: Water Detection: No. Sensing Beam Wavelength: 645. Delay at Power-up (ms): 120. Repeatability (µs): 144. Number of Pins: 3. Max Op. Relative Humidity [%]: 95% @ 50°C. Lens Material: Acrylic. Adjustments: Potentiometer. Indicator: LEDs. Feature: Washdown Rated: No. Feature: Clear Object Detection: No. Feature: Timing (Hold/Delay): No. Feature: Chemical Resistant: No. Feature: Quick Disconnect: Yes. Feature: Health/Marginal Signal Output: No. DeviceNet: No. IO Link: No. EPLAN Status: Published. EPLAN Original Sent Date: 07/14/2023
