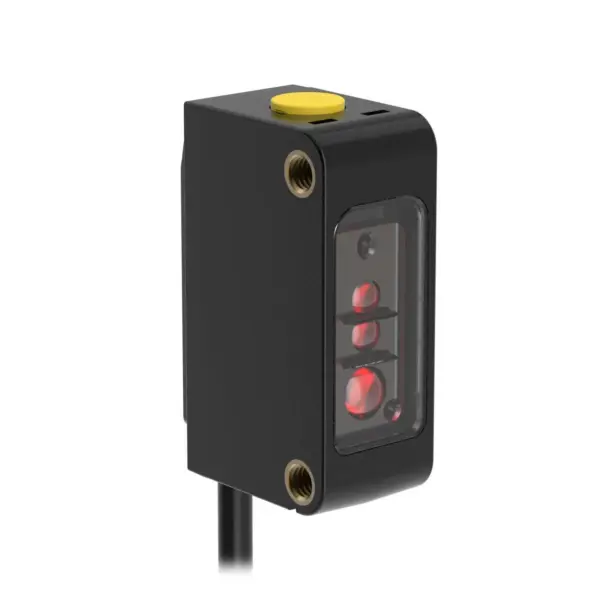

Banner Engineering Q20-2KLAF3-Q5

Q20-2 Series: IR Laser Adjustable Field. Part number: 816289. model: Q20-2KLAF3-Q5. part_number: 816289. list_price: 304 USD. is_new: 0. is_in_stock: 1. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/247960.pdf. BAN_Sensing_Mode_Detailed: Background Suppression (Time of Flight). BANSensors_Output: PNP with IO-Link. BANSensors_Operation: Light/Dark Operate. BAN_Connection: Pigtail QD. BAN_Quick_Disconnect: Yes. BAN_QDType: M12. Power: DC. Sensing Beam: Infrared Laser. Cable Length (m): 0.15. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Sensing Mode (General): Proximity. Sensing Mode (Detailed): Background Suppression (Time of Flight). Housing Style: Rectangular. Primary Housing Material: PC/ABS. Laser Classification: Class 1. Small Visible Spot: LED. Input/Output: Discrete. Max Sensing Distance (mm): 3000. Outputs: PNP with IO-Link. Connection: Pigtail QD. Quick Disconnect Type: M12. Operation: Light/Dark Operate. Min Op. Temperature (C): -20. Max Op. Temp. (C): 50. Output response time (ms): 100. Special Feature: Remote Teach: Yes. Sensing Beam Wavelength: 940. Delay at Power-up (ms): 2000. Number of Pins: 4. Max Op. Relative Humidity [%]: 95% @ 50°C. Lens Material: Acrylic. Adjustments: Teach Button. Indicator: LEDs. Feature: Washdown Rated: No. Feature: Clear Object Detection: Yes. Feature: Timing (Hold/Delay): Yes. Feature: Chemical Resistant: No. Feature: Quick Disconnect: Yes. Feature: Health/Marginal Signal Output: No. DeviceNet: No. IO Link: Yes. EPLAN Status: Pending Publish. EPLAN Original Sent Date: 10/29/2025
