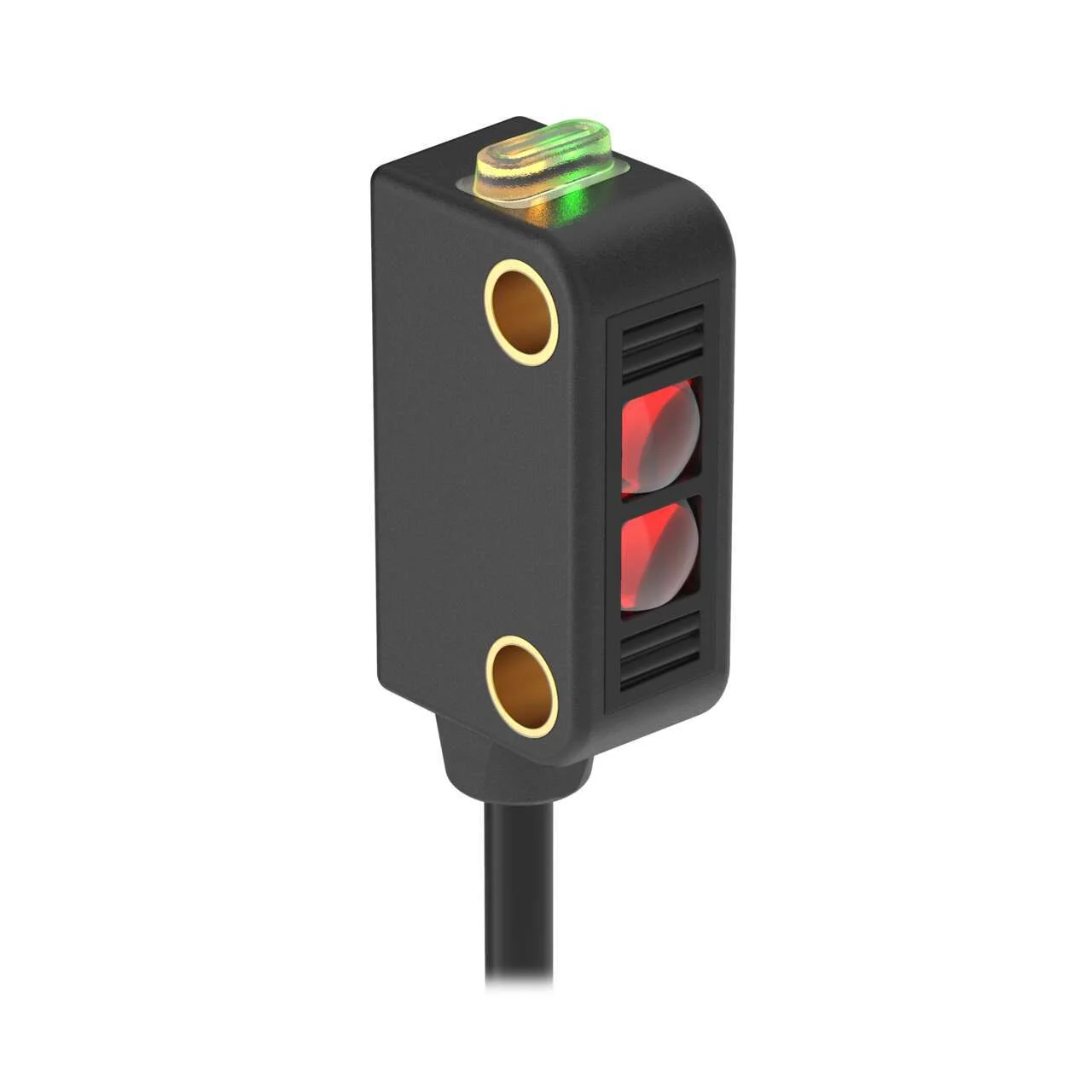

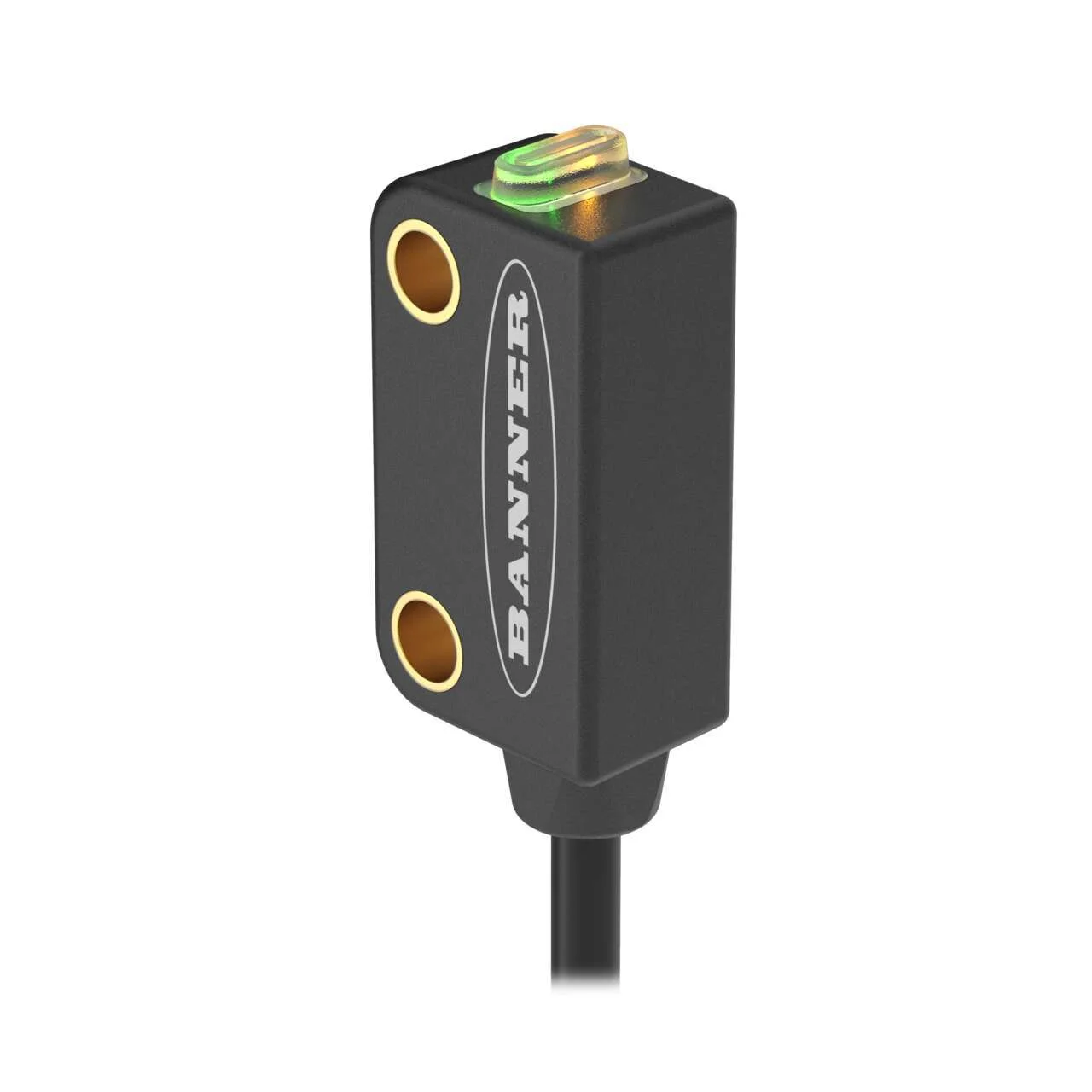

Banner Engineering Q12VP6FF50Q5
WORLD-BEAM Q12 Series: Fixed-Field
Range: 50 mm Cutoff; Input: 10-30 V dc
Output: LO (Light Operate); PNP complementary
150 mm (6 in) 4-pin M12 Pigtail QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
WORLD-BEAM Q12 Series: Fixed-Field
Range: 50 mm Cutoff; Input: 10-30 V dc
Output: LO (Light Operate); PNP complementary
150 mm (6 in) 4-pin M12 Pigtail QD
Specification
| Power | DC |
|---|---|
| Sensing Beam | Visible Red LED |
| Cable Length (M) | 0.15 |
| Ip Rating | IP67 |
| Supply Voltage | 10-30 V dc |
| Item Status | RELEASED |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Background Suppression (Fixed) |
| Housing Style | Rectangular |
| Primary Housing Material | Thermoplastic |
| Small Visible Spot | LED |
| Input/ Output | Discrete |
| Max Sensing Distance (Mm) | 50 |
| Outputs | PNP |
| Connection | Pigtail QD |
| Quick Disconnect Type | M12 |
| Operation | Light Operate |
| Min Op. Temperature (C) | -20 |
| Max Op. Temp. (C) | 55 |
| Output Response Time (Ms) | 0.85 ON/OFF |
| Special Feature: Intrinsically Safe | No |
| Special Feature: Remote Teach | No |
| Special Feature: Water Detection | No |
| Sensing Beam Wavelength | 640 |
| Delay At Power Up (Ms) | 120 |
| Repeatability (µS) | 175 |
| Number Of Pins | 4 |
| Max Op. Relative Humidity [%] | 95% @ 50°C |
| Lens Material | Polycarbonate |
| Adjustments | N/A |
| Indicator | LEDs |
| Feature: Washdown Rated | No |
| Feature: Clear Object Detection | No |
| Feature: Timing (Hold/Delay) | No |
| Feature: Audible | No |
| Feature: Chemical Resistant | No |
| Feature: Quick Disconnect | Yes |
| Feature: Health/Marginal Signal Output | No |
| Device Net | No |
