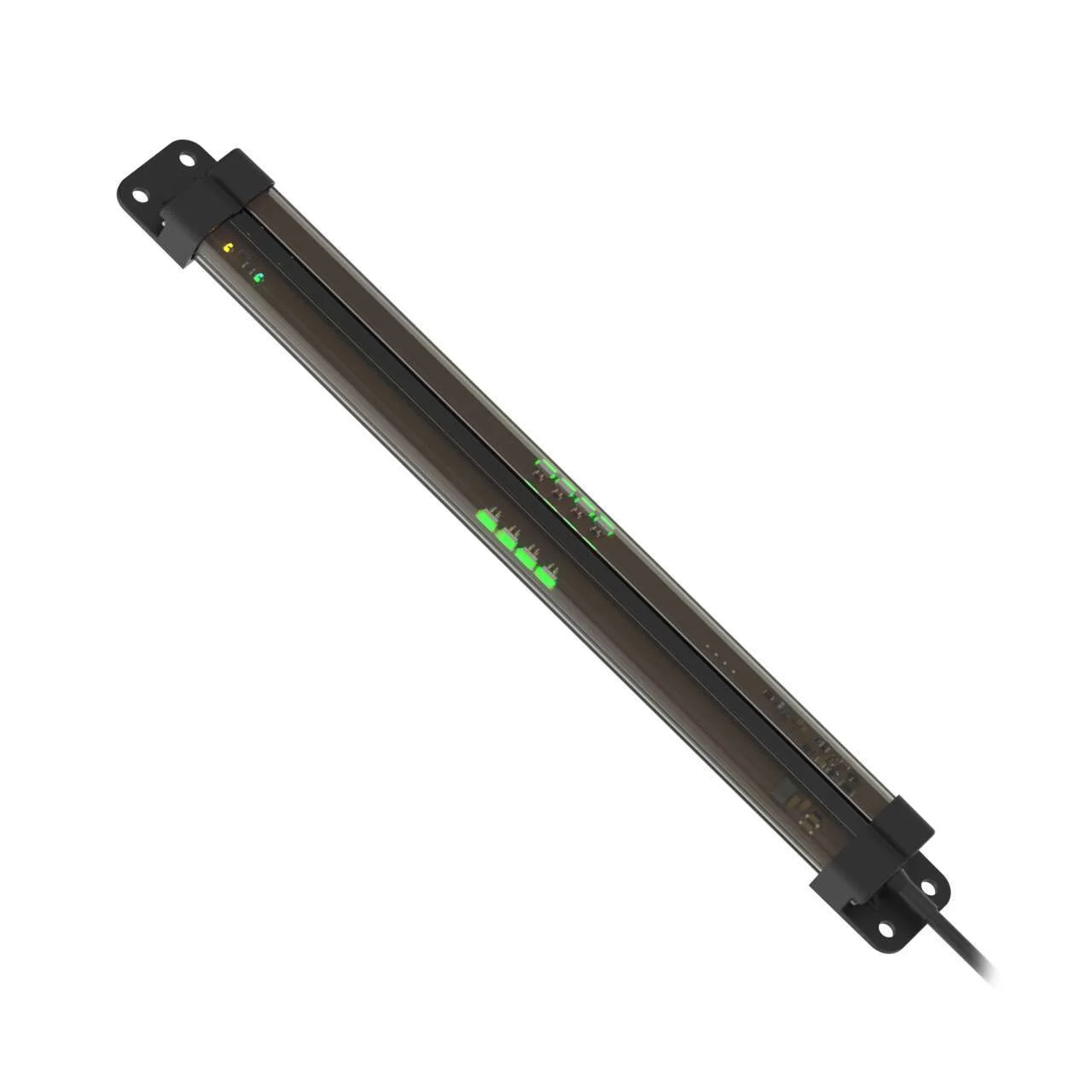

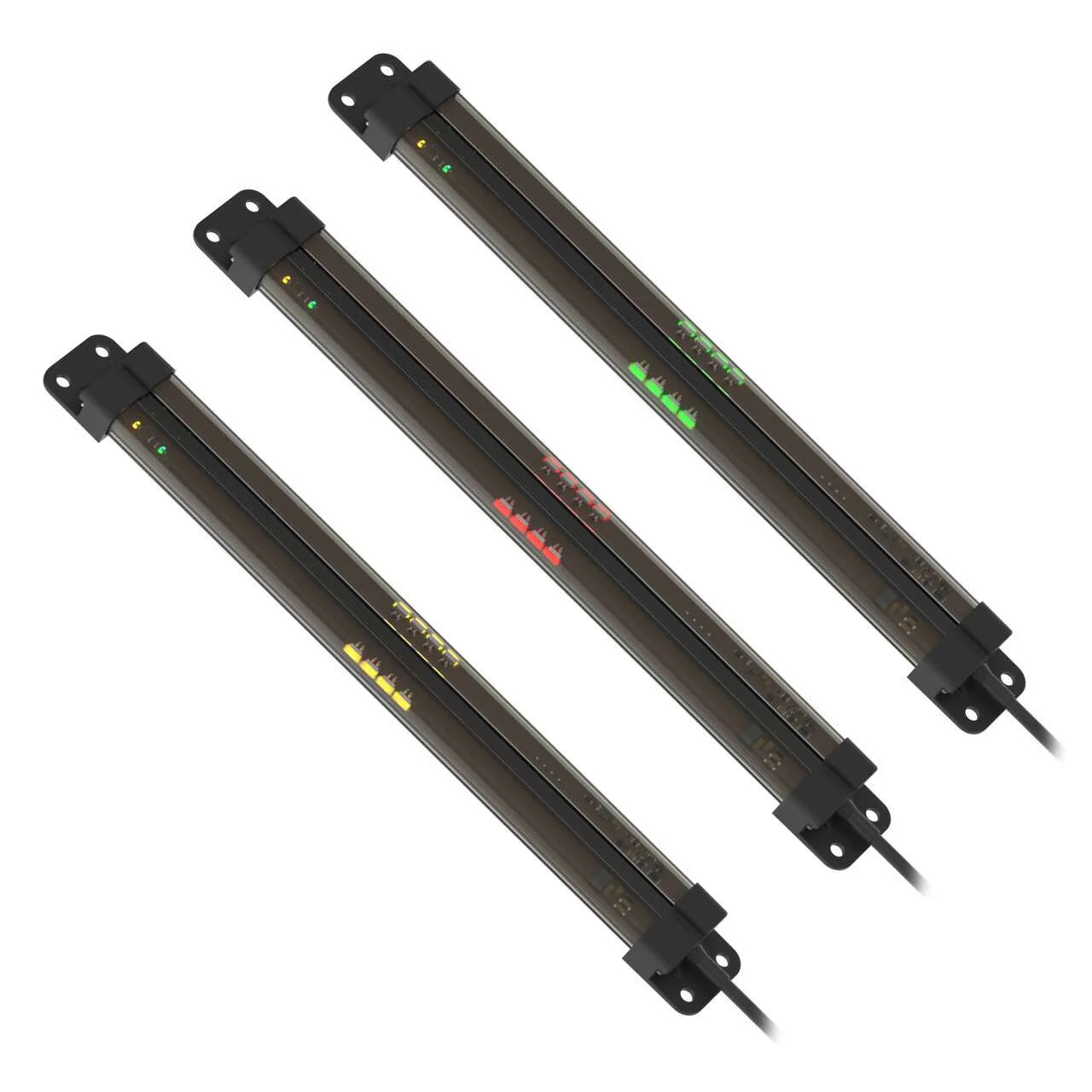

Banner Engineering PVS28D225QP
PVS Series: Parts Verification Sensor
Length: 225 mm; Voltage: 12-30 V dc
Housing: Polycarbonate; IP54
Range: 20 to 500 mm; Outputs: Bimodal, NO, Momentary
150…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PVS Series: Parts Verification Sensor
Length: 225 mm; Voltage: 12-30 V dc
Housing: Polycarbonate; IP54
Range: 20 to 500 mm; Outputs: Bimodal, NO, Momentary
150 mm (6 in) 5-pin M12 PVC Pigtail QD
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Cable Length (M) | 0.15 |
| Ip Rating | IP54 |
| Display | No |
| Supply Voltage | 12-30 V dc |
| Item Status | RELEASED |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Diffuse/Background Suppression |
| Housing Style | Flat Mount – Array |
| Primary Housing Material | Polycarbonate |
| Indication | No |
| Illumination | No |
| Actuation | Yes |
| Activation Function | Optical |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number Of Colors | 2 |
| Product Size (Mm) | 225 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Connection | Pigtail QD |
| Lumens Color 1 | 12.0 |
| Color 1 Wavelength/Color Temp/Coordinates | 525 nm |
| Color Option 2 | Red |
| Lumens Color 2 | 2.5 |
| Color 2 Wavelength/Color Temp/Coordinates | 620 nm |
| Color Option 3 | Yellow |
| Lumens Color 3 | 2.5 |
| Color 3 Wavelength/Color Temp/Coordinates | 576 nm |
| Max Current Color (Ma) | 110 |
| Number Of Input Pins/Conductors | 5 |
| Operation | Normally Open/Normally Closed |
| Output Type | Bipolar (NPN or PNP – user selectable) |
| Input Type | Bimodal (PNP/NPN) |
| I/O Block Compatible | No |
| Max Input Response Time (Ms) | 40 |
| Max Output Response Time (Ms) | 120 |
| Maximum Sensing Distance (Mm) | 500 |
| Array Length (Mm) | 225.0 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 270 x 30.0 x 15.0 |
| Beam Spacing (Mm) | 60.0 |
| Number Of Beams | 2 |
| Eye Shield | No |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -20 |
| Storage Temp (C) | -40 to 70 |
| Primary Housing Color | Black |
| Button Operation | Momentary |
| Primary Window Material | Polycarbonate |
| Sensing Resolution (Mm) | 20 |
| Feature: Washdown Rated | No |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Wireless | No |
| U S B | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 09/22/2023 |
