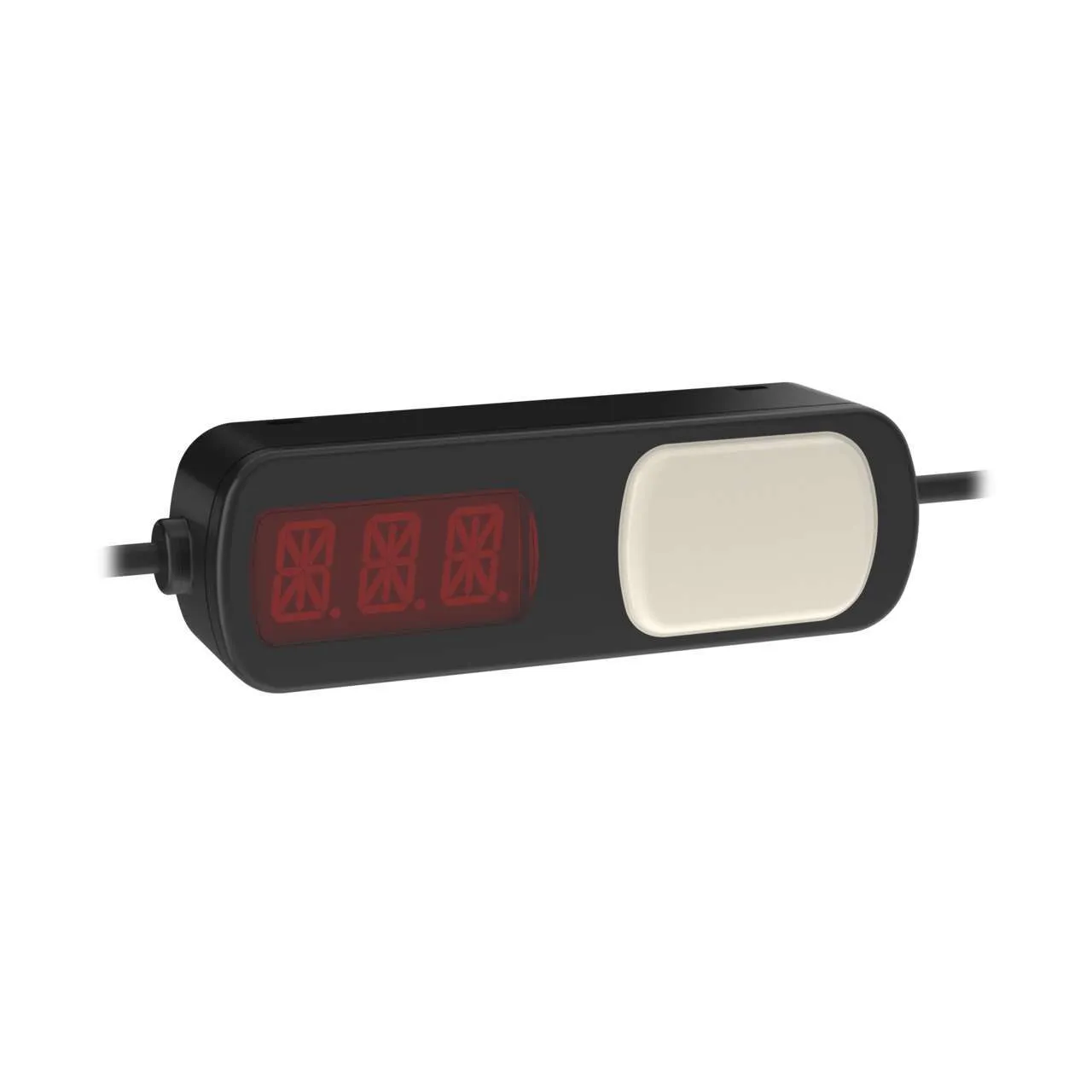

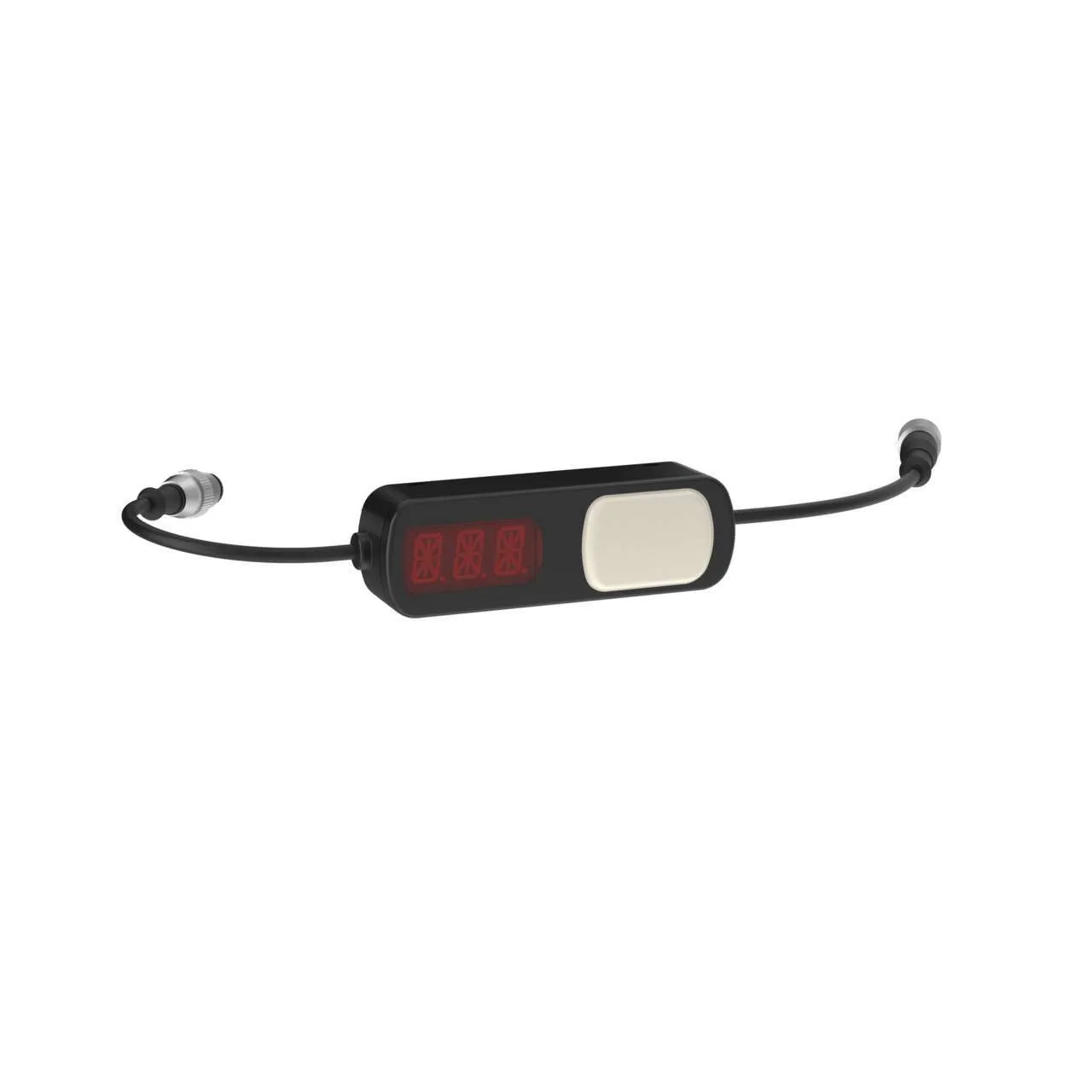

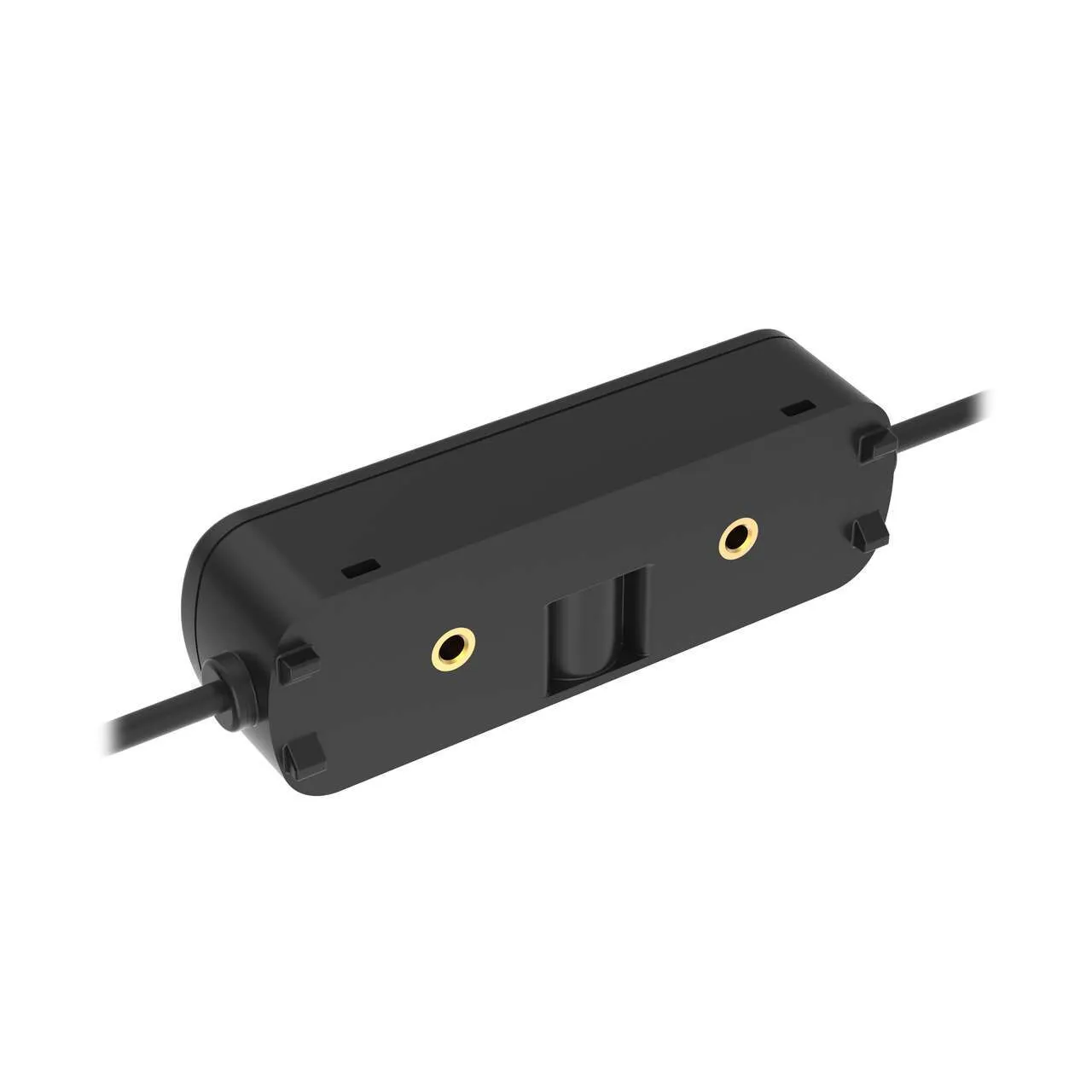

Banner Engineering PTL110S-LD3-QP300

PTL110 Node. Part number: 806592. model: PTL110S-LD3-QP300. part_number: 806592. list_price: 196 USD. is_new: 0. is_in_stock: 1. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/206183.pdf. BAN_CommProtocols_IOLink: —. BAN_CommProtocols_ModbusRTU: Yes. BAN_PICK_IQ: Yes. BAN_CommProtocols_ProEditor: —. BAN_Product_Size: 110. BAN_IPRating: IP54. BAN_Connection: Pigtail QD. BAN_LI_EnvironRating: IP54. BAN_Function: —. BAN_Mounting_Thread: No Thread. BAN_Supply_Voltage: 10-30 V dc. BAN_Housing_Style: Flat Mount – Flat Window. BAN_CableLength: 0.3. BAN_Washdown_Rated: No. Power: DC. PFM Input: No. Non-Illuminated: No. Cable Length (m): 0.3. IP Rating: IP54. Display: Yes. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Housing Style: Flat Mount – Flat Window. Primary Housing Material: ABS. Indication: Yes. Illumination: No. Mounting Thread: No Thread. Color Input Control: Communication Protocol. Number of Colors: 14. Product Size (mm): 110. Color Technology: RGB Configurable. Color Option 1: RGB. Animation Option 1: Modbus Controlled. Connection: Pigtail QD. Quick Disconnect Type: M12. Max Current Color (mA): 155. Pick-to-Light Function: Programmable. Number of Input Pins/Conductors: 4. Output Type: Communication Protocol. I/O Block Compatible: No. Physical Dimensions (LxWxH or DxH mm): 110.0 x 35.0 x 33.1. Environmental Rating: IP54. Eye Shield: No. Max Op. Relative Humidity Non-Condensing (%): 90% @ 50°C. High Temperature (up to 100 C): 50. Min Op. Temperature (C): -40. Primary Housing Color: Black. Primary Window Material: Polycarbonate Diffused. PICK-IQ (Modbus RTU): Yes. Feature: Washdown Rated: No. Feature: Audible: No. Feature: Cascade: No. Feature: Chemical Resistant: No. Multi-Color Device: Single Color On. Application: Traffic Light: No. Feature: Quick Disconnect: Yes. Modbus RTU: Yes. Wireless: No. USB: No. EPLAN Status: Published. EPLAN Original Sent Date: 09/22/2023
